© SPX Corporation
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7290
Fax: (507) 455-7063

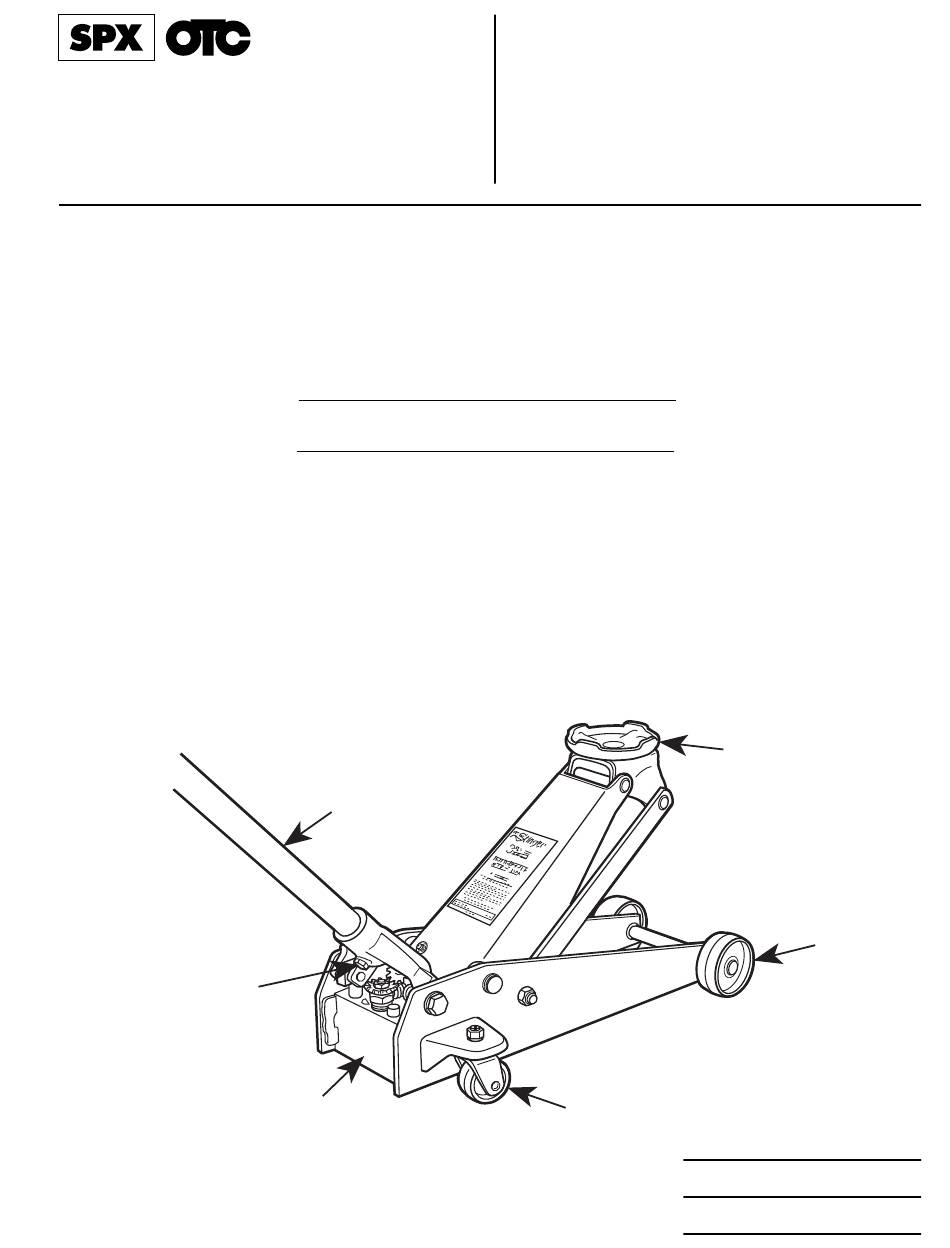

Service Jack
No. 1503 Max. Capacity: 2-1/2 Tons
No. 1504 Max. Capacity: 3 Tons
Replacement Items for 1503 & 1504
Item
Part
No.
No.
1
504887
2
504884
3
504885
511501
4
504886
5
504883
511507
Not shown
512223
6
512224
4
6
5
Parts List and
Operating Instructions
for:
Description
Saddle
Caster
Wheel (for 1503)
Wheel (for 1504)
Handle
Hydraulic Unit (for 1503)
Hydraulic Unit (for 1504)
Handle Return Spring
Handle Retaining Bolt
2
Form No. 106461
1
3
Sheet No.
1 of 2
Issue Date:
Rev. C, 6-4-2003
1503
1504
Advertisement
Related Manuals for SPX 1503
Summary of Contents for SPX 1503
- Page 1 Order Entry: (800) 533-6127 for: 1503 Fax: (800) 283-8665 1504 International Sales: (507) 455-7290 Fax: (507) 455-7063 Service Jack No. 1503 Max. Capacity: 2-1/2 Tons No. 1504 Max. Capacity: 3 Tons Replacement Items for 1503 & 1504 Item Part Description 504887 Saddle...
- Page 2 Parts List & Operating Instructions Form No. 106461, sheet 1 of 2, back Safety Precautions Caution: To prevent personal injury and damage to equipment, • Read, understand, and follow all instructions, including ASME PALD Part 10 for service jacks. If the operator cannot read English, operating instructions and safety precautions must be read and discussed in the operator’s native language.
- Page 3 ANSI B30.1. It is strongly recommended that the user read ANSI B30.1. The document may be ordered from the American Society of Mechanical Engineers, United Engineering Center, 345 East 47th, New York, New York 10017. Sheet No. 2 of 2 Issue Date: Rev. C, 6-4-2003 © SPX Corporation...
- Page 4 Parts List & Operating Instructions Form No. 106461, sheet 2 of 2, back Troubleshooting Guide Repair procedures must be performed in a dirt-free environment by qualified personnel who are familiar with this equipment. CAUTION: All inspection, maintenance, and repair procedures must be performed when the jack is free of a load (not in use).
