Summary of Contents for Ozito PXBIS-320

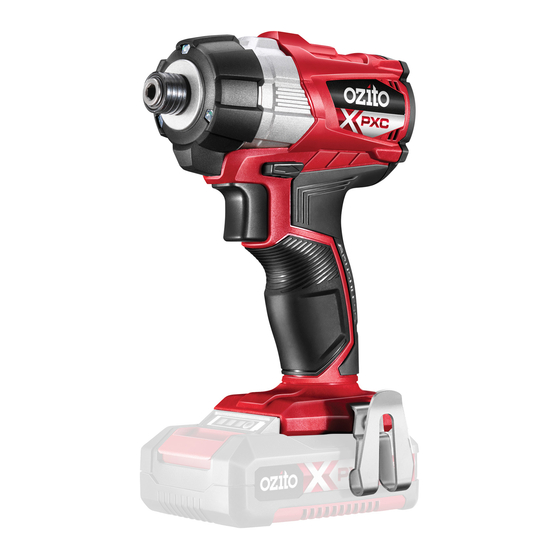

- Page 1 WHAT’S IN THE BOX Brushless Impact Driver BRUSHLESS IMPACT DRIVER INSTRUCTION MANUAL SPECIFICATIONS Voltage: No Load Speed: 0-2900/min Chuck Size: 6.35mm (1/4”) Hex Impact Rate: 3000bpm Max. Torque: 180Nm Weight: 1.2kg Battery & Charger ozito.com.au sold separately PXBIS-320...
- Page 2 BATTERY & CHARGER (sold separately) 1 Align the ribs of the battery with the recess at the base of the This tool is compatible with all battery and chargers from the Ozito driver handle and push in until it Power X Change Range.
- Page 3 2. BATTERY & CHARGING (sold separately) Charging your lithium ion battery - Eco Charger CAUTION: THE CHARGER FOR THIS PRODUCT SHOULD 1 Connect the charger into a mains power outlet. BE PROTECTED BY A RESIDUAL CURRENT DEVICE (RATED AT 30MA OR LESS). 2 The charger LED will flash green showing power is being supplied Charging your lithium ion battery - Fast Charger...
- Page 4 6 Slowly increase pressure on trigger to appropriate torque for circumstances until screw or bolt is tightened. Note: Do not force the driver or apply side pressure to elongate the hole. Let the impact driver do the work. PXBIS-320...
- Page 5 • When not in use, the impact driver should be stored in a dry, frost free location not within the reach of children. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the impact driver by an unauthorised person or by mishandling of the CARING FOR THE ENVIRONMENT impact driver.
- Page 6 The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. This tools charger is double insulated;therefore no earth wire is required.
- Page 7 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0316...
