Summary of Contents for Ozito IDL-018
-
Page 2: Specifications
SPECIFICATIONS – MODEL NO. IDL-018 Battery power: Charge time: 3 – 5 hours No load speed: 0-2000/min Impact speed: 0 - 3000bpm Torque: 120Nm Drive: 6.35mm ( ”) hex shank Battery: 18V - 1.3Ah Lithium Ion Weight with 1 battery: 1.35kg... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 IMPACT DRIVER SAFETY WARNINGS…………………… Page 7 LITHIUM ION BATTERY AND CHARGER SAFETY FEATURES…………….………………………… Page 9 CHARGING YOUR LITHIUM ION BATTERY..………… Page 10 ASSEMBLY...….….….….….….….….….….….….………... -
Page 4: Introduction

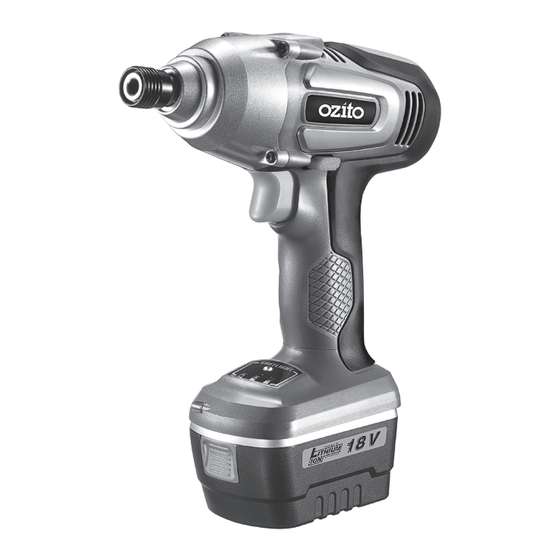

Driver. We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Lithium Ion Cordless Impact Driver IDL-018 is designed to drive and remove screws and to tighten and loosen nuts and bolts quickly and efficiently. -
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 7 BATTERY AND CHARGER SAFETY WARNINGS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY CHARGER. • Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack. Danger! If the battery pack case is cracked or damaged, do not insert it into charger.
-
Page 8: Impact Driver Safety Warnings
BATTERY AND CHARGER SAFETY WARNINGS • The longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC or above 40ºC. This is important and will prevent damage to the battery pack. - Page 9 IMPACT DRIVER SAFETY WARNINGS! (cont.) • Secure the work piece. A work piece clamped with clamping devices or in a vice, is held more secure than by hand. • One-handed operation is extremely dangerous. Hold the unit firmly with both hands when operating the tool.
-
Page 10: Lithium Ion Battery And Charger Safety Features
LITHIUM ION BATTERY AND CHARGER SAFETY Over Charging Protection This feature ensures that the battery (6) is never overcharged. When the battery (4) has reached its full charge capacity the charger will shut off protecting the internal components of the battery (6) from being damaged. Over Discharge Protection The battery (6) includes an over discharge protector. -
Page 11: Charging Your Lithium Ion Battery
CHARGING YOUR LITHIUM ION BATTERY The batteries (6) have been shipped in a low charge condition, and requires charging prior to use. • Connect the charger jack (9) to the charging cradle (10) (Fig. 1). • Plug the charger adaptor (8) into a mains power outlet. Charger •... - Page 12 CHARGING YOUR LITHIUM ION BATTERY (cont.) Subsequent Charges • After normal usage, approximately 3-5 hours of charging time is required to fully recharge the battery (6). • If the battery (6) is completely discharged, 5 hours or longer of charging time will be required to fully recharge it.
-
Page 13: Assembly
ASSEMBLY Always ensure the forward/reverse selector (3) is in the lock position before removing or inserting the battery (6). By pushing the forward/reverse lever (3) into the middles of both forward and reverse the variable speed switch (2) will be in the lock position. Installing the Battery •... -
Page 14: Impact Driver Operation
IMPACT DRIVER OPERATION WARNIING! Remove the battery (4) from the tool before inserting or removing a bit or when making any adjustments to your tool. Installing a driver bit Pull the driving bit retaining ring (1) forward and insert the hex shank of the appropriate driver bit into the driving bit retaining ring (1) (Fig. - Page 15 IMPACT DRIVER OPERATION (cont.) Installing a socket adaptor and socket (not included) Pull the driving bit retaining ring (1) forward and insert the hex shank of the socket adaptor into the retaining ring (1). (Fig. 8). Fig. Release the driving bit retaining ring (1) and slowly pull the socket adaptor forward until you feel the ring engage with the groove in the adaptor indicating that the adaptor is locked in position.
- Page 16 IMPACT DRIVER OPERATION (cont.) Changing the direction of rotation • The direction of rotation can be changed with the forward/reverse selector (3). This is located above the variable speed trigger switch (2) (Fig. 13). • To select the forward driving or tightening position, push the forward/reverse selector (3) hard left.
-
Page 17: Maintenance
• Blow out the ventilation slots with compressed air periodically. Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 18: Spare Parts
SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. 18V Battery Pack SPCDL018-37 Charging Stand SPCDL018-38 Charging Adaptor SPCDL018-39... -
Page 19: Pack Contents
* Accessories Included 1 x Socket Adaptor 1 x Slow Charger 1 x Instruction manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 20: Warranty
DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. The Lithium Ion battery is covered by a 12 month warranty.
