CORDLESS
IMPACT
DRIVER
12V Lithium Ion
INSTRUCTION MANUAL

SPECIFICATIONS

Input:
12V
Chuck Size:
6.35mm (1/4")
No Load Speed:
0-2000/min
Impact Rate:
0-3000/min
Max. Torque:
80Nm
Battery Power:
1.3Ah Li-ion
Charge Time:
3-5 Hours
Weight:
1kg
ozito.com.au
WHAT'S IN THE BOX

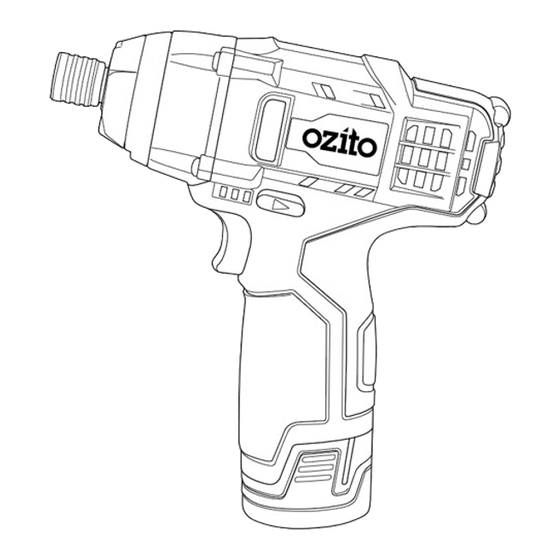

Cordless Impact Driver
Charging Adaptor
Charging Cradle
LID-3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LID-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito LID-3000

  • Page 1 DRIVER 12V Lithium Ion Accessories x 7 INSTRUCTION MANUAL SPECIFICATIONS Input: Chuck Size: 6.35mm (1/4”) No Load Speed: 0-2000/min Impact Rate: 0-3000/min Charging Adaptor Max. Torque: 80Nm Battery Power: 1.3Ah Li-ion Charge Time: 3-5 Hours Weight: ozito.com.au Charging Cradle LID-3000...
  • Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION CORDLESS IMPACT DRIVER 1. BATTERY 1 Drive Bit Retaining Ring 4 Variable Speed Trigger 2 LED Light 5 Battery 12V WARNING! THE POWER SUPPLY FOR THIS CHARGER 3 Battery Charge Indicator 6 Forward/ Reverse Lever SHOULD BE PROTECTED BY A RESIDUAL CURRENT DEVICE (RATED AT 30MA OR LESS).
  • Page 3 OPERATION 2. INSTALLING ACCESSORIES 3. INSTALLING ACCESSORIES CONT. Installing a Socket Adaptor Installing a Hex Drive Socket or Driver Bit 1. Pull the drive retaining 1. Pull the drive retaining ring forward. ring forward. 2. Insert the hex shank of 2.
  • Page 4 7. Slowly increase pressure on trigger to appropriate torque for reverse rotation, push fwd/rev lever hard right. circumstances until screw or bolt is tightened. Note: Do not force the driver or apply side pressure to elongate the hole. Let the impact driver do the work. LID-3000...
  • Page 5 Blow out the ventilation slots with compressed air periodically . Ensure the battery is properly charged. It will take 4-5 charging cycles Note: Ozito Industries will not be responsible for any damage or before the battery reaches optimum charge and run time.
  • Page 6 Model No. LID-3000 Tool: SPARE PARTS Model No. The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. 12V Li-ion Battery Pack...
  • Page 7 ELECTRICAL SAFETY WARNING! The power supply for this product should be protected by a residual current device (rated at 30mA or less). A When using mains-powered tools, basic safety precautions, including the residual current device reduces the risk of electric shock. following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.
  • Page 8 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0614...
