Please follow the installation steps below to set up your M510E / M510W IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
Install the hardware and connect all cables. See P.2
Use the software CD to install Intelligent IP Installer.
Microsoft OS:
Access the IP Camera using Intelligent IP Installer. See P.3
Mac OS using Safari Browser. See P.5
Change lighting environment setting. See P.6
Change the Web Interface into your preferred language. See P.6
Use IP Camera via Mobile Phone. See P.6
Wireless Setting. ( M510W Model ). See P.7
Windows Live Messenger Setting. See P.7
Access to Internet via Static IP, Dynamic IP or both. See P.9
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com
Package Contents
Camera
Quick Installation Guide
Software CD
Component Pack
Adaptor

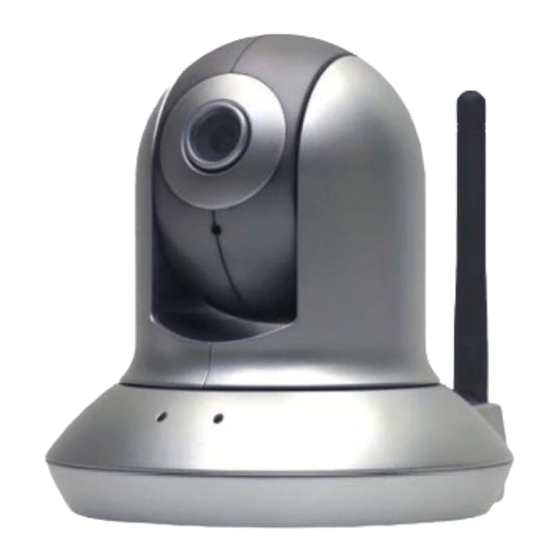

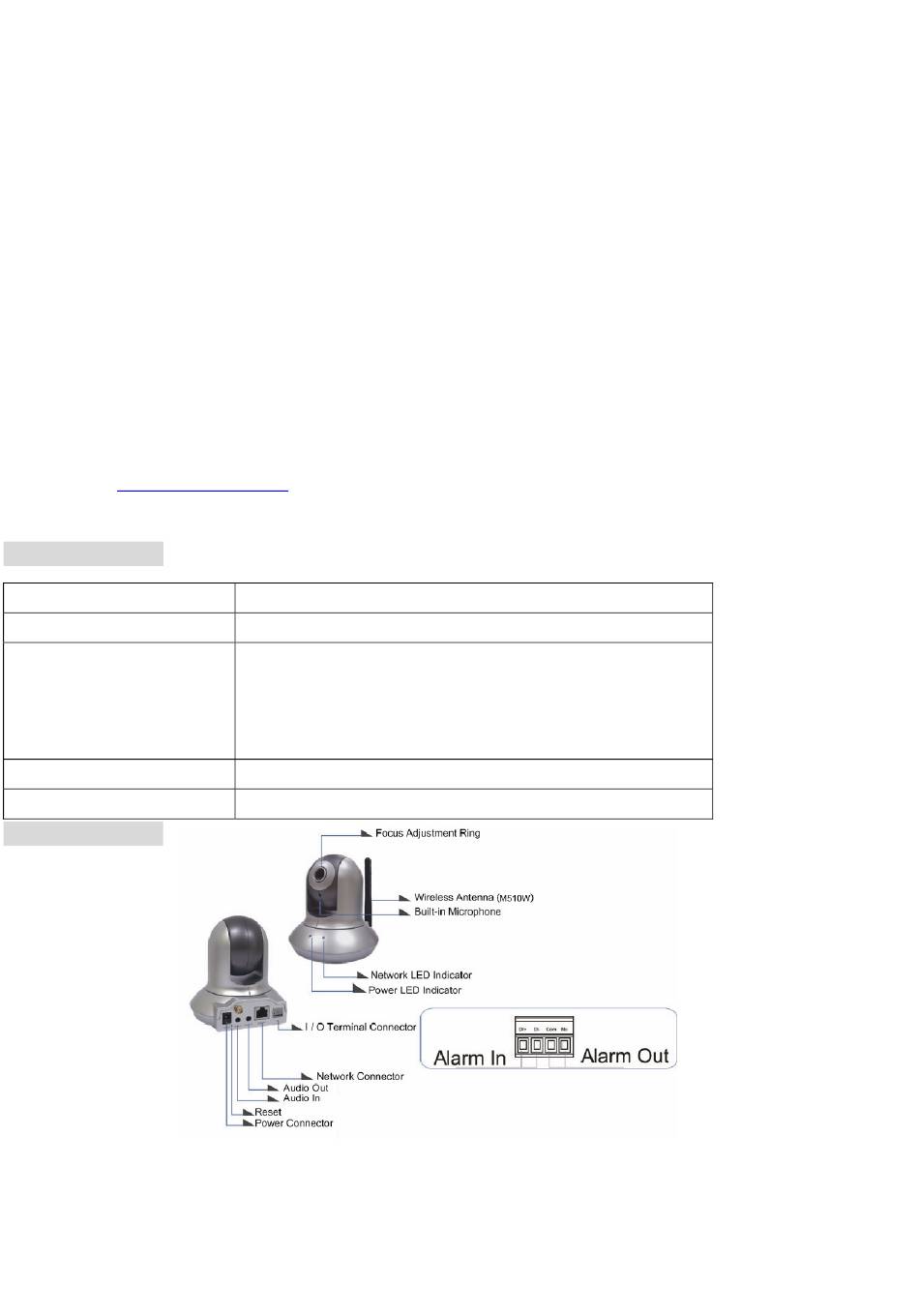

Physical overview
Focus Adjustment Ring: Adjust the focus ring to get a clear image.
Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 10
seconds to set the settings back to factory default
Zavio M510E / M510W Quick Installation Guide
M510E / M510W IP Camera
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Bracket, two packs of screws , Antenna (M510W model)
12V DC, max 6W
See P.3
1
