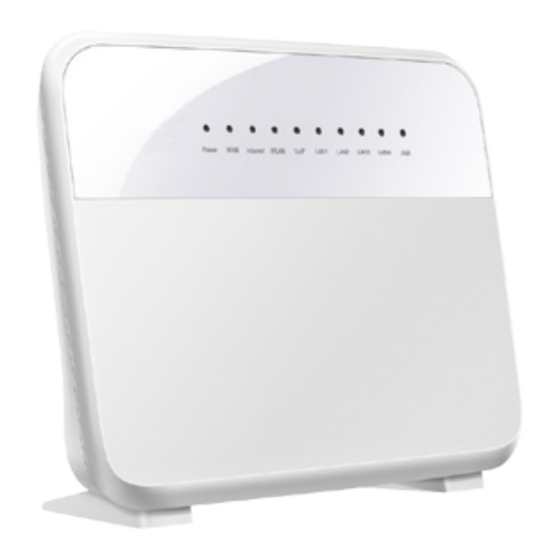

TPG HG658 Configuration Manual

Modem Configuration Guide

HG658

Configuring in Layer2 PPPoE for Windows 7

IMPORTANT MESSAGE

Your modem has already been pre-configured, you do not need to follow each step of the set-up guide but should retain

this document in case you need to manually configure your equipment.

To configure your PC/Laptop with your wireless password including changing your wireless password, please

proceed to step 4.

Contents

1. Physical Connection

1. PHYSICAL CONNECTION

Have your router powered on and connected directly to your PC via Ethernet Cable before you begin, as these

instructions are based on wired Ethernet connection

2. NETWORK CONFIGURATION

PPPoE connection does not require you to have an IP address or DNS settings manually encoded on your network card.

PPPoE connection uses authentication to establish the Internet connection and once connected your modem will be

assigned an IP and DNS settings from TPG.

To begin, your PC needs to receive a private IP address from the router. Most routers have DHCP enabled by default that

will take care of this.

To ensure your Network Card is ready for this, please follow the following steps:

A. Click Start -> Control Panel -> Network and Internet ->

Network and Sharing Center -> Change adapter settings

B. Right click on Local Area Connection and select Properties

HG658

Table of Contents

Do you have a question about the HG658 and is the answer not in the manual?

Page 1 PPPoE connection uses authentication to establish the Internet connection and once connected your modem will be assigned an IP and DNS settings from TPG. To begin, your PC needs to receive a private IP address from the router. Most routers have DHCP enabled by default that will take care of this.
Page 2 Modem Configuration Guide HG658 C. Click on Internet Protocol Version 4 (TCP/IPv4), and then click Properties D. Ensure “Obtain an IP address automatically” is selected E. Ensure “Obtain DNS server address automatically” is selected F. Click OK 3. CONFIGURING ROUTER A.
Page 3 SSID (name for the wireless connection): TPG-xxxx (xxxx is a random 4 digit alphanumeric code printed on the sticker underneath your modem) Authentication Type: WPA-PSK/WPA2-PSK Encryption: TKIP/AES Pre Shared Key: initially configured to be the same as your TPG password. You can enter your own text as an option.
Page 4 E. Click OK. F. You should now see your status as ‘Connected’. 5. IPTV Your modem is pre-configured with TPG IPTV settings. Should you require further assistance please contact the TPG Helpdesk on 13 14 23 option 2. 6. CHANGE OF PASSWORD For security purposes we highly recommend that you change your password if you are using your default or if you believe your password security has been compromised.
