TPG FRITZ! 7490 Setup Manual

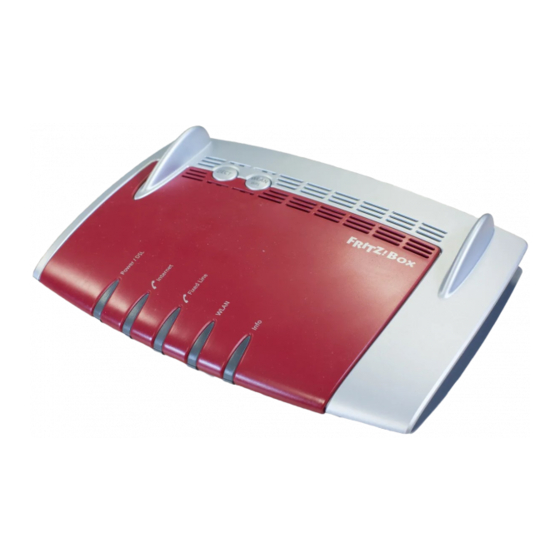

FRITZ! Box 7490

Please follow the steps below to set up your FRITZ! Box 7490.

1. Ensure your NBN Connection Box is turned on.

2. Plug an Ethernet cable from the UNI-D1 port on your NBN Connection Box into the

yellow LAN 1 port on your FRITZ! Box modem.

If UNI-D1 doesn't work, try each UNI-D port.

3. Using the supplied power cable, connect the FRITZ! Box's Power port to an electrical

outlet and turn it on.

4. You can connect devices such as PC desktops, laptops or gaming consoles by plugging

Ethernet cables from the devices to any of the three remaining yellow LAN ports, or you

can connect devices via WiFi.

6. On the Welcome screen click Cancel, and then click Exit Wizard to exit the Setup

Wizard.

7. Select Internet, then click Account Information.

Modem Setup Guide – NBN FTTP

Table of Contents

Do you have a question about the FRITZ! 7490 and is the answer not in the manual?

Page 1 Modem Setup Guide – NBN FTTP FRITZ! Box 7490 Please follow the steps below to set up your FRITZ! Box 7490. 1. Ensure your NBN Connection Box is turned on. 2. Plug an Ethernet cable from the UNI-D1 port on your NBN Connection Box into the yellow LAN 1 port on your FRITZ! Box modem.
Page 2 9. Under "Connection", select External modem or router. 10. Under "Operating Mode", select Establish own connection to the internet. 11. Under "Account information", make sure that Is account information required? is set to Yes. 12. Enter your TPG Username and Password.
Page 3 Maintain permanently (recommended for flat rates). 15. Click Apply. Once you receive notification that your TPG NBN service is active, your FRITZ! Box 7490 should now be online. If you are still having issues, please call us on 1300 997 271 for...
