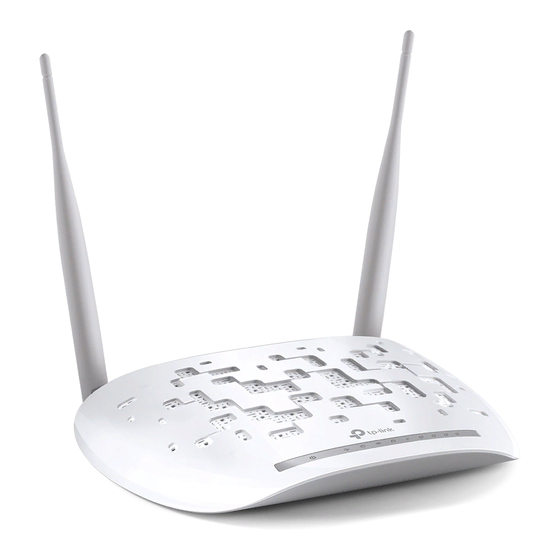

TPG TD-W9970 Configuration Manual

(adsl2+ home bundle)

Modem Configuration Guide

TD-W9970 (ADSL2+ HOME

Windows 10

IMPORTANT MESSAGE

Your modem has already been pre-configured, you do not need to follow each step of the set-up guide but should retain

this document in case you need to manually configure your equipment.

To configure your PC/Laptop with your wireless password including changing your wireless password, please

proceed to step 4.

Contents

1. Physical Connection

1. PHYSICAL CONNECTION

Have your modem powered on and connected directly to your PC via Ethernet Cable before you begin, as these

instructions are based on wired Ethernet connection

For further information, please see wiring diagram and instructions for your ADSL2+ Home Bundle service below.

•

ADSL2+ Home Bundle Wiring Diagram

2. NETWORK CONFIGURATION

PPPoE connection does not require you to have an IP address or DNS settings manually encoded on your network card.

PPPoE connection uses authentication to establish the Internet connection and once connected your modem will be

assigned an IP and DNS settings from TPG.

To begin, your PC needs to receive a private IP address from the modem. Most modems have DHCP enabled by default

that will take care of this.

BUNDLE)

TD-W9970

Table of Contents

Do you have a question about the TD-W9970 and is the answer not in the manual?

Page 1 PPPoE connection uses authentication to establish the Internet connection and once connected your modem will be assigned an IP and DNS settings from TPG. To begin, your PC needs to receive a private IP address from the modem. Most modems have DHCP enabled by default...
Page 2 Modem Configuration Guide TD-W9970 To ensure your Network Card is ready for this, please follow the following steps: A. Click Start -> Settings -> Network and Internet -> Ethernet -> Change adapter options B. Right click on Ethernet, and then click Properties C.
Page 3 Modem Configuration Guide TD-W9970 3. CONFIGURING MODEM A. Open your browser and in the address bar type http://192.168.1.1 and press Enter. B. Enter admin for both the username and password and click Login. If you have changed the login credentials, please enter the current username and password for your modem interface.
Page 4 Modem Configuration Guide TD-W9970 F. Enter your TPG Username and Password. Click Next G. Click Next to continue. H. You can change your Wi-Fi details or keep the default settings. The default Wi-Fi SSID (Wireless Network Name) is WiFi-XXXX (XXXX is a random 4 digit alphanumeric code printed on the sticker underneath your modem).
Page 5 PLEASE NOTE: Each time your modem is powered on, it will initialize this automated authentication process after which your modem will receive a public IP address (fixed or dynamic depending on your plan) and DNS settings from TPG. tpg.com.au/support 13 14 23...
