Crestron SP-MB Installation Manual

Infrared (IR) Sprayer: SP-MB
The SP-MB has been developed as an IR sprayer for the SmartPresenter™ system. If
placed within the defined range, it can control multiple IR devices by "spraying" the
area with IR signals. This eliminates the need to attach an IR probe to each device.
Specifications

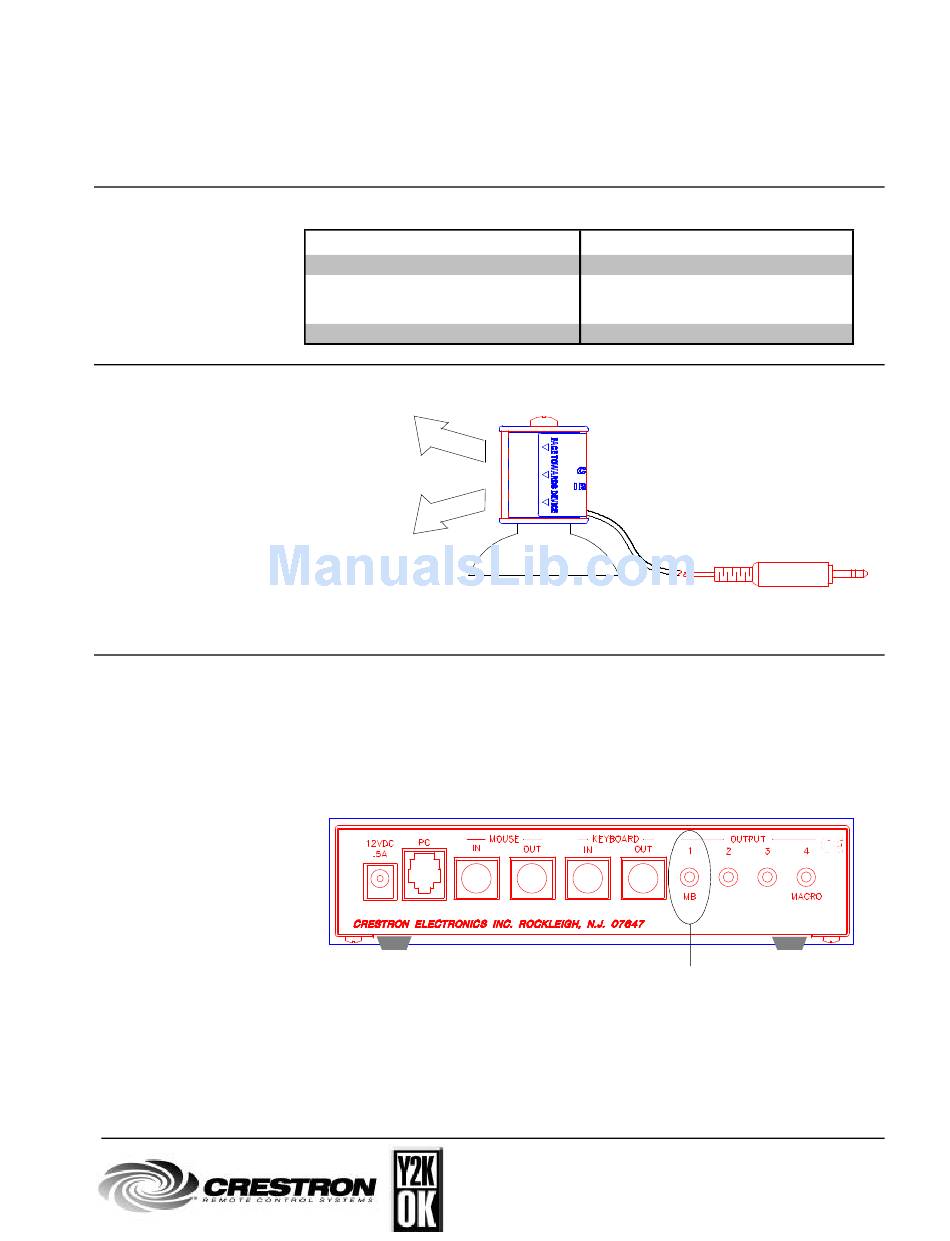

Physical View
(120 degree signal cone)
Installation
NOTE: Pulling on the SP-MB
to reposition it may damage the
suction cup. Break suction before
repositioning.
Dimensions: Emitter w/ Suction Cup 1.90"/48mm (H) x 1.75"/44mm (DIA)
Weight:
Connector: Type
Cable Length
Infrared (IR): Spray Pattern
To IR
Controlled Equipment
Note: Arrows shown on label
The SP-MB sprayer must be plugged into the SP-1 output #1. The SP-1 default
sprayer mode directs all IR commands out of output #1. To enable the default
sprayer mode, power up the SP-1 while depressing button #1. For other SP-MB
modes, refer to the SP-1 Operations Guide (DOC. 5712) for detailed information on
configuring the SP-1 for use with the SP-MB.
SP-1: Rear View
The SP-MB sprayer must be placed within 6 feet or less of the devices being
controlled. IR signals are outputted within a 120 degree angular cone. Affix the
unit's suction cup to a flat, smooth surface. If a device is not receiving IR signals,
reposition the SP-MB. To reposition, break the suction by lifting the edge of the
suction cup with fingernail or similar object.
1.5 oz.
3.5mm mono mini
3' / 91.44cm
120 degree cone
SP-MB SIDE VIEW
must point toward IR devies
Plug SP-MB into SP-1 Output #1
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON / 201.767.3400
Fax: 201.767.7576 / BBS: 201.767.5506
www.crestron.com
Specifications subject
to change without notice.
Doc. 5747
12.98
