TS100 PRO Cable Fault Finder
Users Guide
Physical Characteristics
See Figure 1.
Power key, which turns the tester on and off.
Four-digit LED display shows test results.
The BT FILTER LED is on when the bridge tap filter
is on. The filter causes the tester to ignore the first
reflection so it can find a second bridge tap.
The VOLTAGE LED is on when the tester detects DC
voltage, and flashes when the tester detects AC
voltage.
Connector for the test leads (female BNC).
Caution
To prevent damage to the tester from static
discharge, keep the test leads connected to
the BNC connector at all times. Do not touch
the BNC connector with your hand.
The BRIDGE TAP LED is on when the tester detects
a bridge tap. The four-digit LED display shows the
distance to the bridge tap or the length of the
bridge tap.
The BT LENGTH LED is on when the four-digit LED
display shows the length of the bridge tap.
The battery compartment is on the back of the
tester (the label on the battery cover shows
common values of VOP).
Y Z
: Up/down keys let you scroll through results
and configure the tester.
4

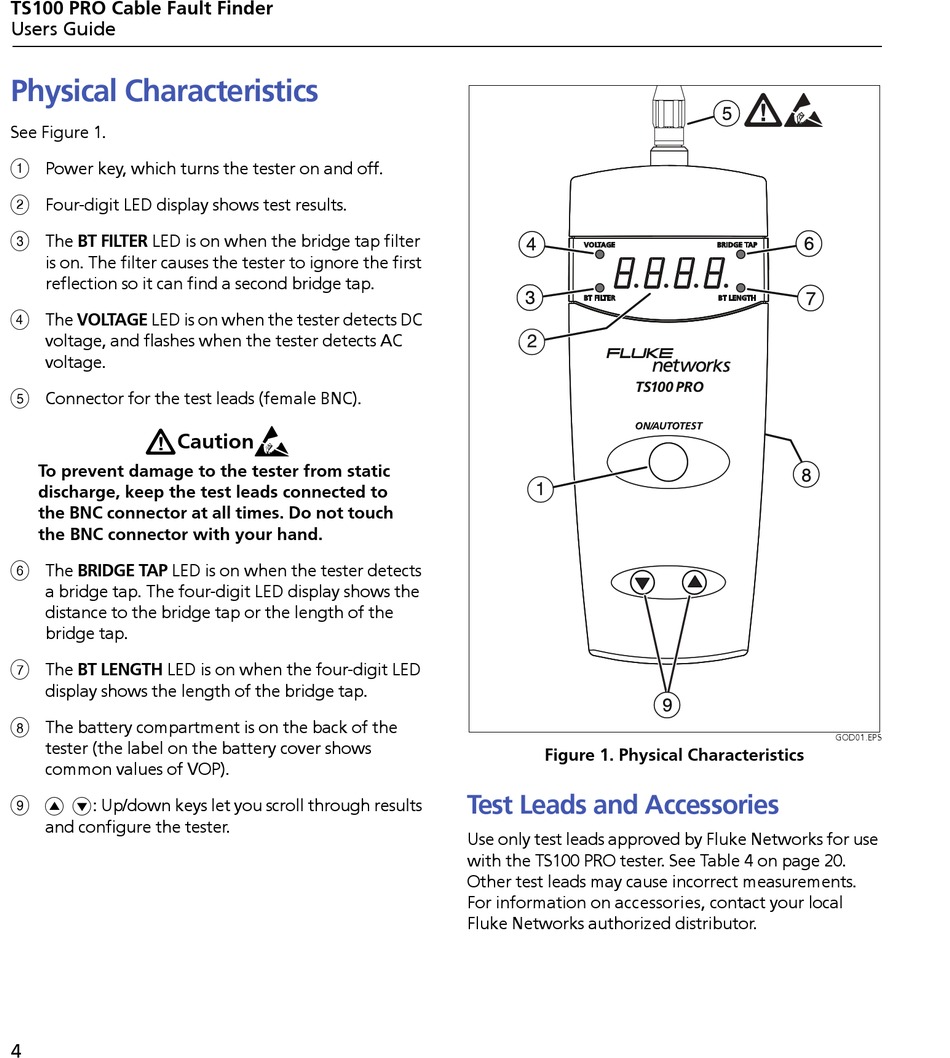

Figure 1. Physical Characteristics
Test Leads and Accessories
Use only test leads approved by Fluke Networks for use
with the TS100 PRO tester. See Table 4 on page 20.
Other test leads may cause incorrect measurements.
For information on accessories, contact your local
Fluke Networks authorized distributor.
GOD01.EPS
