Rack Mount Kit
Installation Instructions

Component Mounting Locations

The CNXRMAK can accommodate up to three C2N-HBLOCKs or CNPWS-75s or any combination
of each. Three sets of mounting holes have been drilled into the mounting plate for each component.
As shown below, C2N-HBLOCK (s) and/or CNPWS-75(s) are mounted to the holes in the appropriate
location(s).

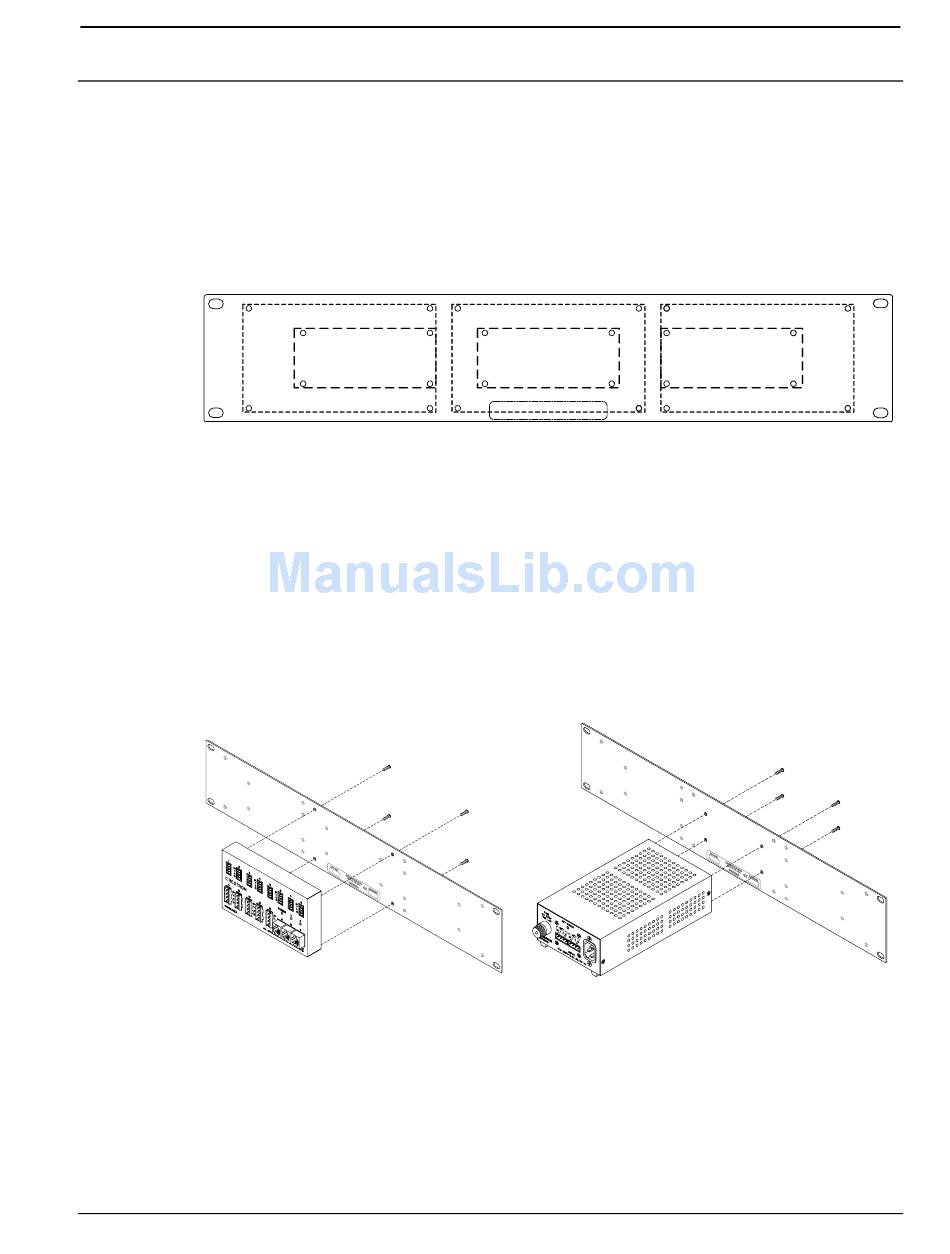

C2N-HBLOCK and CNPWS-75 Mounting Locations

Component Mounting and Rack Installation

Refer to the procedure below and complete the following steps for proper installation of a
C2N-HBLOCK (C2N-HBLOCKmounting plate must be removed) or CNPWS-75 onto the
CNXRMAK and then into a rack.
C2N-HBLOCK Installation
2 • Rack Mount Kit: CNXRMAK
C2N-HBLOCK
CNPWS-75
1. Position the CNXRMAK mounting plate so that the rear of the plate faces the rear of the
component. (The barcode label should be at the bottom of plate, facing the component.)
2. As shown in the diagram below, align mounting holes on the plate with threaded holes in
the rear of the component. Using a #2 Phillips 1/4-inch hex bit and an inch-pound torque
driver, install four screws (supplied) and tighten to 11-inch pounds (1.24 newton-meters)
to secure component.
NOTE: BARCODE LABEL ON REAR OF PLATE
3. If installing another C2N-HBLOCK or CNPWS-75, repeat this procedure. If not
installing another component, refer to the diagram on the next page and install the
CNXRMAK into rack with components facing inward. (Rack mounting hardware is not
supplied.)
Crestron CNXRMAK
C2N-HBLOCK
CNPWS-75
CNPWS-75 Installation
NOTE: BARCODE LABEL ON REAR OF BRACKET
Installation Guide – DOC. 8156A
C2N-HBLOCK
CNPWS-75
