Rack Mount Kit: CNXRMAK
Description

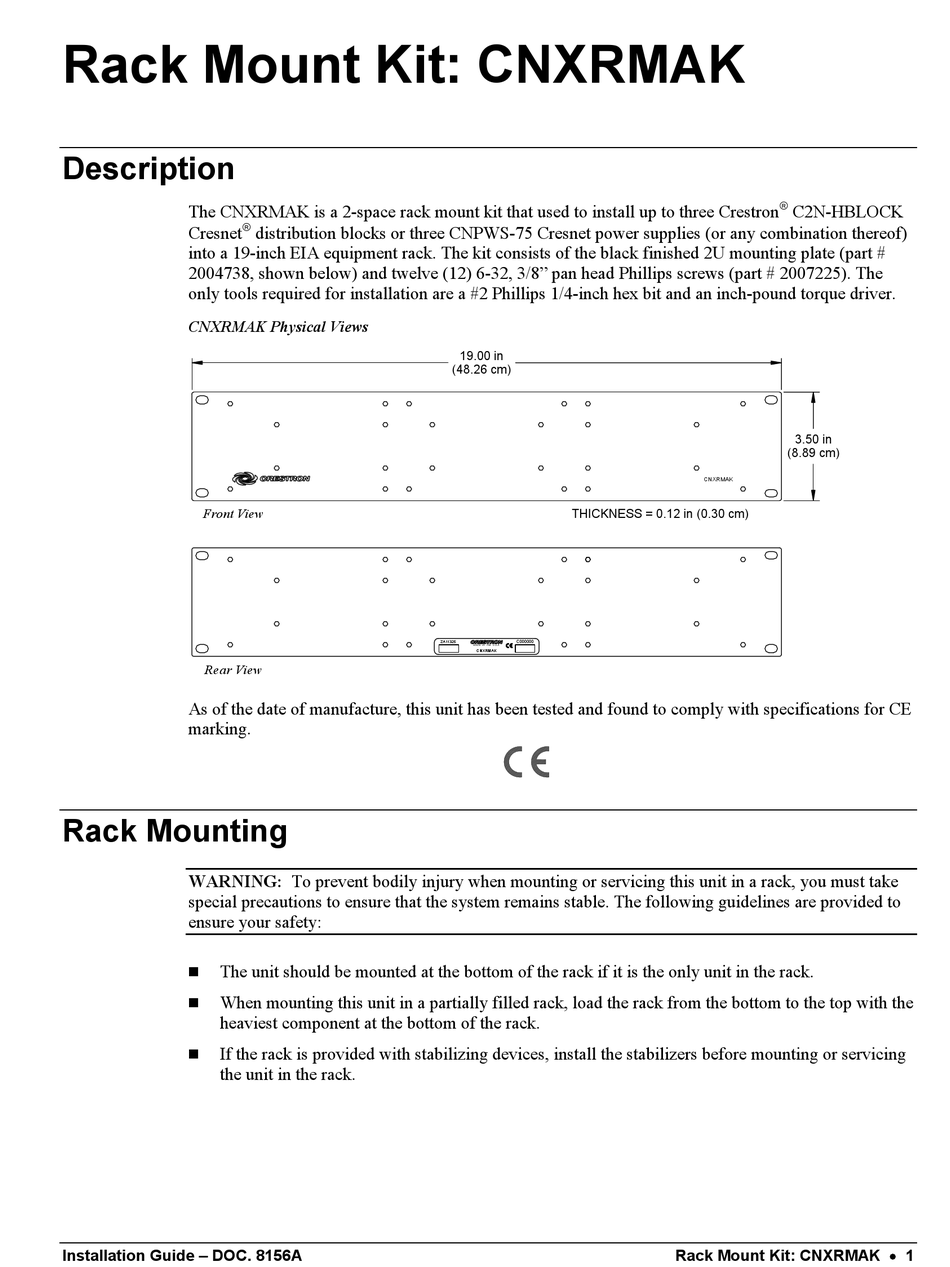

The CNXRMAK is a 2-space rack mount kit that used to install up to three Crestron
Cresnet

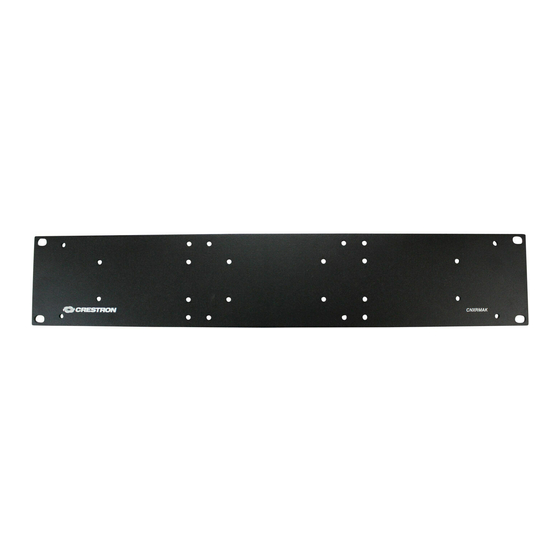

into a 19-inch EIA equipment rack. The kit consists of the black finished 2U mounting plate (part #
2004738, shown below) and twelve (12) 6-32, 3/8" pan head Phillips screws (part # 2007225). The
only tools required for installation are a #2 Phillips 1/4-inch hex bit and an inch-pound torque driver.
CNXRMAK Physical Views
Front View
Rear View
As of the date of manufacture, this unit has been tested and found to comply with specifications for CE
marking.
Rack Mounting
WARNING: To prevent bodily injury when mounting or servicing this unit in a rack, you must take
special precautions to ensure that the system remains stable. The following guidelines are provided to
ensure your safety:
The unit should be mounted at the bottom of the rack if it is the only unit in the rack.
When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing
the unit in the rack.
Installation Guide – DOC. 8156A
distribution blocks or three CNPWS-75 Cresnet power supplies (or any combination thereof)
19.00 in
(48.26 cm)
THICKNESS = 0.12 in (0.30 cm)
ZA11325
C000000
MADE IN THE U.S.A.
CNXRMAK
C2N-HBLOCK
3.50 in
(8.89 cm)
CNXRMAK
Rack Mount Kit: CNXRMAK • 1
