- Page 1 Crestron C2N-RMAK Rack Mounting Kit Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2004 Crestron Electronics, Inc.

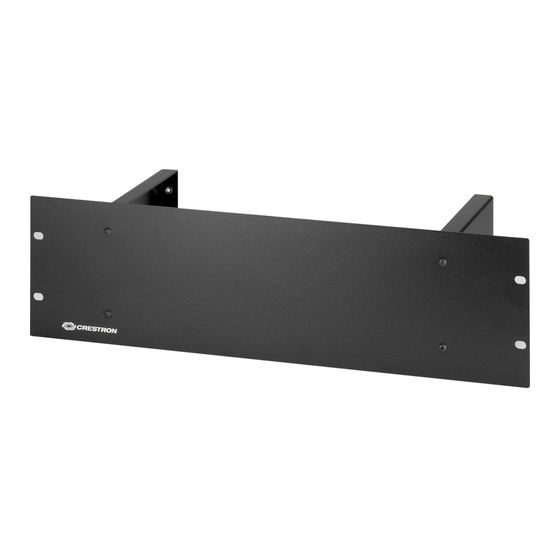

- Page 3 Rack Mounting Kit: C2N-RMAK Description The C2N-RMAK is a mounting kit used for mounting the Crestron Network Poll Accelerator or the C2N-SPWS300 Power Supply on a rack plate for installation in an equipment rack. The table below lists all parts included with the C2N-RMAK.
- Page 4 Tools/hardware required Complete the following assembly procedure in the order provided (refer to illustration below). Assembly View 2 • Rack Mounting Kit: C2N-RMAK 3/32” Hex key Wrench or nut driver 8-32 Nut (quantity four, supplied) 8-32, 3/8” L Button cap screw (quantity four, supplied) 1.
- Page 5 7. Using the hex key, tighten the screws to secure the extension bracket to the rack mounting plate. (SR08-32-0R3750-8) Rack Mounting Kit SCREWS, BUTTON HEAD 8-32X3/8"L (SR08-32-0R3750-8) PLATE (MTPL02820-1SS1) BRACKETS (MTBK02867-1) Rack Mounting Kit: C2N-RMAK • 3...
-
Page 6: Further Inquiries
For assistance in your local time zone, refer to the Crestron website (www.crestron.com) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 7: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. - Page 8 Crestron Electronics, Inc. Installation Guide – DOC. 6131A 15 Volvo Drive Rockleigh, NJ 07647 12.04 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
