Crestron CNXENET+
Operations & Installation Guide – DOC. 8153A
CNX Enhanced Ethernet Expansion Card

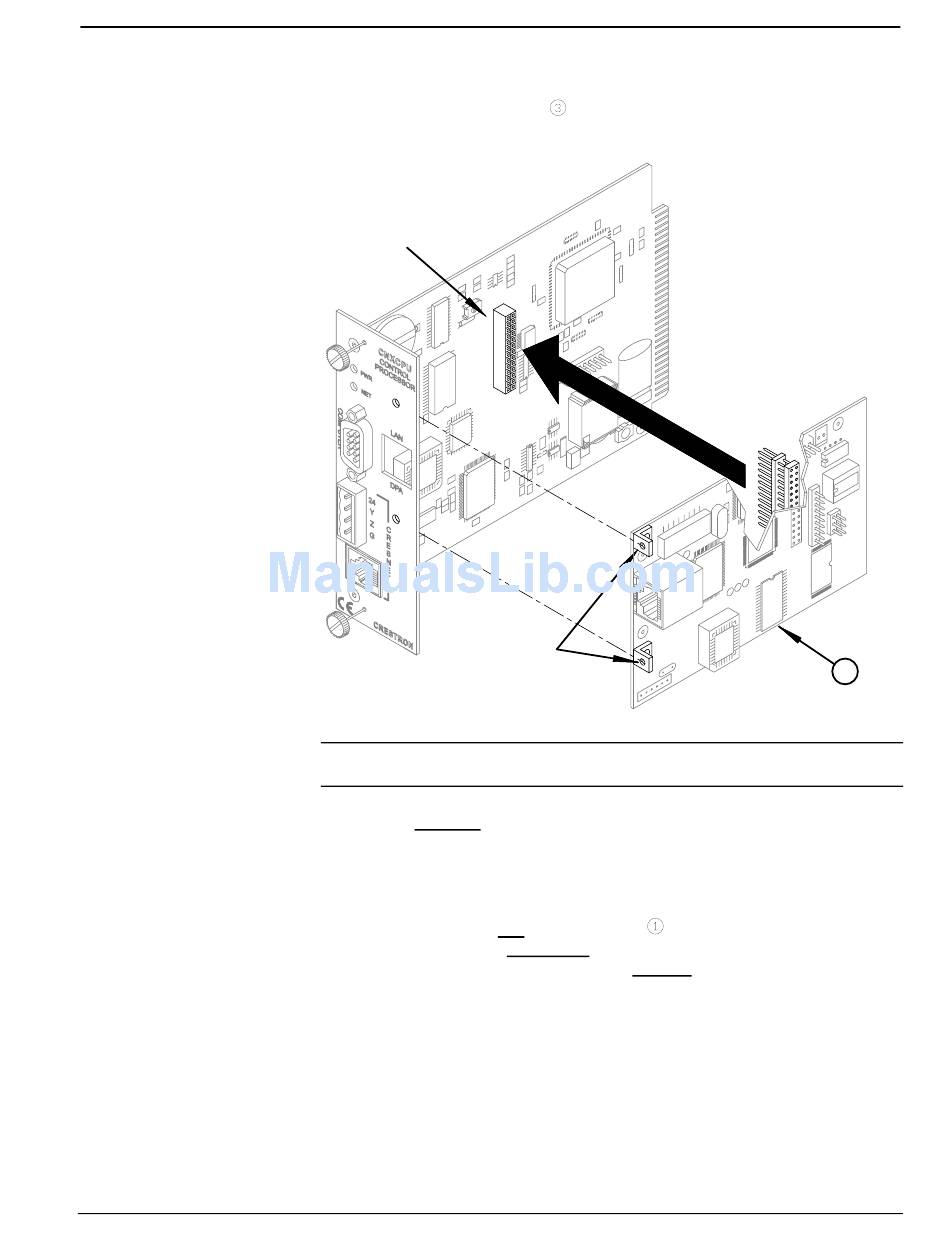

5. As shown below, carefully align the pins on the 26-pin DPA connector
of the CNXENET+
CNXCPU Installation (2 of 3) – Install CNXENET+
26-PIN DPA
CONNECTOR
MOUNTING
BRACKETS
NOTE: The DPA pins are more easily inserted by gently "rocking" the
CNXENET+ side-to-side while pressing onto DPA connector.
6. DO NOT force pins into connector and press CNXENET+ until pins
are fully seated. Make sure that the mounting brackets on CNXENET+
align with mounting holes of the CNXCPU. Make sure that the
LAN/DPA connector aligns with cut out.
7. Refer to the diagram on the next page. From the CNXCPU faceplate,
reinstall the two mounting screws
the screws to finger-tight then, using a #1 Phillips tip screwdriver
tighten the screws an additional 1/8-turn.
CNX Enhanced Ethernet Expansion Card: CNXENET+ • 7
with the DPA connector of the CNXCPU.
to secure CNXENET+. Tighten
