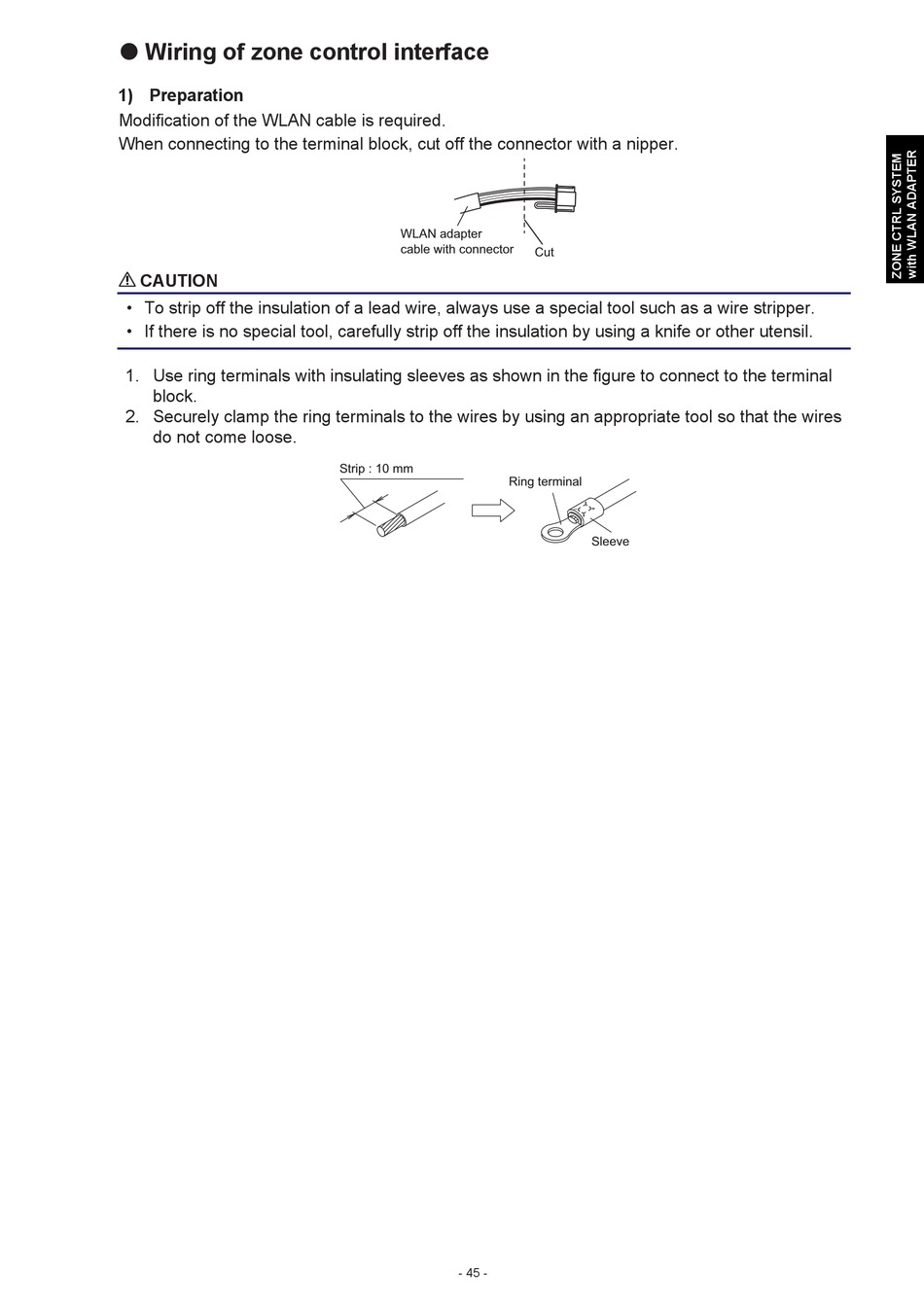

Wiring of zone control interface
1) Preparation
Modification of the WLAN cable is required.
When connecting to the terminal block, cut off the connector with a nipper.
CAUTION
• To strip off the insulation of a lead wire, always use a special tool such as a wire stripper.
• If there is no special tool, carefully strip off the insulation by using a knife or other utensil.
1. Use ring terminals with insulating sleeves as shown in the figure to connect to the terminal
block.
2. Securely clamp the ring terminals to the wires by using an appropriate tool so that the wires
do not come loose.
WLAN adapter
cable with connector
Strip : 10 mm
Ring terminal
- 45 -
Cut
Sleeve
