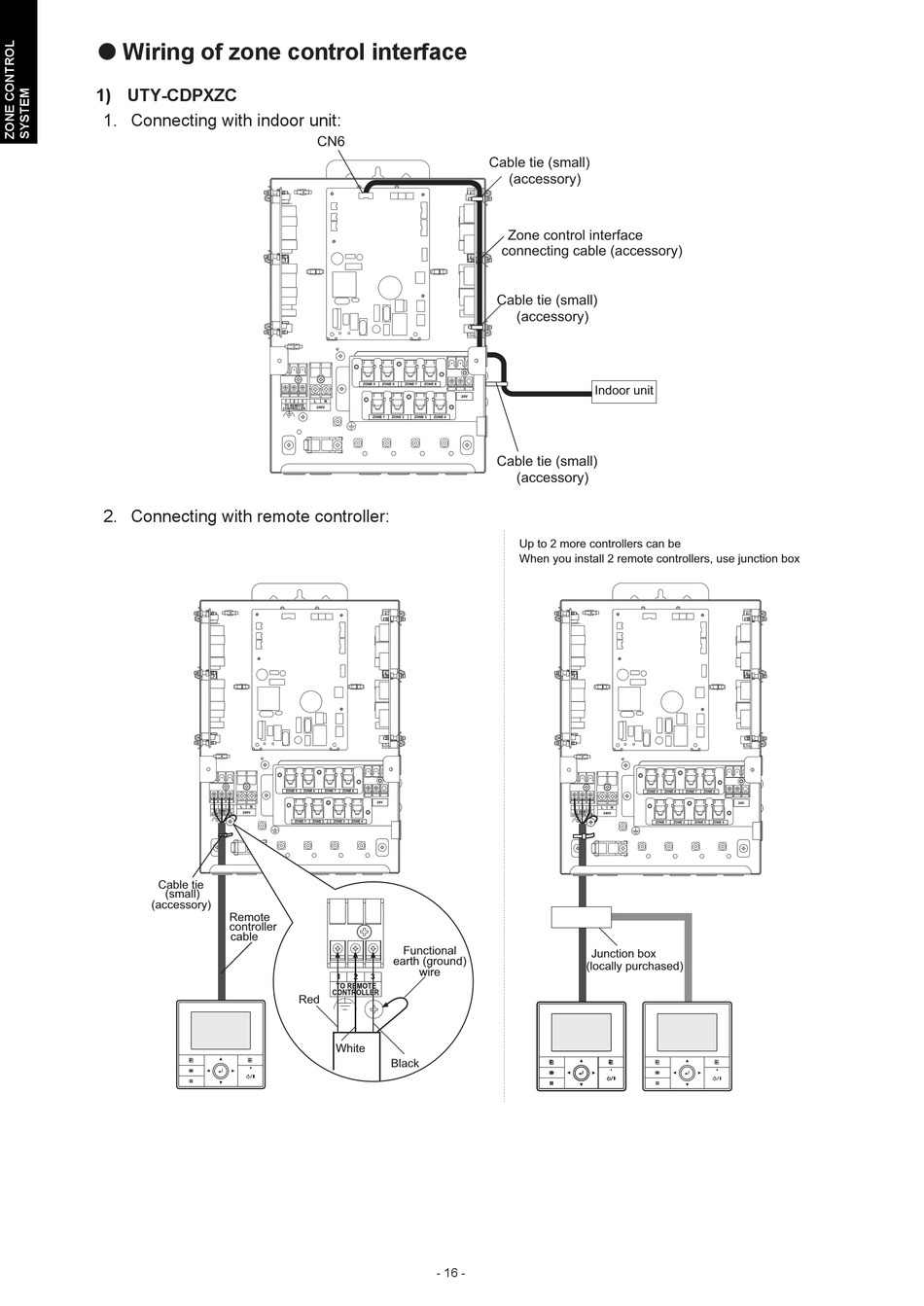

 Wiring of zone control interface
1) UTY-CDPXZC
1. Connecting with indoor unit:
2. Connecting with remote controller:
Cable tie
(small)
(accessory)
Remote
controller
cable
CN6
Functional
earth (ground)
wire
Red
White
Black
- 16 -
Cable tie (small)
(accessory)
Zone control interface
connecting cable (accessory)
Cable tie (small)
(accessory)
Indoor unit
Cable tie (small)
(accessory)
Up to 2 more controllers can be
When you install 2 remote controllers, use junction box
Junction box
(locally purchased)
