Fujitsu UTY-CDPXZC Design & Technical Manual page 16

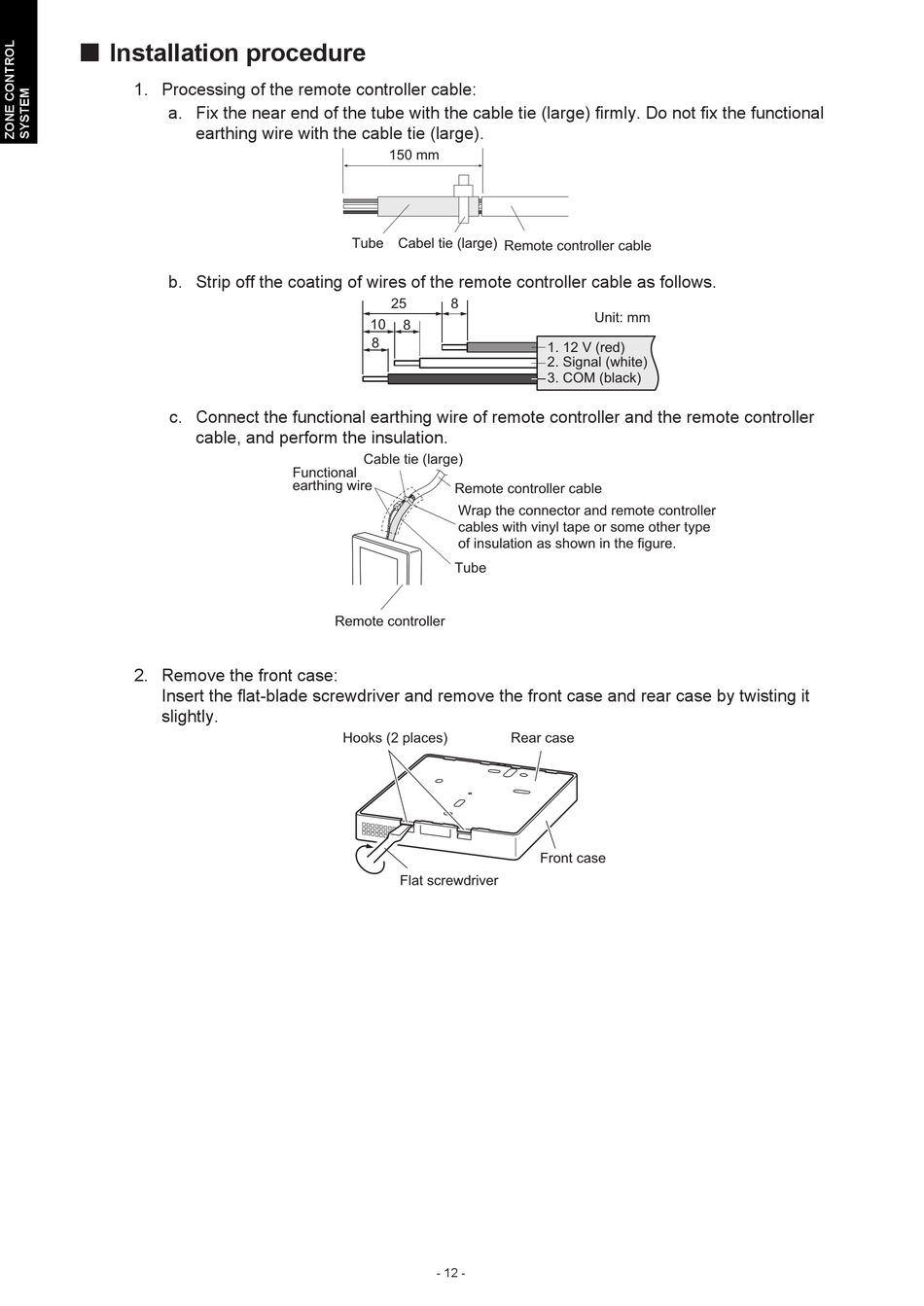

¢ Installation procedure
1. Processing of the remote controller cable:
a. Fix the near end of the tube with the cable tie (large) firmly. Do not fix the functional
earthing wire with the cable tie (large).
b. Strip off the coating of wires of the remote controller cable as follows.
c. Connect the functional earthing wire of remote controller and the remote controller
cable, and perform the insulation.
2. Remove the front case:
Insert the flat-blade screwdriver and remove the front case and rear case by twisting it
slightly.
150 mm
Tube Cabel tie (large) Remote controller cable
25 8
10
8
8
Cable tie (large)
Functional
earthing wire
Remote controller cable
Wrap the connector and remote controller
cables with vinyl tape or some other type
of insulation as shown in the figure.
Tube
Remote controller
Hooks (2 places)
Flat screwdriver
- 12 -
Unit: mm
1. 12 V (red)
2. Signal (white)
3. COM (black)
Rear case
Front case
