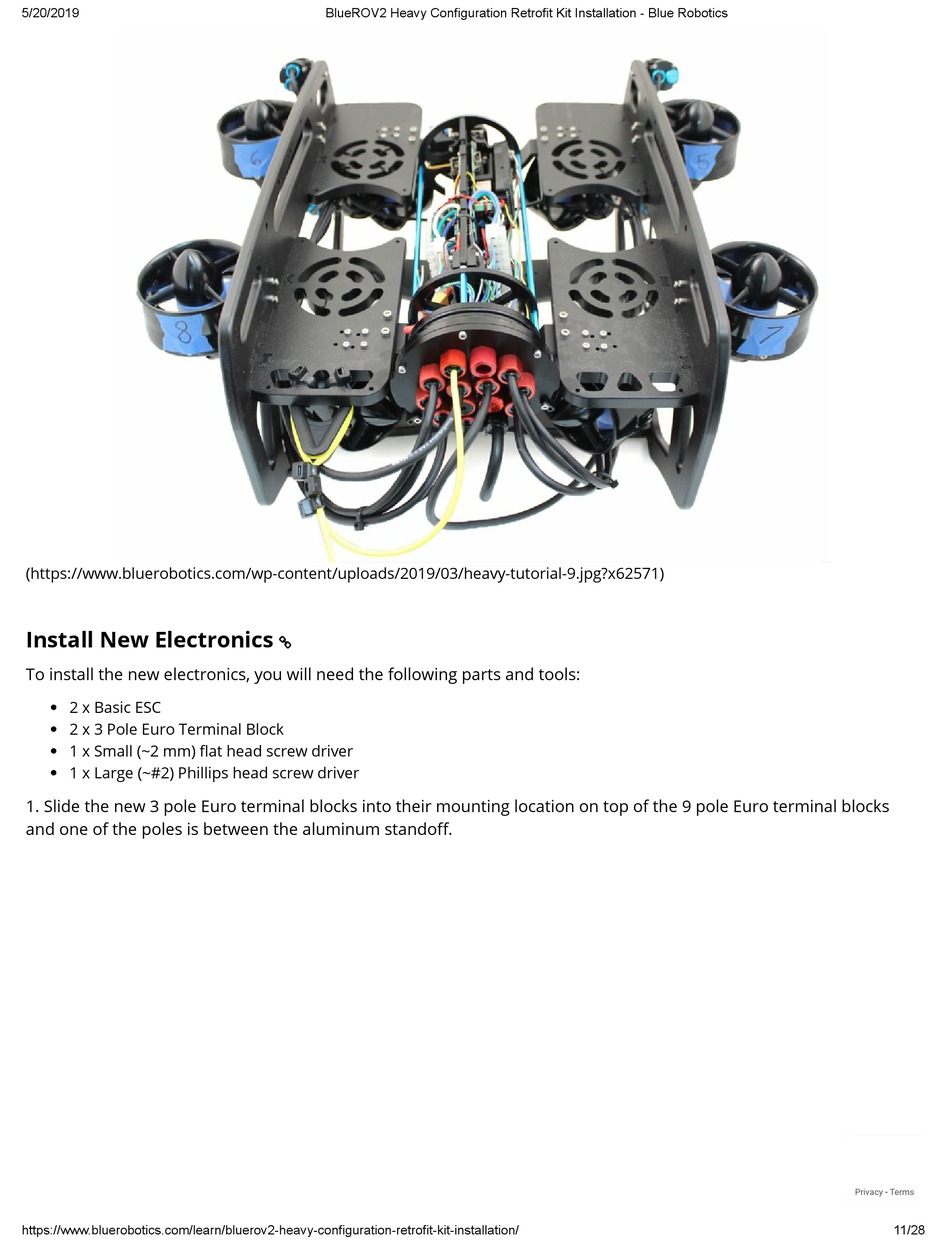

Blue Robotics BlueROV2 Installation Manual page 11

5/20/2019
(https://www.bluerobotics.com/wp-content/uploads/2019/03/heavy-tutorial-9.jpg?x62571)
Install New Electronics
To install the new electronics, you will need the following parts and tools:
2 x Basic ESC
2 x 3 Pole Euro Terminal Block
1 x Small (~2 mm) at head screw driver
1 x Large (~#2) Phillips head screw driver
1. Slide the new 3 pole Euro terminal blocks into their mounting location on top of the 9 pole Euro terminal blocks
and one of the poles is between the aluminum stando .
