7/31/2018

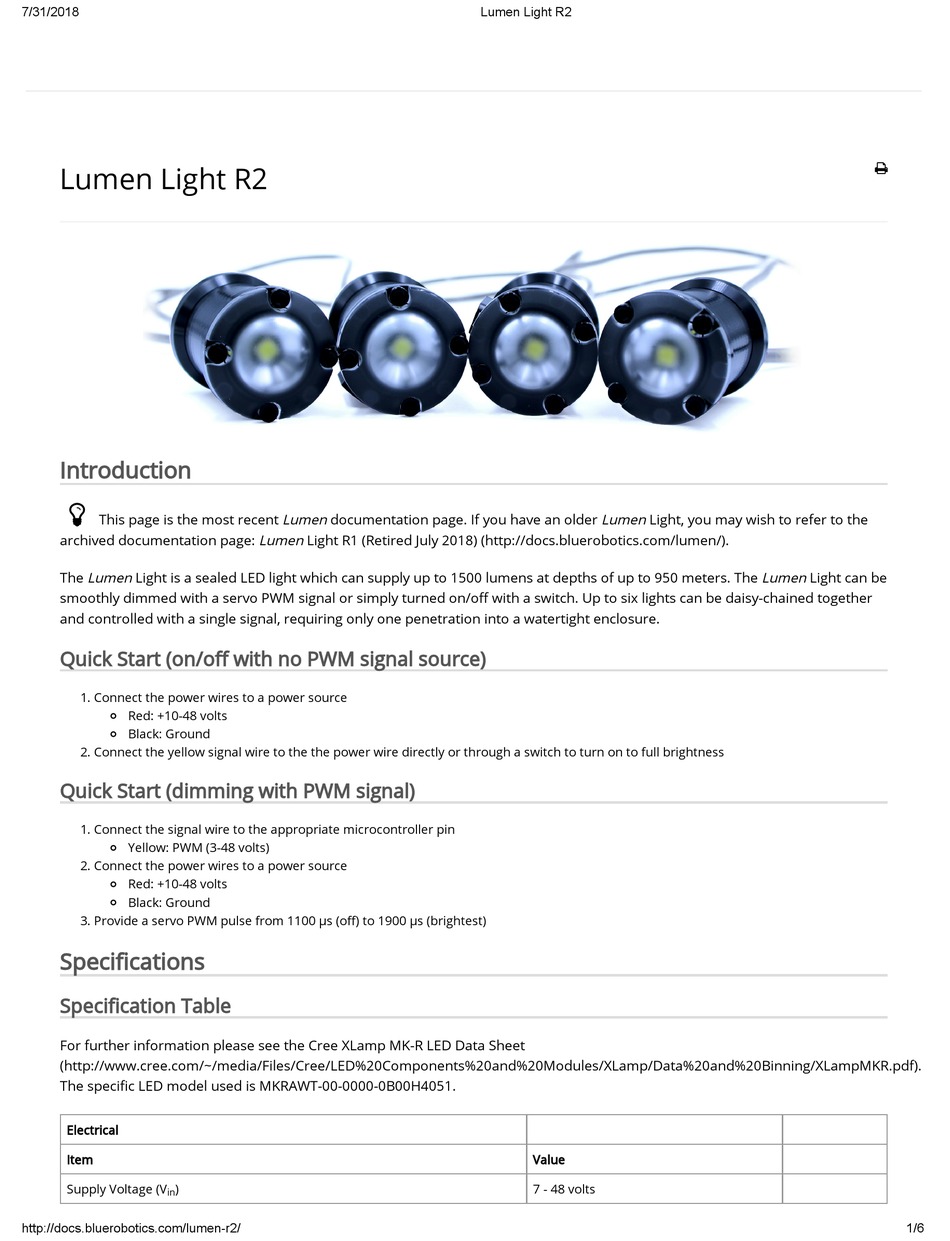

Lumen Light R2
Introduction
This page is the most recent Lumen documentation page. If you have an older Lumen Light, you may wish to refer to the
archived documentation page: Lumen Light R1 (Retired July 2018) (http://docs.bluerobotics.com/lumen/).

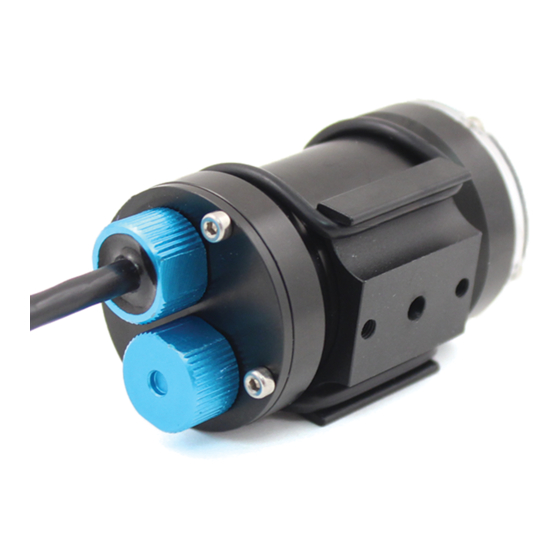

The Lumen Light is a sealed LED light which can supply up to 1500 lumens at depths of up to 950 meters. The Lumen Light can be
smoothly dimmed with a servo PWM signal or simply turned on/o with a switch. Up to six lights can be daisy-chained together
and controlled with a single signal, requiring only one penetration into a watertight enclosure.
Quick Start (on/o with no PWM signal source)
1. Connect the power wires to a power source
Red: +10-48 volts
Black: Ground
2. Connect the yellow signal wire to the the power wire directly or through a switch to turn on to full brightness
Quick Start (dimming with PWM signal)
1. Connect the signal wire to the appropriate microcontroller pin
Yellow: PWM (3-48 volts)
2. Connect the power wires to a power source
Red: +10-48 volts
Black: Ground
3. Provide a servo PWM pulse from 1100 μs (o ) to 1900 μs (brightest)
Speci cations
Speci cation Table
For further information please see the Cree XLamp MK-R LED Data Sheet
(http://www.cree.com/~/media/Files/Cree/LED%20Components%20and%20Modules/XLamp/Data%20and%20Binning/XLampMKR.pdf).
The speci c LED model used is MKRAWT-00-0000-0B00H4051.
Electrical
Item
Supply Voltage (V )
in
http://docs.bluerobotics.com/lumen-r2/
Lumen Light R2
Value
7 - 48 volts
1/6
Advertisement
Related Manuals for Blue Robotics Lumen Light R2
Summary of Contents for Blue Robotics Lumen Light R2
- Page 1 7/31/2018 Lumen Light R2 Lumen Light R2 Introduction This page is the most recent Lumen documentation page. If you have an older Lumen Light, you may wish to refer to the archived documentation page: Lumen Light R1 (Retired July 2018) (http://docs.bluerobotics.com/lumen/).
- Page 2 7/31/2018 Lumen Light R2 Electrical Full Brightness Supply Voltage (V ) 10 - 48 volts PWM Logic Voltage 3 - 48 volts Peak Current 15 / V amps Light Maximum Brightness 1,500 lumens ...
-
Page 3: Installation
IGES (.igs) STEP (.step) STL (.stl) Lumen Light Lumen Light R2 Assembly LUMEN-ASM-LIGHT-R2.zip (/lumen-r2/cad/LUMEN-ASM-LIGHT-R2.zip) Installation The Lumen Light can be easily installed using the included threaded M3 mounting holes. Using the Threaded Holes The two threaded holes are best used when you have access to install a screw that tightens into the holes. This applies to most ROVs. -
Page 4: Daisy Chain Connection
7/31/2018 Lumen Light R2 Attach the Lumen onto the screws and tighten until hand tight. Be careful to avoid over-tightening and stripping the threads. Daisy Chain Connection The Lumen Light can be daisy chained (https://en.wikipedia.org/wiki/Daisy_chain_%28electrical_engineering%29) using the following procedure: ... - Page 5 7/31/2018 Lumen Light R2 Example Code Arduino This example uses the Arduino Servo library to control the light brightness. This provides an update rate of 50 Hz and can use any pin on the Arduino board as the “servoPin”. If you’ve never used Arduino before, we suggest checking out some tutorials! (https://www.arduino.cc/en/Tutorial/HomePage) #include <Servo.h>...
- Page 6 7/31/2018 Lumen Light R2 http://docs.bluerobotics.com/lumen-r2/...
