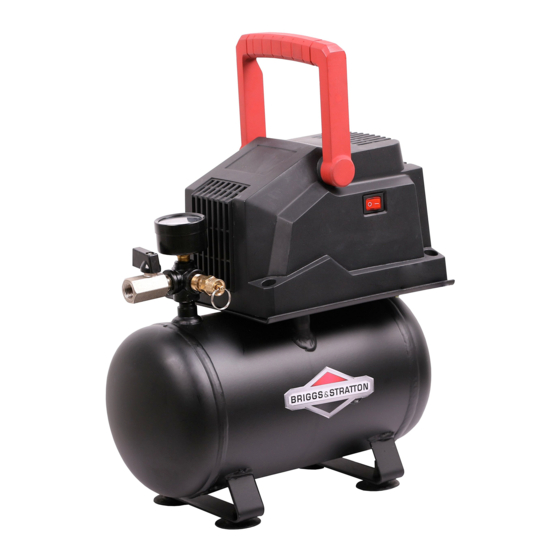

1 GAL PORTABLE
OIL FREE AIR COMPRESSOR
Read and understand this operator's manual thoroughly before using the product. It contains important
information for your safety as well as operating and maintenance advice.
BRIGGS & STRATTON CORPORATION,
MILWAUKEE, WISCONSIN, U.S.A.
Product Model # 074061-00
Manual # 80018802
Advertisement
Table of Contents
Related Manuals for Briggs & Stratton 074061-00
Summary of Contents for Briggs & Stratton 074061-00
- Page 1 1 GAL PORTABLE OIL FREE AIR COMPRESSOR Product Model # 074061-00 Manual # 80018802 Read and understand this operator's manual thoroughly before using the product. It contains important information for your safety as well as operating and maintenance advice. BRIGGS & STRATTON CORPORATION,...
- Page 2 Thank you for purchasing this quality-built Briggs & Stratton ™ air compressor. We are pleased that Briggs & Stratton™ brand. When operated and maintained according to the instructions in this manual, your Briggs &Stratton air compressor will provide many years of dependable service. You can contact Briggs &...
-
Page 3: Product Registration Form
CONGRATULATIONS ON YOUR NEW PRODUCT PURCHASE! Thank you for choosing a product from the Briggs & Stratton family of brands. We are honored that you chose us as your power equipment provider. WE STRIVE TO CREATE HELPFUL, DEPENDABLE PRODUCTS THAT YOU CAN RELY ON FOR YEARS TO COME, WHILE COUNTING ON US TO SUPPORT YOU THROUGH THE LIFE OF YOUR PRODUCT. -
Page 4: Table Of Contents
Table of Contents Product Registration Form....................Safety Guidelines........................Safety Information........................ Key Parts Diagram........................ Parts Description........................8 Operating Instructions......................Care and Maintenance......................Troubleshooting........................Limited Warranty..........................Product Specifications......................Exploded View........................Parts List..........................SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. -
Page 5: Safety Guidelines
Safety Guidelines Important Safety Information The manufacturer cannot possibly anticipate every possible circumstance that might involve a hazard. The warnings work method, or operating technique that the manufacturer does not specifically recommend, you must satisfy yourself that it is safe for you and others. You must also make sure that the procedure, work method, or operating technique that you choose does not render the compressor unsafe. -
Page 6: Safety Information
Safety Information DO NOT OPERATE THIS UNIT UNTIL YOU READ AND UNDERSTAND THIS INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE INSTRUCTIONS. WARNING compressor. High pressure air could result in death or serious injury. Never operate above maximum operating pressure of the spray gun or tool. Drain water from tank after each use. Do not weld or repair tank. -
Page 7: Key Parts Diagram
Key Parts Diagram Electric Motor & Pump Pressure Relief Valve ON/OFF Switch Air Tank Air Line Outlet Drain Valve Tank Pressure Gauge Power Cord... -
Page 8: Parts Description
Parts Description ELECTRIC MOTOR : The motor is used to power the pump. AIR COMPRESSOR PUMP : The pump is used to compress the air and discharge it into the tank via the piston moving up and down in the cylinder. ON/OFF SWITCH : This switch turns on the compressor and is operated manually. -
Page 9: Operating Instructions
Operating Instructions Turn the ball valve on the air line outlet (C) clockwise until it stops. drain Turn on the ball valve on the air line outlet counterclockwise. Ball Valve OPEN CLOSE... -
Page 10: Care And Maintenance
Care and Maintenance WARNING : To avoid personal injury, always shut off and unplug the unit and relieve all air pressure from the system before performing. Regular maintenance will ensure trouble-free operation. To prevent corrosion inside the tank, the condensation must be drained at the end of every workday. -
Page 11: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Tank drain valve is open. 1. Close tank drain valve. 2. Fittings leak. 2. Check fittings with soapy water. Tighten or reseal leaking fittings. DO NOT OVER TIGHTEN. 3. Prolonged or excessive 3. Decrease amount of air used. use of air. -
Page 12: Limited Warranty
Briggs & Stratton Air Compressor Warranty Policy October, 2015 LIMITED WARRANTY BRIGGS & STRATTON is a trademark of BRIGGS & STRATTON CORPORATION and is used under license to Alton Industry Co. Ltd®. Alton Industry Co. Ltd warrants this Briggs & Stratton brand product for a period of one year from the date of original retail purchase against defects in materials and workmanship. -
Page 13: Product Specifications
Product Specifications Model No. 074061-00/0100141 Pump Oil free, Direct drive, Single stage Motor 1/5 HP Voltage/Amps/HZ 120/1.7/60 Air Tank Capacity 1 Gallon Cut-in Pressure 70 PSI Cut-out Pressure 100 PSI CFM @ 40 PSI CFM @ 90 PSI Power Cord SJT 18 AWG / 72 in. -
Page 14: Exploded View
Exploded View BRIGGSandSTRATTON.COM... -
Page 15: Parts List
Parts List PART DESCRIPTION PART DESCRIPTION Check Valve Spring Air Tank Shroud Pressure Switch Bolt M6 X 20 Relief Valve Ball Valve ON/OFF Switch Manifold Motor & Pump Assembly Bolt M6 X 16 Pressure Gauge Self-tapping Screw M3 X 6 Ground Wire Circuit Board Bolt M5 X 8...
