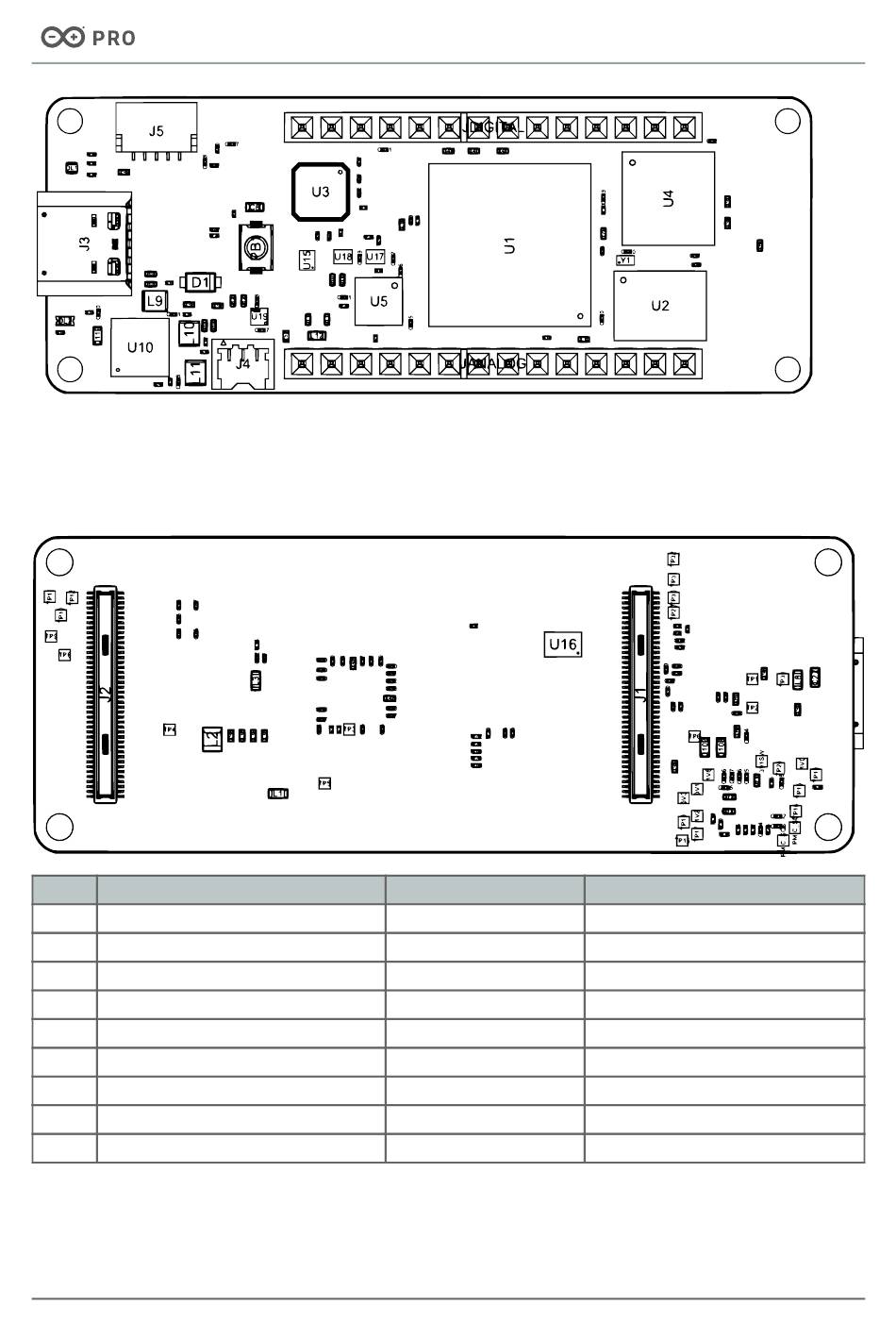

Ref. Description
U1 STM32H747, Main processor
U2 QSPI Flash Memory
U3 USB HS PHY
U4 SDRAM
U5 Ethernet PHY
U6 MIPI to USB-C
U7 Level Shifter
U8 I2C level shifter
U9 WiFi/BT Module
9 / 22
Ref.
U10
U11
U12, U13, U14
U16
J1, J2
ANT1
JANALOGJDIGITAL
J4
J5
Arduino® Portenta H7 Lite / Rev. 01 - 09/09/2021
Arduino® Portenta H7 Lite
Description
Power Manager
Crypto Chip (NXP)
ESD protection
Crypto Chip (Microchip)
High Density Connectors
Antenna or U.FL Connector
MKR compatible headers
Battery connector
ESLOV connector
