Arduino® Portenta H7 Lite
5.3 4.3 MKR Headers
alt_text

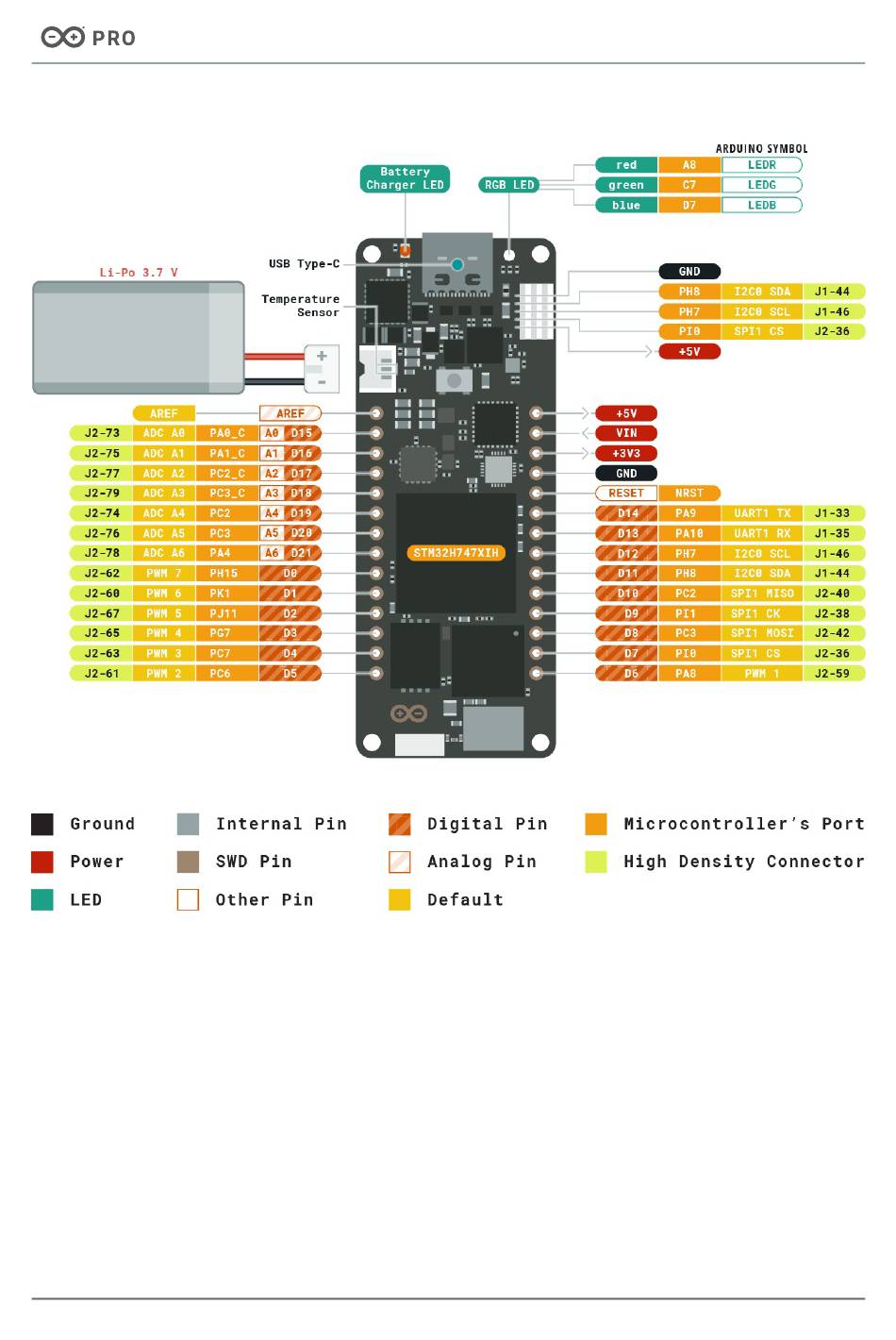

Detailed information on the Portenta H7 Lite's pinouts are available in a separate document:
https://content.arduino.cc/assets/Pinout-PortentaH7_latest.pdf
5.4 Battery Connector
The Portenta H7 Lite is compatible with a single cell Li-Po or Li-Ion battery (3.7V, 700mAh minimum) connected
via a 3-pin BM03B-ACHSS-GAN-TF connector. Battery management is performed by the PF1550 IC.
15 / 22
Arduino® Portenta H7 Lite / Rev. 01 - 09/09/2021
