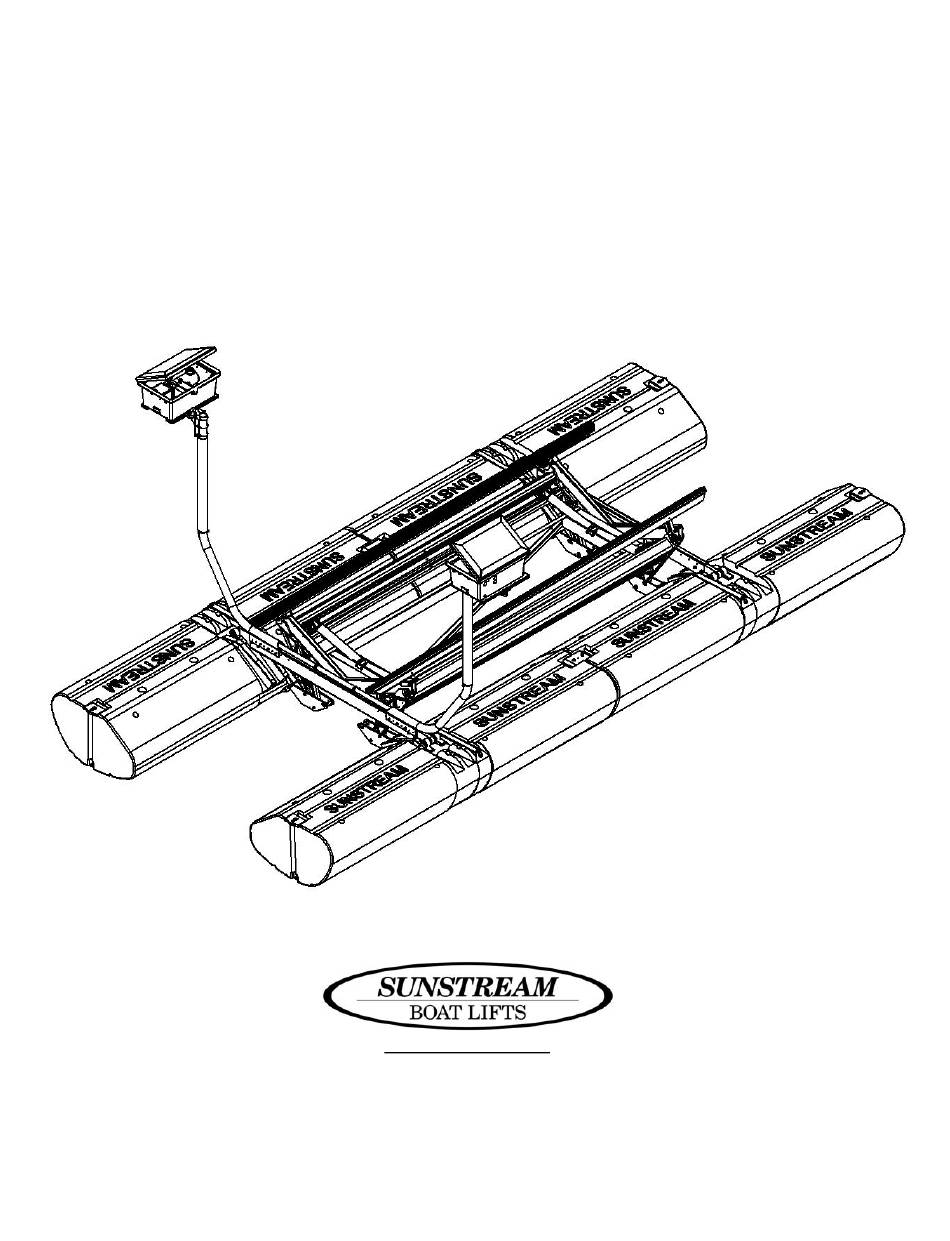

- Page 1 Sunstream FloatLift Powerpack Shelf kit Assembly and Installation Instructions www.floatlift.com FA-PPS10 99-000007-31-ii Copyright Sunstream Corporation 2003 – All Rights Reserved 10/22/09 R(A-02)
-
Page 2: Table Of Contents
If you are not an authorized Sunstream Dealer and are not a reasonably skilled mechanic, please contact Sunstream so that we can refer you to a local dealer who can skillfully and safely perform the assembly and installation of this Sunstream product. -
Page 3: Parts
Parts 1X 99-000007-31 MOORING CONVERSION KIT Assembly Instructions ! NOTE Grease Pins with Marine Grease and apply anti-seize compound to all bolt threads before installing. ! CAUTION Only skilled individuals with proper tools should assemble the Mooring Mount System. Improper assembly may lead to product failure and substantial property damage and/or personal injury. - Page 5 Note: Repeat with other box DO NOT TIGHTEN...
- Page 7 ! NOTE Secure Powerpack: Damage due to substantial water intrusion or submergence is not warranted. Tighten all bolts. Hydraulic Lines From either cylinder set...
- Page 8 Hydraulic Lines From either cylinder set ROUTE HOSES THROUGH HOLE...
- Page 9 ATTACH 19-000001-62 CLIPS HERE AND OTHER SIDE & SECURE.
- Page 10 RED HEAT SHRINK MUST GO ON POSITIVE SIDE.
-
Page 11: Important Installation Instruction
These instructions provide basic information about how to secure the FloatLift to a mooring buoy using Sunstream’s mooring buoy kit. Adhering to these instructions, however, provides no guarantee that the installation will be safe and secure. The FloatLift user must also consider site- specific facts such as wave, wind, and current action and storm potential in his/her analysis of the installation site and method. -
Page 12: Important Safety Instructions
Use and Maintenance Tips Maintenance and Off-Season Suggestions • Inspect and replace zincs if necessary. If any Sunstream Product is used in salt or brackish water, the Purchaser agrees that proper maintenance requires that the Purchaser shall attach, maintain, and regularly check sacrificial anodes, also known as “zincs”, to the Product to prevent electrolysis and... -
Page 13: Warranty
Warranty WARRANTY: Sunstream Corporation (“Company”) warrants its Products for non-commercial and/or non-governmental use for a period of three (3)* years, in both fresh and salt water, to the original Purchaser (“Purchaser”) against manufacturing defects in all Product materials and workmanship beginning from date of purchase of the Product from Company** under the following terms and...
