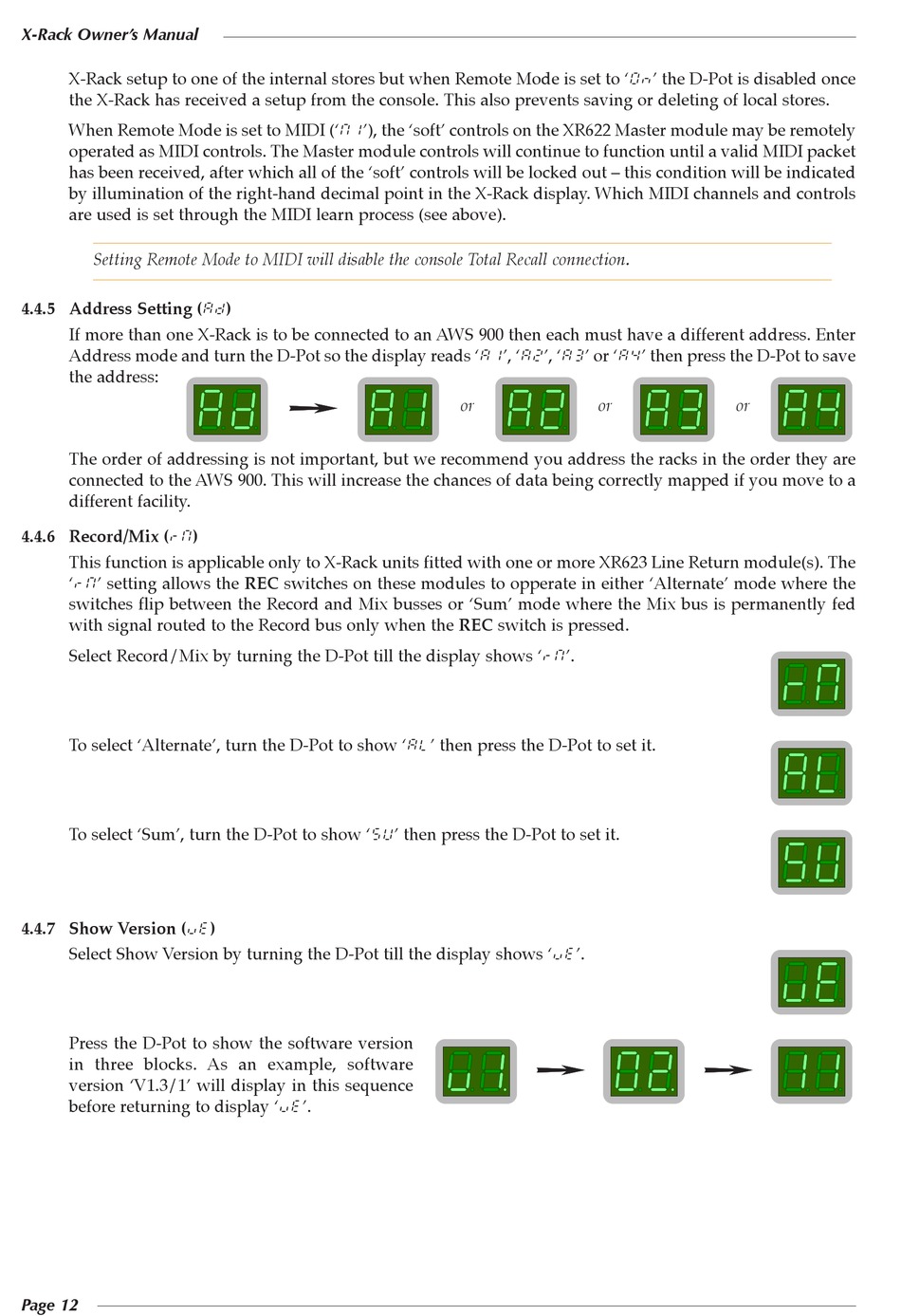

X-Rack Owner's Manual
X-Rack setup to one of the internal stores but when Remote Mode is set to ' n' the D-Pot is disabled once
the X-Rack has received a setup from the console. This also prevents saving or deleting of local stores.
When Remote Mode is set to MIDI ('m1'), the 'soft' controls on the XR622 Master module may be remotely
operated as MIDI controls. The Master module controls will continue to function until a valid MIDI packet
has been received, after which all of the 'soft' controls will be locked out – this condition will be indicated
by illumination of the right-hand decimal point in the X-Rack display. Which MIDI channels and controls
are used is set through the MIDI learn process (see above).
Setting Remote Mode to MIDI will disable the console Total Recall connection.

4.4.5 Address Setting (ad)

If more than one X-Rack is to be connected to an AWS 900 then each must have a different address. Enter
Address mode and turn the D-Pot so the display reads 'a1', 'a2', 'a3' or 'a4' then press the D-Pot to save
the address:
The order of addressing is not important, but we recommend you address the racks in the order they are
connected to the AWS 900. This will increase the chances of data being correctly mapped if you move to a
different facility.

4.4.6 Record/Mix (rm)

This function is applicable only to X-Rack units fitted with one or more XR623 Line Return module(s). The
'rm' setting allows the REC switches on these modules to opperate in either 'Alternate' mode where the
switches flip between the Record and Mix busses or 'Sum' mode where the Mix bus is permanently fed
with signal routed to the Record bus only when the REC switch is pressed.
Select Record/Mix by turning the D-Pot till the display shows 'rm'.
To select 'Alternate', turn the D-Pot to show 'al' then press the D-Pot to set it.
To select 'Sum', turn the D-Pot to show 'su' then press the D-Pot to set it.

4.4.7 Show Version (ve)

Select Show Version by turning the D-Pot till the display shows 've'.
Press the D-Pot to show the software version
in three blocks. As an example, software
version 'V1.3/1' will display in this sequence
before returning to display 've'.
Page 12
or or or
