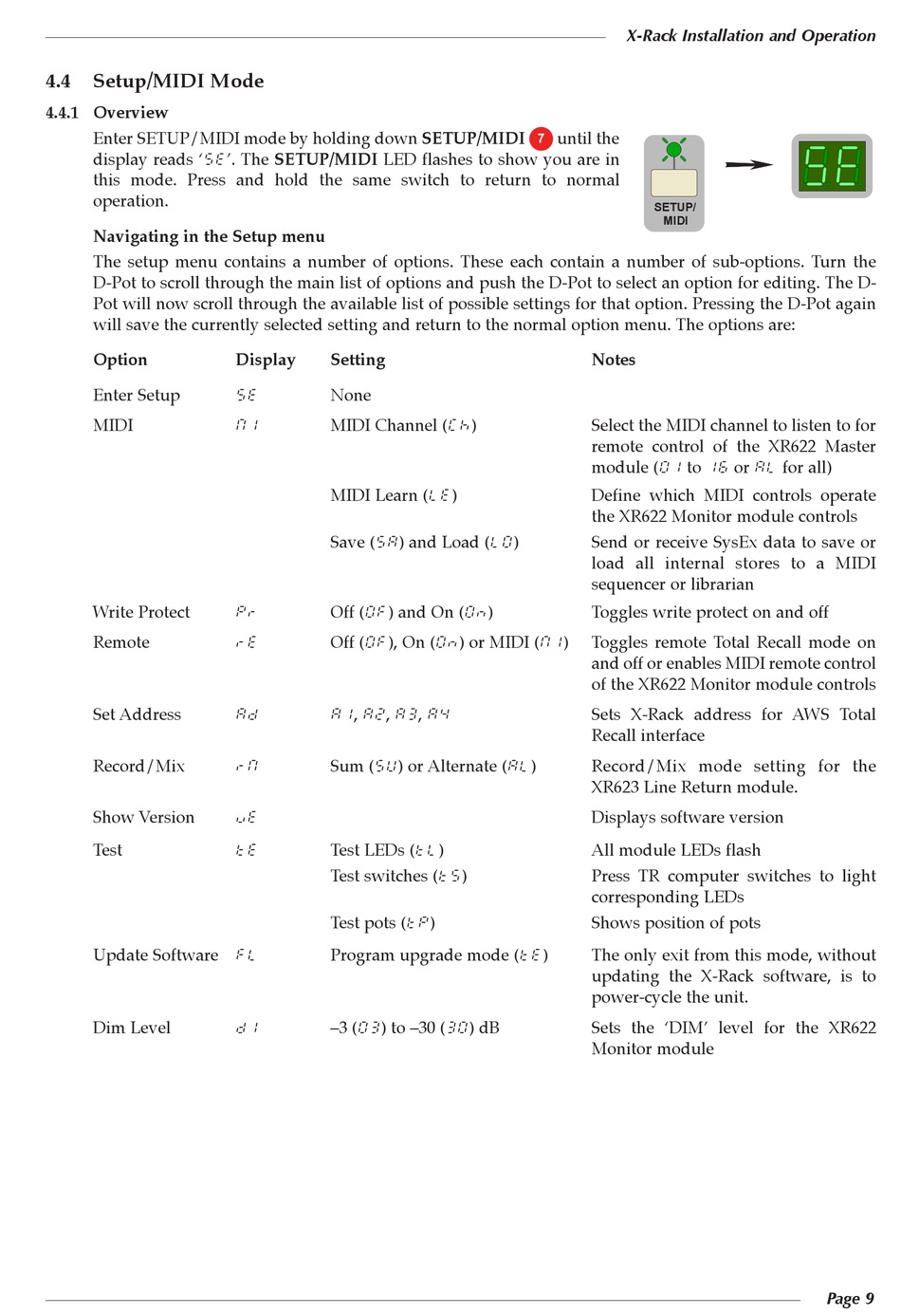

4.4

Setup/MIDI Mode

4.4.1 Overview

Enter SETUP/MIDI mode by holding down SETUP/MIDI
display reads '5e'. The SETUP/MIDI LED flashes to show you are in
this mode. Press and hold the same switch to return to normal
operation.
Navigating in the Setup menu
The setup menu contains a number of options. These each contain a number of sub-options. Turn the
D-Pot to scroll through the main list of options and push the D-Pot to select an option for editing. The D-
Pot will now scroll through the available list of possible settings for that option. Pressing the D-Pot again
will save the currently selected setting and return to the normal option menu. The options are:
Option
Enter Setup
MIDI
Write Protect
Remote
Set Address
Record/Mix
Show Version
Test
Update Software fl
Dim Level
Display Setting
None
5e
MIDI Channel (ck)
m1
MIDI Learn (le)
Save (sa) and Load (l )
Off ( f) and On ( n)
pr
Off ( f), On ( n) or MIDI (m1)
re
ad a1, a2, a3, a4
Sum (su) or Alternate (al)
rm
ve
Test LEDs (tl)
te
Test switches (t5)
Test pots (tp)
Program upgrade mode (te)
–3 ( 3) to –30 (3 ) dB
d1
X-Rack Installation and Operation
until the
7
SETUP/
MIDI
Notes
Select the MIDI channel to listen to for
remote control of the XR622 Master
module ( 1 to 16 or al for all)
Define which MIDI controls operate
the XR622 Monitor module controls
Send or receive SysEx data to save or
load all internal stores to a MIDI
sequencer or librarian
Toggles write protect on and off
Toggles remote Total Recall mode on
and off or enables MIDI remote control
of the XR622 Monitor module controls
Sets X-Rack address for AWS Total
Recall interface
Record/Mix mode setting for the
XR623 Line Return module.
Displays software version
All module LEDs flash
Press TR computer switches to light
corresponding LEDs
Shows position of pots
The only exit from this mode, without
updating the X-Rack software, is to
power-cycle the unit.
Sets the 'DIM' level for the XR622
Monitor module
Page 9
