Cool-Icam CIC-222 User Manual

Cool-icam cic-222: users manual
Table of Contents

Advertisement

Quick Links

TM
AQ 2100
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIC-222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cool-Icam CIC-222

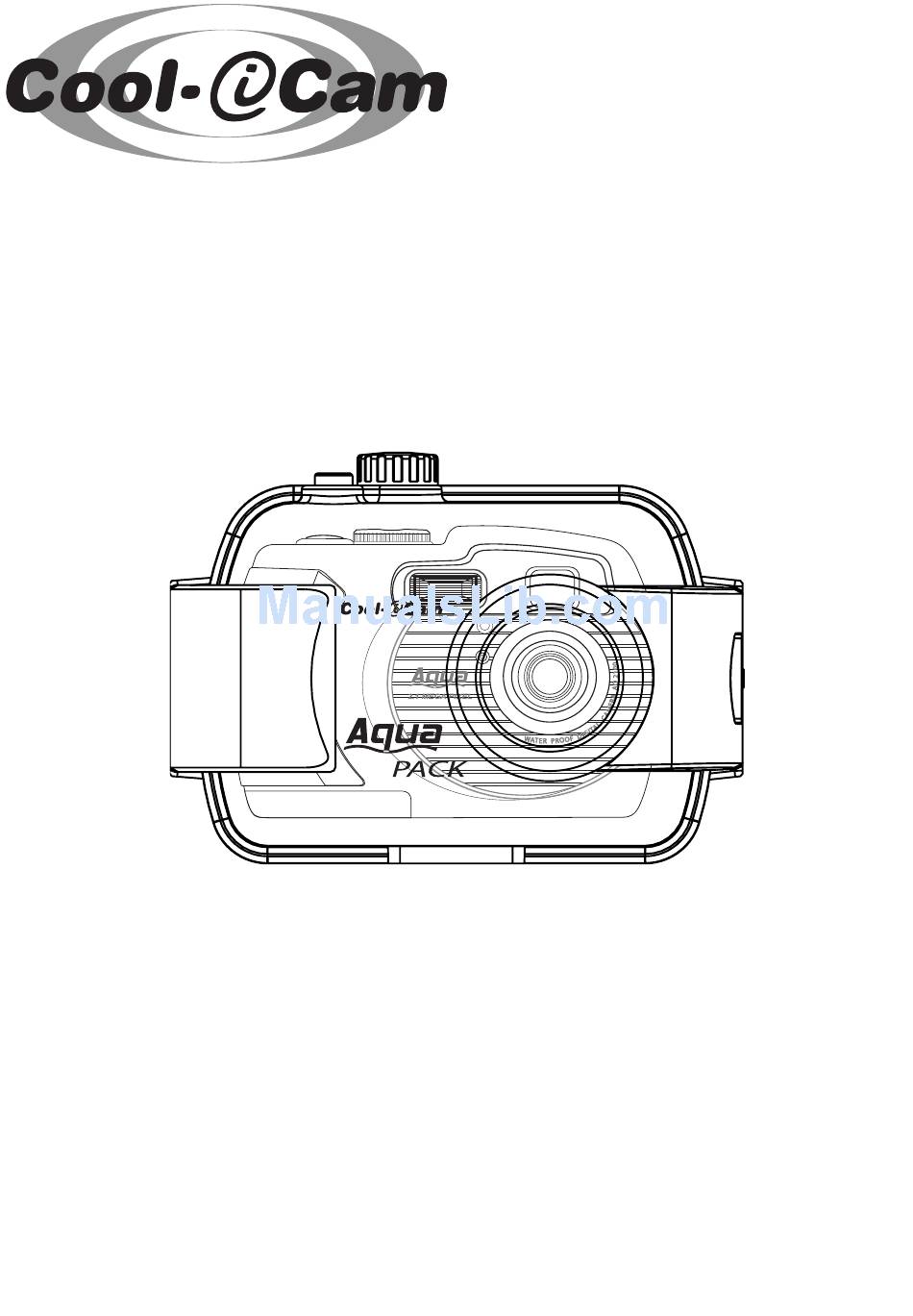

  • Page 1 AQ 2100 User’s Manual...
  • Page 2: Product Overview

    1. Flash 2. Exposure sensor 3. Battery door/SD or MMC card slot 4. Lens 5. Self-timer LED 6. Viewfinder 1. Viewfinder 2. Operation LED 3. LCD screen 4. Display button 5. Left/Self-timer button 6. Menu button 7. OK/Flash button 8. Down/Zoom out button 9.
  • Page 3: Table Of Contents

    1 Getting Started ...4 • What can I do with my Camera? ...4 • What can I do with my Digital Pictures? ...4 • What can I do with my Video Clips?...4 • Camera Package Contents...4 • Attaching the Hand Strap...4 •...
  • Page 4: Getting Started

    • What can I do with my Camera? Capture Set Up • What can I do with my Digital Pictures? View Save Communicate • What can I do with my Video Clips? Playback Save Communicate • Camera Package Contents AQ 2100 Waterproof Case Product Overview 1.
  • Page 5: Installing The Batteries

    • Installing the Batteries 2 x AA Alkaline batteries are supplied with the product. For more guidelines on battery usage, please see Using your batteries. 1. Open the camera battery door by pushing it outwards as illustrated. 2. Insert the batteries as shown, ensuring you follow the +/- signs correctly. 3.
  • Page 6: Checking The Battery Level

    • Checking the Battery Level Check the battery level by pressing Display button before taking pictures. 1. Turn the camera on. 2. Check the battery level that appears on the LCD screen. NOTE: • The battery level indicator only appears on the LCD screen for around 5 seconds each time. •...
  • Page 7: Playback Mode

    • Camera Mode The camera has four working modes. You can select the mode you prefer using the Mode selector located on the top of the camera. Auto mode Under this mode, the camera will automatically judges the environment conditions for you. It will set the Exposure and White balance automatically according to the shooting environment.
  • Page 8: Setting The Display Language

    • Setting the Display Language Under this setting, you can select the language you prefer for the LCD screen. You may change the language setting in any camera mode. 1. Turn on the camera. 2. Press Menu button and use Right button to select •...
  • Page 9: Taking Macro Picture

    • Taking Macro Picture Usually we set the Normal / Macro Selector to Normal subjects within 8 ~ 20 inches, set the selector to Macro NOTE: • The flash is set to “Flash Off” when the Macro is activated except flash setting is set to “Flash on”. •...
  • Page 10: Setting The Picture Resolution

    • Setting the Picture Resolution Lower resolution is easier to email while high resolution and fine quality are for printing. 1. Set the Mode selector to Auto or Manual. 2. Turn the camera on. 3. Press Menu button and use Right button to select “RESOLUTION”. 4.
  • Page 11: Digital Zoom

    • Digital zoom This feature lets you “zoom” in on the central area of a picture and photograph only the enlarged portion of the picture. Digital zoom applies to only one picture at a time. If you want to use digital zoom again, press the digital zoom button.
  • Page 12: Zooming The Displayed Picture

    • Recording Video Clips 1. Set the Mode selector to Video mode. 2. Turn on the camera. 3. Frame your subject using the LCD screen. 4. Press Shutter button to start , if you want to stop, press the Shutter button again. NOTE: •...
  • Page 13: Playing The Video Clip

    • Playback the Video Clip 1. Set the Mode selector to Playback mode. 2. Turn on the camera. 3. Use Left/Right button to select the video clip you want to play. 4. Press OK button to start playing video clip, press OK button to pause or press Menu button to stop. NOTE: Icon “...
  • Page 14: Deleting All Pictures And Video Clips

    Deleting one picture or video clip Press OK button to confirm, if you want to cancel deleting, select Cancel or press Menu button. Deleting all pictures and video clips Press OK button to confirm, if you want to cancel deleting, select Cancel or press Menu button. NOTE: The protected file(s) cannot be deleted.
  • Page 15: Using The Rubber Ring

    • Using the Rubber Ring Please check the rubber ring before using. Check for any dirt, grains of sand, hair, dust, salt, thread scraps in the rubber ring and wipe off with a soft cloth or tissue paper. Apply a coat of grease onto the rubber ring •...
  • Page 16: Using Sd/Mmc Card

    • Using the SD (Secure Digital) card or MMC (MultiMediaCard) card Your camera comes with approximately 16MB of built-in flash memory for storing pictures/video clip. You can expand memory using a commercially available SD card/MMC card. The camera senses whether a memory card is inserted, and automatically saves pictures accordingly.
  • Page 17: Memory Card Precautions

    The letters ”DPOF” stand for “Digital Print Order Format”, which is a format for recording on a memory card or other medium which digital camera images should be printed and how many copies of the image should be printed. Then you can print on a DPOF-compatible printer or at a professional print service from the memory card in accordance with the file name and number of copies settings recorded on the card.
  • Page 18: Print Image Matching)

    See the documentation that came with your printer for full details about PRINT Image Matching. Now your digital camera and your printer can speak the same language. PRINT Image Matching technology ensures that PRINT Image Matching-enabled digital cameras and printers work together perfectly to produce the best possible prints.
  • Page 19: Software Included With Your Camera

    • Software Included with Your Camera AQ 2100 Driver Plug & Play removable disk Easy to use, just plug the camera to a computer and use it as a removable disk. Use the Arcsoft® software suite to edit and print the Pictures. PhotoStudio®...
  • Page 20: Transferring Pictures, Video Clips To Your Computer

    9 Transferring Pictures and Video Clips To Your Computer • Before You Transfer Pictures IMPORTANT! - Before you transfer your pictures make sure you have installed the software from the CD. Directory of folder and files AQ 2100 camera will create a directory of folders to store pictures automatically. A folder is created automatically whenever the first picture taken on one particular day, and the name of the folder is based on the date.
  • Page 21: Troubleshooting Problems

    Please also refer to the help files & User Guides that accompany the enclosed applications. For further information and support, please visit our website: http://www.cool-icam.com/ 10 Troubleshooting Problems Problem “AQ 2100 Camera Driver” does not load.
  • Page 22: Getting Help

    • Online Services Website : http://www.cool-icam.com • Customer Support If you have any problem with this product, we want to help. For immediate assistance, please phone the Hotline, send e-mail to the support e-mail address or write to the address shown on the warranty card enclosed.
  • Page 23: Appendix

    • Technical Specifications • Internal Memory: 16MB NAND FLASH • External Memory: support SD/MMC card memory card up to 128MB (not included) • Still Image Resolution (based on 16 MB internal memory) •Fine quality - 1600 x 1200 pixel - Approx. 21 pictures 800 X 600 pixel - Approx.
  • Page 24: Using Your Batteries

    • Using your batteries IMPORTANT NOTE: A fresh alkaline battery provides an output voltage of 1.5V whereas a rechargeable battery available in retail stores generally has a lower output 1.2V. In order to maximize the performance of your AQ 2100 camera, we recommend that you do not use rechargeable batteries.
  • Page 25: Uninstalling The Camera Driver

    • Unstalling AQ 2100 driver For Windows® Users NOTE: The following driver uninstall procedure is for Windows 98SE user only because only Windows 98 needs to install the AQ 2100 driver. 1. Open Add/Removable Program Properties in Control Panel and select AQ 2100 program, then click Add/Remove .

This manual is also suitable for:

Aq 2100
