Installation and Connection

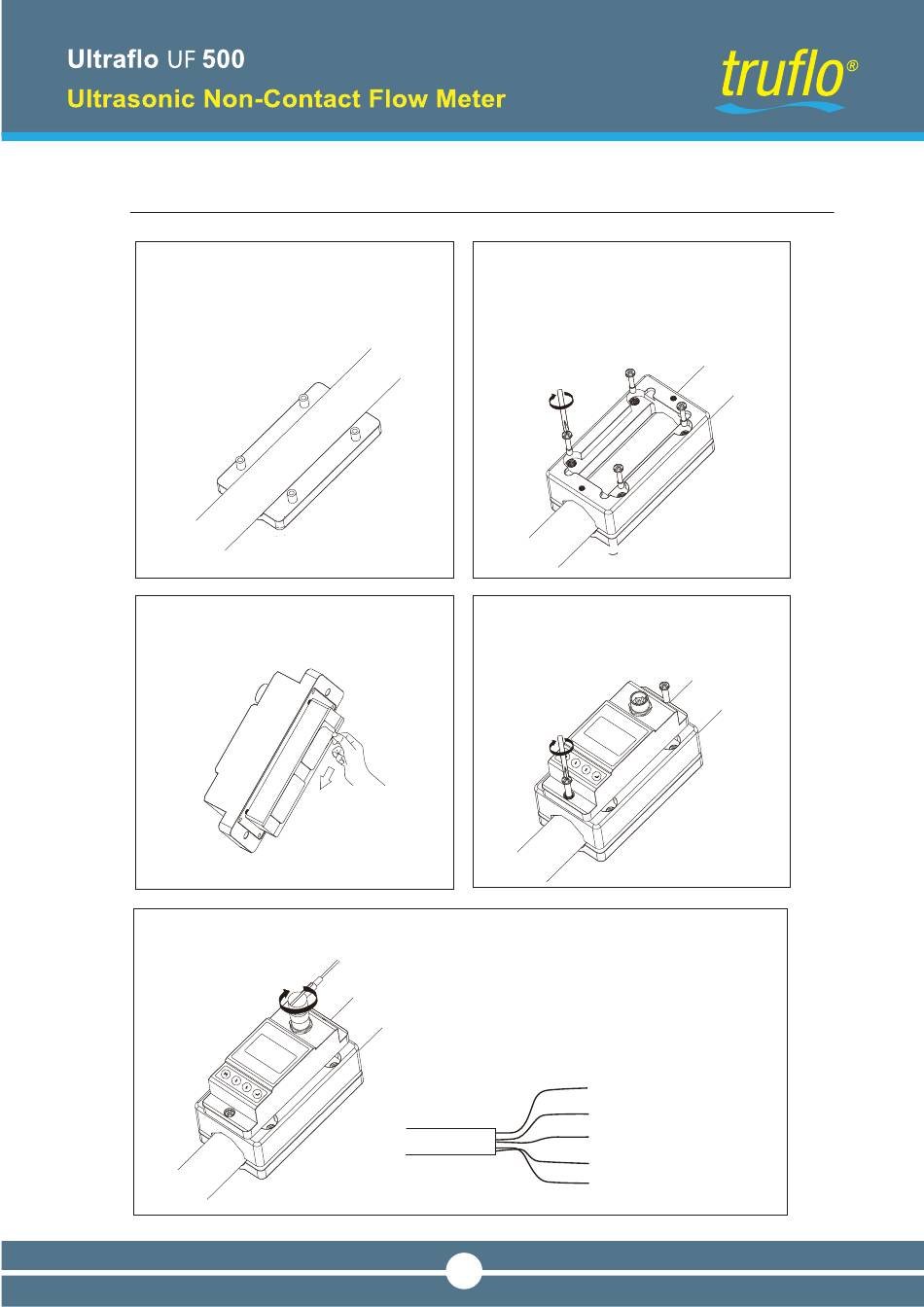

Step1:
Make sure no di rt, pai nt, or other
stai ns on the surface of the tube. Then
position on the underside of the pipe.
Step3:
Slowly remove the protective
cover off the sensor.
Step5:
Connect the M cable.
Step2:
Align the upper bracket to the
pipe position. Using the mounting screws
connect the upper and the lower brackets
together. Ensure that the parts are snug,
but DO NOT over-tighten.
Step4:
Position the display over the
upper bracket and connect using the
mounting screws. DO NOT over-tighten.
Brown DC +
Bl ack DC - / 4-20mA
Gray 4-20mA+
Bl ue RS485 A
Whi te RS485 B
