Summary of Contents for GILBARCO VEEDER-ROOT FlexPay IV

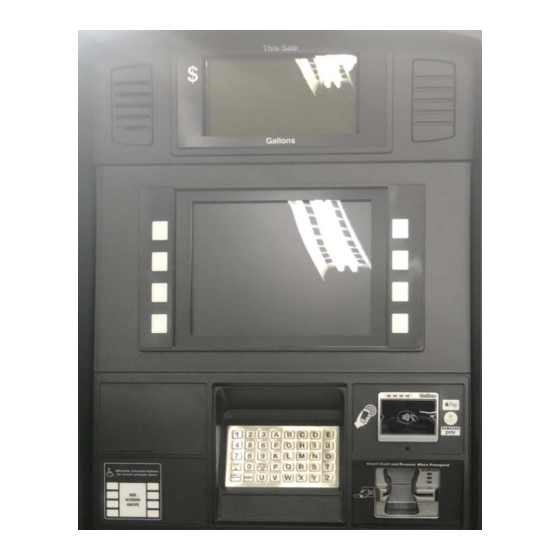

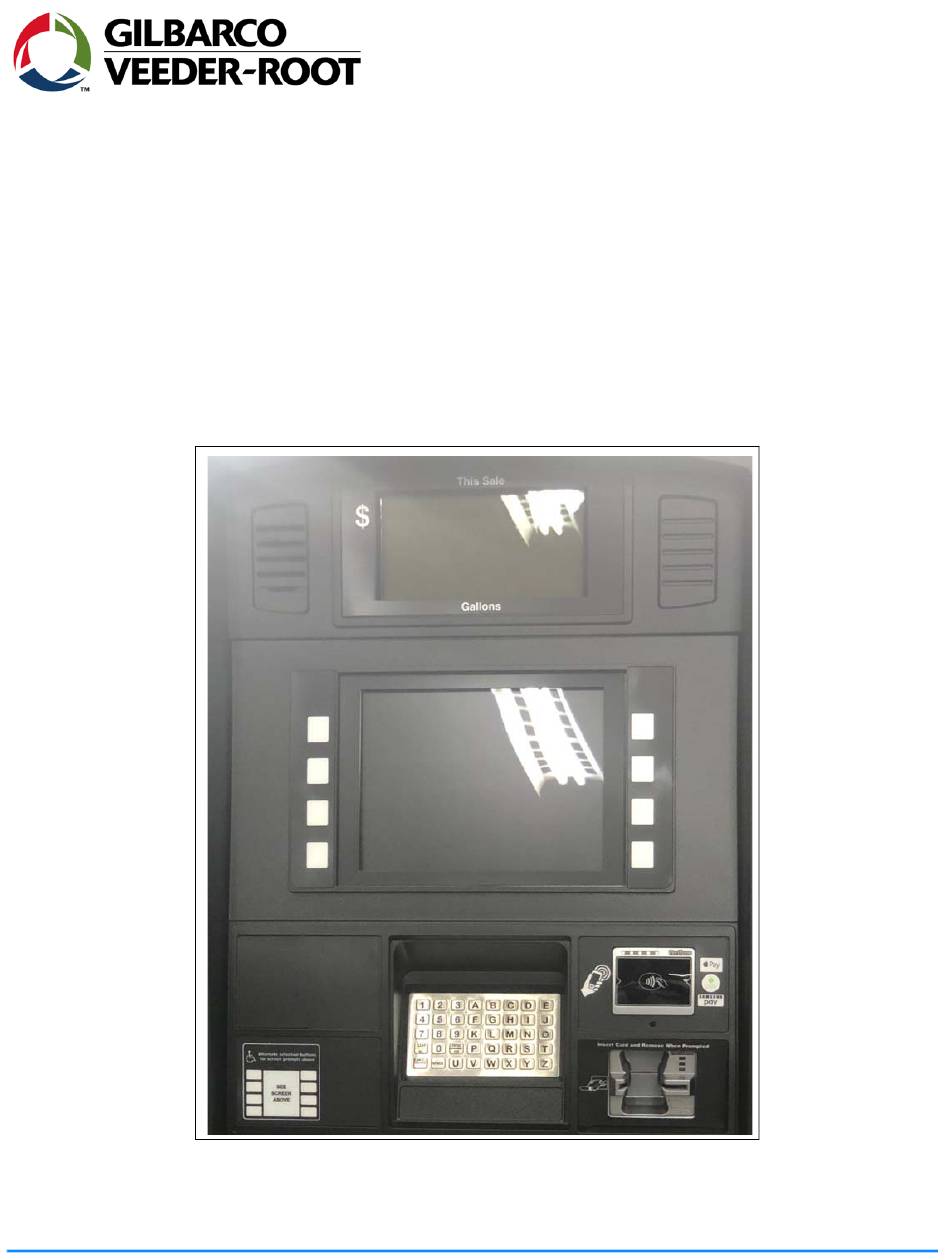

- Page 1 MDE-5491A February 2020 FlexPay IV Numeric Keypad to Alphanumeric ™ Keypad Upgrade Instructions...
- Page 2 This page is intentionally left blank.
-
Page 3: Table Of Contents
Table of Contents PAGES 1-2 SECTION 1 - INTRODUCTION Purpose ............... . 1 Intended Users . - Page 4 This page is intentionally left blank. MDE-5491A...
-
Page 5: Section 1 - Introduction Pages
SECTION 1 - INTRODUCTION Purpose This manual provides instructions for upgrade of a dispenser door from a numeric keypad to a secure alphanumeric keypad for a FlexPay™ IV CRIND®. Intended Users This manual is intended for Gilbarco®-trained and certified Authorized Service Contractors (ASCs). Required Tools •... - Page 6 SECTION 1 - INTRODUCTION This page is intentionally left blank. MDE-5491A...
-
Page 7: Section 2 - Important Safety Information Pages
SECTION 2 - IMPORTANT SAFETY INFORMATION Important Safety Information Notes: 1) Save this Important Safety Information section in a Read the Manual readily accessible location. Read, understand and follow this manual and any other labels or 2) Although DEF is non-flammable, Diesel is flammable. related materials supplied with this equipment. - Page 8 Lockout/Tagout covers servicing and maintenance of machines and equipment in which the unexpected energization or Gilbarco Veeder-Root encourages the recycling of start-up of the machine(s) or equipment or release of stored our products. Some products contain electronics, energy could cause injury to employees or personnel.
-
Page 9: Section 3 - Removing Components Pages
BOM shipped with the kit. Ensure that you carry the recommended spare parts to the installation site. Read and understand all the safety information found in MDE-5221 FlexPay IV Start-up Manual and “Important Safety Information”... -
Page 10: Replacing The E-Cim Or Full Bezel
SECTION 3 - REMOVING COMPONENTS Replacing the E-CIM or Full Bezel Depending on the upgrade, you might need to replace the full bezel or the E-CIM insert only. • If the upgrade includes the printer option, then all components from the old bezel must be uninstalled and re-installed on the new bezel. - Page 11 SECTION 3 - REMOVING COMPONENTS Figure 1: Removing Components from E-CIM Money Volume Board Speaker Speaker/ Intercom Cable Display with PIP3 Contactless Ethernet Cables from UPM and Card ADA Option Reader Keypad Connection Scanner Card Reader Remove the grade select buttons by pushing down from the top of the soda button while pulling from bottom of the soda buttons.
- Page 12 SECTION 3 - REMOVING COMPONENTS Loosen and remove the five Phillips-head screws in the top row on the front of the unit (see Figure Note: Retain the screws for reinstallation. Figure 2: Loosening and Removing E-CIM Mounting Screws E-CIM Mounting Screws (5X) Remove the door node to access the two top-center, E-CIM mounting screws.
- Page 13 SECTION 3 - REMOVING COMPONENTS Figure 3: Removing 1/4-inch Thread Forming Screws Remove 1/4” Thread Forming Screws Two Screws and Washers Beneath the Door Node MDE-5491A...
-
Page 14: Removing Components From Full Bezel
SECTION 3 - REMOVING COMPONENTS Remove the Sliding Printer. Note: Remove the Security Shield before removing the Printer. Figure 4: Removing Printer Screw (4X) Carefully remove the E-CIM from the door and place on a flat surface with the front facing down. Removing Components from Full Bezel To remove the full bezel from the dispenser: Remove cables and components. - Page 15 SECTION 3 - REMOVING COMPONENTS Ensure that you do not interchange the door nodes in a two-sided unit. Remove the bezel from the dispenser. Remove the Sliding Printer. Figure 5: Removing Printer Screw (4X) MDE-5491A...
-
Page 16: Removing Alphanumeric Security Shield
SECTION 3 - REMOVING COMPONENTS Removing the Security Shield Removing the Security Shield allows access to the electronics behind it. To remove the Security Shield: Remove any padlocks and the center security panel as shown in Figure 6. If the dispenser has the printer option with a printer clearance hole, discard the old center panel. - Page 17 SECTION 3 - REMOVING COMPONENTS Remove the left side security panel by removing two bolts and nuts at the top and one thread-forming screw at the bottom. Discard the panel and retain the mounting hardware for reuse. Figure 7: Removing Bolts and Nuts Removing Two Bolts and Nuts Location of...
-
Page 18: Security Shield For Ultra-Hi Units
SECTION 3 - REMOVING COMPONENTS Security Shield for Ultra-Hi Units The Security Shield is the Ultra-Hi security shield upgrade for FlexPay IV. It is applicable for dispensers with a printer and with security shields. To remove the Security Shield, proceed as follows: Remove the center security shield and discard. - Page 19 SECTION 3 - REMOVING COMPONENTS Remove the left side security shield and discard. Figure 9: Removing Padlocks and Left Security Shield Remove Shield Mounting Remove Security Shield Open the power supply cable clamp and allow any cables to hang free. Figure 10: Opening Power Supply Cable Clamp Power Supply Cable Clamp...
- Page 20 SECTION 3 - REMOVING COMPONENTS This page is intentionally left blank. MDE-5491A...
-
Page 21: Section 4 - Installation Pages
SECTION 4 - INSTALLATION E-CIM To install the E-CIM door: Carefully mount the E-CIM on the door. Note: Ensure that the E-CIM gasket seals properly against the door bezel. Insert all 1/4-inch thread-forming screws to mount the E-CIM to the door removed in step page including the 1/4-inch thread-forming screws to connect the PPU bracket at the bottom of the E-CIM. -
Page 22: Cables
SECTION 4 - INSTALLATION Cables To connect the cables: Connect all cable connections from the electronics on the 10.4-inch display E-CIM door. The following are the cable connections: • M14346 video cable from UPM to PIP3 • M14340 Power Cable to PIP3, UPM, and card reader •... - Page 23 SECTION 4 - INSTALLATION Connect the M13119A003 Cable to the left, right, and ADA softkey, PIP3, and then (after installing the E-CIM) to the door node, and J192 for the door switch. Note: The M13119A003 Cable for the new E-CIM is the 10.4-inch display version and it will be included ...
-
Page 24: Full Bezel
Connect all the cables. For more details, refer to the “Cables” section on page Installing the alphanumeric keypad to the FlexPay IV CRIND is now complete. Note: Ensure that the software version on the keypad/UPM is the latest. If not, upgrade to the latest. MDE-5491A... -
Page 25: Section 5 - Reference Information Pages
SECTION 5 - REFERENCE INFORMATION Related Documents Document No. Title MDE-5220 FlexPay IV CRIND Retrofit Kit Installation Instructions for Encore S E-CIM MDE-5290 FlexPay IV 5.7 to 10.4-inch Display Upgrade Kit Abbreviations and Acronyms Term Description Americans with Disabilities Act... - Page 26 SECTION 5 - REFERENCE INFORMATION The Advantage® Series, CRIND®, Eclipse®, Encore®, Gilbarco®, and Passport® are registered trademarks of Gilbarco Inc. Applause™ Media System, E-CIM™, FlexPay™, and Insite360™ are trademarks of Gilbarco Inc. EMV® is a registered trademark of EMVCo LLC. Ethernet® is a registered trademark of Xerox Corporation.
