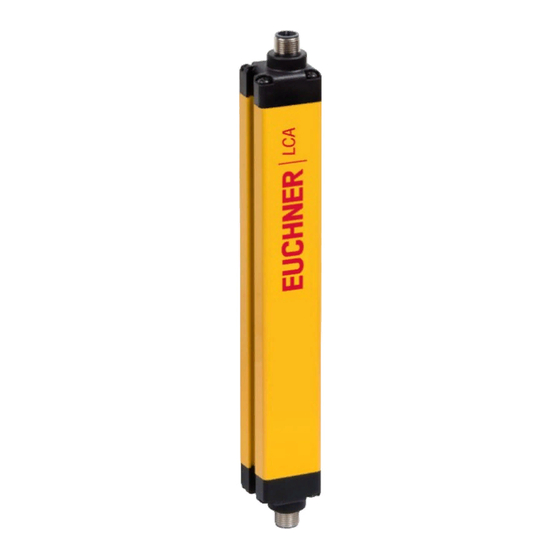

ITEM 156622 LCA-4TR-S2-14-460-AP-156622
Description
Features
Light curtain slave 2
For cascading (series connection)
Resolution 14 mm
Protective field height 460 mm
Range 6 m
With plug connector M12
Installation material is included with the product
Protective function
Figure
finger protection
Cascading (series connection)
Technical data
Accessories
Downloads
Advertisement
Related Manuals for EUCHNER 156622
Summary of Contents for EUCHNER 156622

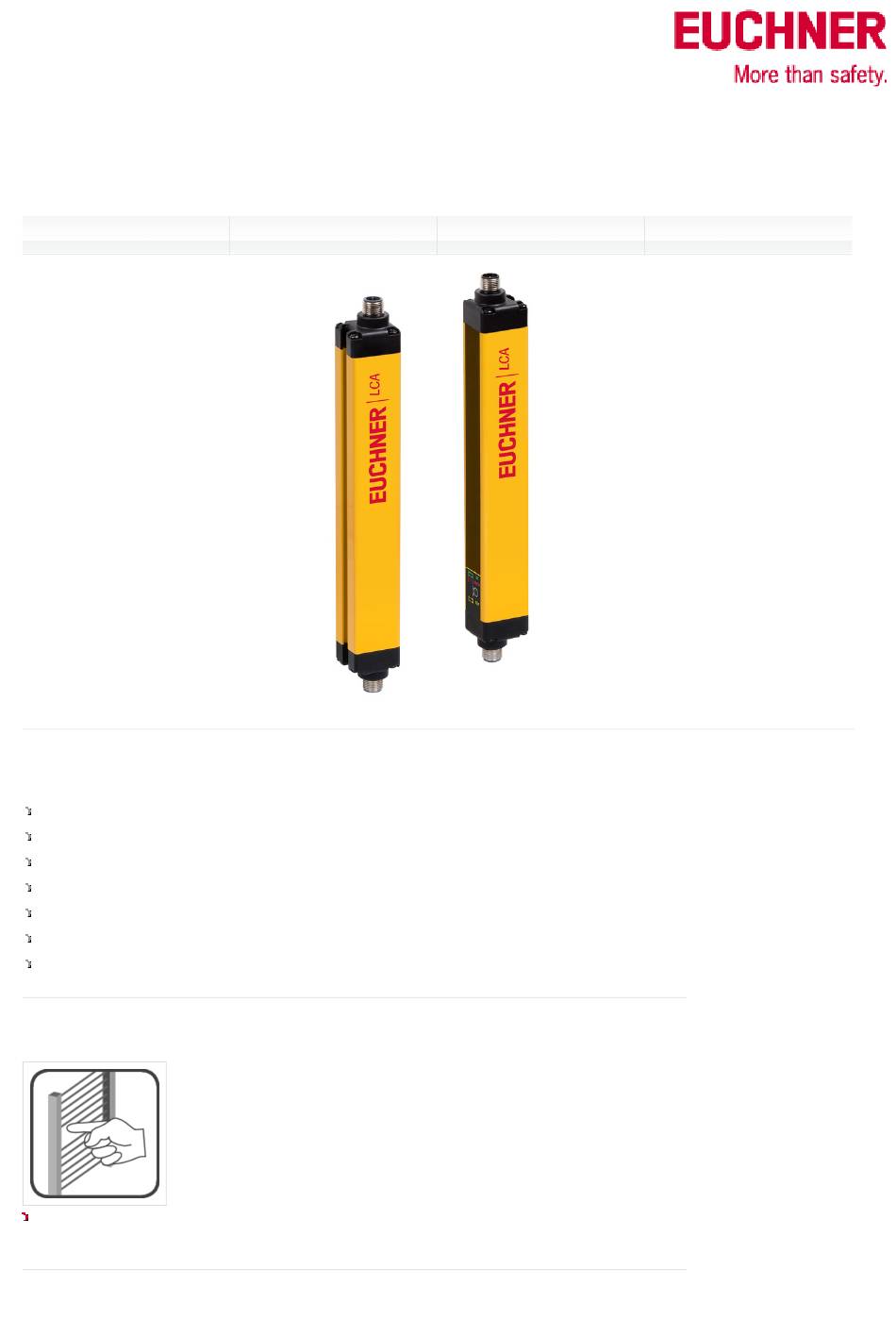

- Page 1 ITEM 156622 LCA-4TR-S2-14-460-AP-156622 Description Technical data Accessories Downloads Features Light curtain slave 2 For cascading (series connection) Resolution 14 mm Protective field height 460 mm Range 6 m With plug connector M12 Installation material is included with the product Protective function...
- Page 2 Figure Following combinations are possible: Variante A: Master-slave 2-slave 1 Variante B: Master-slave 1 LED function display Figure Transmitter Figure Receiver LED OK Normal operation LED ERROR Faults LED STOP Stop LED TEST Test function LED START Start/ restart LED SIGNAL LOW Weak signal Connector assignment transmitter / receiver...
- Page 3 Plug connector Pin Designation Function Conductor (view of coloring of connection side) connection cable 24 V DC Operating voltage, 24 V DC LINE_A Communication MASTER-SLAVE 0 V DC Operating voltage, 0 V DC LINE_B Communication MASTER-SLAVE Function earth (must be connected to meet the EMC requirements) Approvals...
- Page 4 LED indicator Reliability values acc. to EN ISO 13849-1 ESPE type Performance Level PL e 1,38x10 Safety Integrity Level SIL 3 / SILCL 3 Mission time 20 y In cross-section Optional: adjustable holders Master-slave1 and master-slave2-slave1 connections are 2x M12 5-pin Max.
- Page 5 Legende A = Height of the sensor (see technical data) Wiring diagram transmitter...
- Page 6 Wiring diagram receiver Mounting accessories Socket for mounting pillars 202 x 224 x 55 mm 156884 AM-OS-P-AA-156884 Features Socket for mounting pillars Spring-mounted floor plate made of steel Improved compensation of unevenness Adjustable via adjusting screws Height 55 mm Socket for mounting pillars 202 x 224 x 34 mm 156885 AM-OS-P-AB-156885 Features...
- Page 7 Protects against damage Straightforward adjustment using spherical circular level in the cover 8 x vibration damper for protective field heights from 310 - 1,060 mm 156917 AM-OS-D-V08-156917 Features Vibration damper for light grids and light curtains LCA For protective field heights 310 - 1060 mm Packaging unit 8 pcs.
- Page 8 For protective field height 460 mm Miscellaneous accessories Laser alignment aid 156915 AY-OS-LSR-156915 Features Laser alignment aid for light grids and light curtains LCA Light source: Laser diode – wavelength 650 nm Laser class 2 Usable range 100 m Straightforward clamping on the transmitter Test rod Ø...
- Page 9 Connection cable for cascading 2 x M12 female plug, 5-pin Straight plug connector PVC cable Cable length 5 m Connection cable for cascading M12, 10m 156929 C-M12F05-05X034PV10,0-M12F05-156929 Features Connection cable for cascading 2 x M12 female plug, 5-pin Straight plug connector PVC cable Cable length 10 m Connection cable for cascading M12, 25m...
- Page 10 Barrières photoélectriques et rideaux lumineux 157086 03-03/18 2.5 MB Barreras fotoeléctricas y cortinas fotoeléctricas 157087 03-03/18 2.5 MB Light grids and light curtains LCA 157085 03-03/18 2.5 MB Declaration of conformity EU-Konformitätserklärung Doc. no. Version Language Download EU-Konformitätserklärung 2503625 02-08/17 0.2 MB Declaración UE de conformidad Déclaration UE de conformité...
