OPTISENS OAM 1050
OPTISENS OAM 1050
OPTISENS OAM 1050
OPTISENS OAM 1050

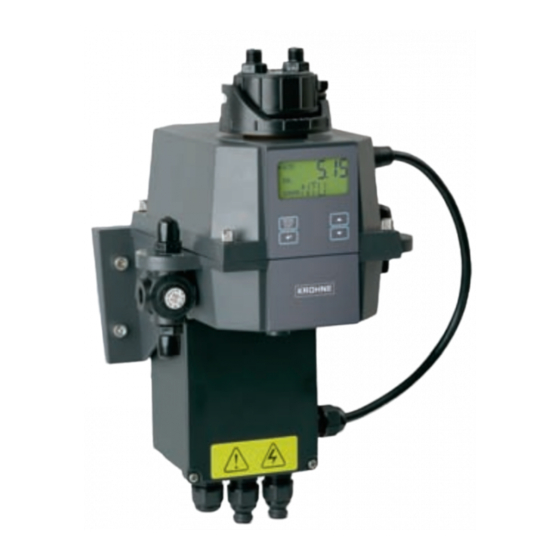

Compact measuring system for turbidity
•
Measurement according to ISO 7027 / US EPA 180
•
Simple calibration with reusable liquid calibration standards
•
Minimum maintenance due to automatic ultrasonic cleaning system
© KROHNE 07/2011 - TD OPTISENS OAM 1050 R02 en
Technical Datasheet
Technical Datasheet
Technical Datasheet
Technical Datasheet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KROHNE OPTISENS OAM 1050
Summary of Contents for KROHNE OPTISENS OAM 1050
- Page 1 Compact measuring system for turbidity • Measurement according to ISO 7027 / US EPA 180 • Simple calibration with reusable liquid calibration standards • Minimum maintenance due to automatic ultrasonic cleaning system © KROHNE 07/2011 - TD OPTISENS OAM 1050 R02 en...
-
Page 2: Table Of Contents
4.5.2 Alarms terminal (signal output) ................... 19 4.5.3 4...20 mA or RS 485 signal output..................19 4.5.4 Connecting the sensor interconnect cable................20 5 Order information 5.1 Order code ........................21 6 Notes www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 3: Product Features
PRODUCT FEATURES OPTISENS OAM 1050 1.1 Turbidity measuring system with innovative cuvette technology The compact turbidity measuring system OPTISENS OAM 1050 OPTISENS OAM 1050 uses the 90° scattered light OPTISENS OAM 1050 OPTISENS OAM 1050 method to scan liquid samples in glass cuvettes. This means that the measurement optics are not directly exposed to the sample and thus require less maintenance. -
Page 4: Options And Variants
• Monitoring of contamination 1.2 Options and variants White light / infrared version The OPTISENS OAM 1050 is available with two different light sources. One with a NIR-LED for compliance with ISO 7027 and alternatively a version with a white light lamp for compliance with US EPA regulations. -
Page 5: Measuring Principle
• NTU (Nephelometric Turbidity Unit) • FNU (Formazin Nephelometric Unit) Figure 1-1: Measuring principle for turbidity measurement 1 Light source 2 Reference sensor 3 Sensor 4 Reflected light beam 5 Particles 6 Emitted light beam 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... -
Page 6: Technical Data
< 40 NTU/FNU: ±2% of reading or ±0.02 NTU/FNU whichever is greater > 40 NTU/FNU: ±5% of reading < 10 NTU/FNU: 0.0001 NTU/FNU Resolution Four decimal places below 10 NTU/FNU, decreases by one decimal place per decade NTU/FNU www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... - Page 7 This device fulfils the statutory requirements of the EC directives. The manufacturer certifies successful testing of the product by applying the CE mark. Listed to UL 61010B-1 and certified to CSA 22.2 No. 1010.1-92 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com...
-
Page 8: Dimensions And Weight
TECHNICAL DATA OPTISENS OAM 1050 2.2 Dimensions and weight Dimensions Weight [mm] ["] [kg] [lb] 13.7 www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 9: Installation
Check for the correct supply voltage printed on the nameplate. 3.2 Intended use The OPTISENS OAM 1050 series consists of a white light version and an infrared version. Both versions are designed to measure online the turbidity of water. Furthermore the two following different measuring ranges are available: 0.02...100 NTU / FNU or 0.02...1000 NTU / FNU... -
Page 10: Installation Order
The desiccant degrades prematurely after removing the protective packaging. Therefore do not open the packaging before usage, install the desiccant pouch quickly and close the device as soon as possible. www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 11: Selecting Site And Mounting
• Refer to chapter "Dimensions" for the device dimensions. • Use screws M6 / ¼" to fix the flow through assembly (position number 2) and M4 (3/16") to fix the field terminal box (position number 3). 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... - Page 12 • Use screws M4 (3/16") to fix the field terminal box at first. • Put the flow through assembly on top of the field terminal box and use screws M6 (¼") to fix it. www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en...
-
Page 13: Connecting The Hoses
• Inner diameter: 4.75 mm or 3/16" • Outer diameter: 8 mm or 5/16" • Flexible and opaque hose material to prevent algae growth if direct sunlight can reach the hose 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... -
Page 14: Drain Vent
In some pressurized systems there may occur a continuous leakage at the drain vent hole. Therefore the scope of delivery contains a seal screw that you can insert into the vent hole and tighten. www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 15: Inserting And Fixing The Flow Through Unit
The device can only detect a new cuvette if it works in the normal operation mode ("AUTO"). If the device operates correctly after inserting a new cuvette, "AUTO" will flash on the display. 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... -
Page 16: Electrical Connections
All of the electrical connections to the device run via the field terminal box. For shipment the manufacturer inserts plugs into the alarm and the 4...20 mA / RS 485 cable bulkhead to waterproof the device. www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 17: Circuit Breaker And Specifications Of Power Supply
Before fixing a cable, look an the labels on the board and especially regard polarities! • To establish the electrical connections in the correct way, follow the order of the following sections and their instructions. 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... -
Page 18: Connecting The Cables In The Field Terminal Box
• Fix the cable on the terminal like in the following drawing (1 to 5). • Use the strain relief strap to reduce the tension on the power terminals (6). • Close the terminal box and assure that it is properly sealed. www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 19: Alarms Terminal (Signal Output)
• Do not run 4...20 mA or RS 485 cables in the same conduit as power as this could lead to signal interferences. • When using the RS 485 interface, equip the last device on each bus with a 120 Ω terminating resistor to eliminate signal reflection on the line. 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... -
Page 20: Connecting The Sensor Interconnect Cable
Always connect the sensor interconnect cable with the upper part of the device last of all! The reason is that if you connect the sensor interconnect cable before the internal wiring, energising the device with power could destroy or damage the device! www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... -
Page 21: Order Information
100...240 VAC Options Options Options Options None With calibration kit (0.02, 10, 100 NTU/FNU) With calibration kit (0.02, 10, 1000 NTU/FNU) Documentation Documentation Documentation Documentation None English German VGA S Order code 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com... -
Page 22: Notes
NOTES OPTISENS OAM 1050 www.krohne.com 07/2011 - TD OPTISENS OAM 1050 R02 en... - Page 23 NOTES OPTISENS OAM 1050 07/2011 - TD OPTISENS OAM 1050 R02 en www.krohne.com...
- Page 24 Measuring systems for the oil and gas industry • Measuring systems for sea-going tankers Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 D-47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
