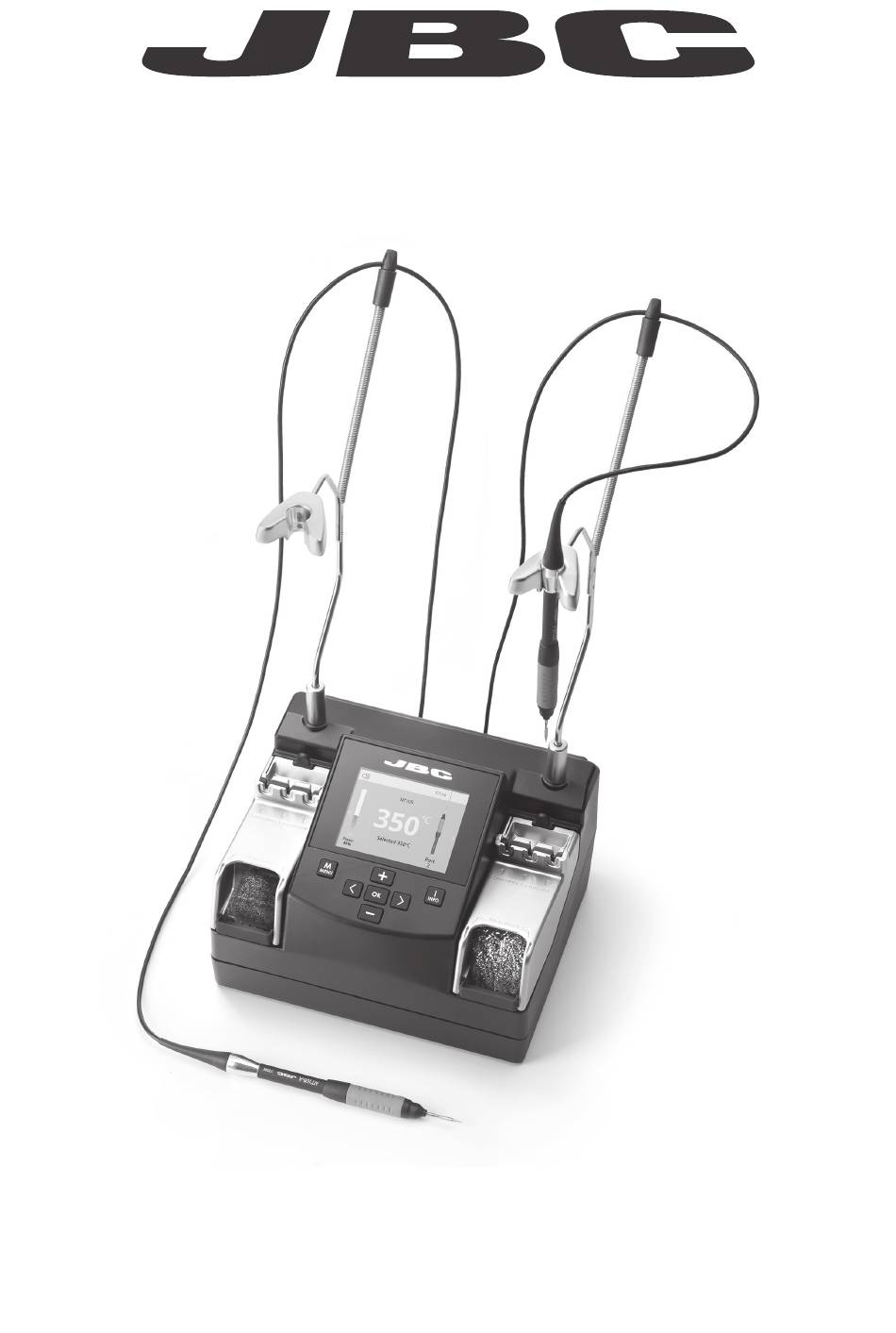

- Page 1 Nano Soldering station Ref. NANE-B...
-
Page 2: Packing List

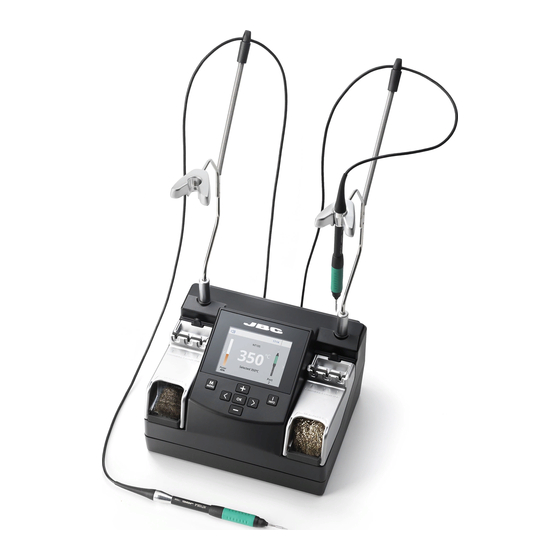

C105-107 x1 C105-112 x1 C105-113 x2 Brass Wool ....1 unit Power Cord ....1 unit Manual ......1 unit Ref. CL6210 Ref. 0009417 (100/120V) Ref. 0016765 0009401 (230V) w w w.jbctools.com Nano Soldering station Ref. NANE-B 2 2 2... - Page 3 w w w.jbctools.com Features Cable collector Accessories not included: Stand: Tool extension cord (1m) Intelligent Heat Ref. A1205 Management Cartridge extractor Process Pedal and tip Screen: Ref. P-005 aligner 2.8 Color TFT Brass Metal wool brush Puts the tool into hibernation mode USB-A Nano Handle...
-
Page 4: Cable Assembly
Tool Holder assembly Cable assembly For Nano Tweezers For Nano Soldering Iron Changing the tip cleaning system Replace the tip cleaning system: - Brass wool - Inox wool - Metal brush... -
Page 5: Changing Cartridges
It is essential to insert the cartridges as far as the mark for a proper connection. Compatible cartridges Mark The NANE-B station works with C105 cartridge range. See the full range in www.jbctools.com and find the model that best suits your soldering needs. 0,2 x 0,1 ø 0,6 ø... -
Page 6: Operation
Operation The JBC Exclusive Heating System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. Tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase tip life by 5. -
Page 7: Work Screen
Work Screen The NANE-B offers an intuitive user interface which provides quick access to station parameters. Status Bar 17:14 NT105 Tool ºC connected Power Temp. Levels indicator Power Port Displayed when temperature levels are activated Station Information... -
Page 8: Process Analysis
Process analysis By pressing Graphics in the main MENU, temperature and power figures in real time are displayed for each port. This helps you decide which tip to use to obtain the best quality solder joint. Graphics 17:14 Power (%) Temperature Power Temp... - Page 9 Soldering Net Remotely manage and monitor as many stations as your PC can handle. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B connector and the PC will automatically detect them.
- Page 10 Control Unit RS-232 connection Update the station software 1. Download the JBC Updater software from 2. Insert the USB flash drive. www.jbctools.com/software.html and save The icon is diplayed while updating. it on a USB flash drive. Preferably one with no other files.
-
Page 11: Maintenance
If necessary use a tool to lever it off. replace it in the station. Fuse holder Fuse holder Fuse - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. 11 11 11... - Page 12 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 13: Exploded View
w w w.jbctools.com Exploded View... - Page 14 Notes 14 14 14...
- Page 15 w w w.jbctools.com...
-
Page 16: Specifications
- RJ12 connector for Robot Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
