jbc NANE-B Manual

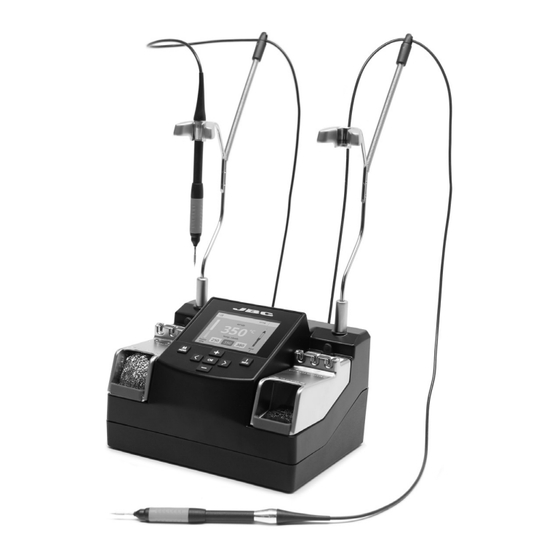

Nano soldering station
Hide thumbs Also See for NANE-B:
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com
English
Nano Soldering station
Ref. NANE-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANE-B and is the answer not in the manual?

Questions and answers

Related Manuals for jbc NANE-B

Summary of Contents for jbc NANE-B

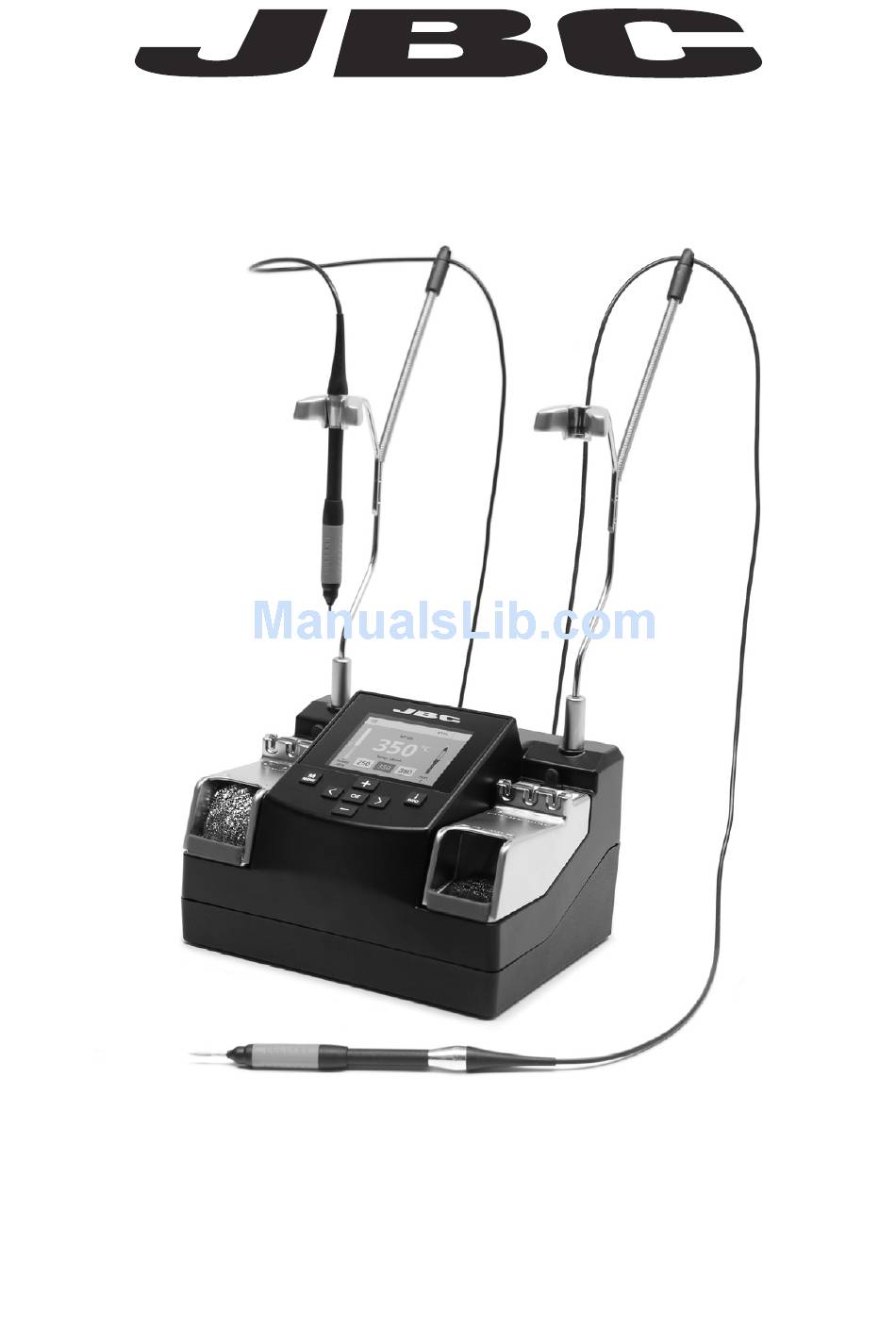

  • Page 1 English Nano Soldering station Ref. NANE-B...

  • Page 2: Packing List

    Brass Wool ....1 unit Power Cord ....1 unit Manual ......1 unit Main switch Ref. CL6210 Ref. 0009417 (100/120V) Ref. 0016765 RJ12 connector 0009401 (230V) for Robot Power socket w w w.jbctools.com Equipotential Pedal connector connectors Nano Soldering station Ref. NANE-B...

  • Page 3: Cable Assembly

    It is essential to insert the cartridges as far as the mark for a proper connection. Mark Compatible cartridges The NANE-B station works with C105 cartridge range. Changing the tip cleaning system See the full range in www.jbctools.com and find the model that best suits your soldering needs. ø 0,6 Replace the tip cleaning system: ø...

  • Page 4: Operation

    Work Screen The JBC Exclusive Heating System The NANE-B offers an intuitive user interface which provides quick access to station parameters. Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. Tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase tip life by 5.

  • Page 5: Process Analysis

    This helps you decide which tip to use to obtain the best quality solder joint. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B connector and the PC will automatically detect them.

  • Page 6: Maintenance

    If necessary use a tool to lever it off. and replace it in the station. Updater - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.

  • Page 7: Exploded View

    w w w.jbctools.com Safety Exploded View It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.

  • Page 8: Specifications

    w w w.jbctools.com Specifications NANE-1B 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V NANE-2B 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V NANE-9B 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V - Weight: 1.8 Kg (4.0 lb) - Dimensions: 170 x 90 x 135mm - Output Peak Power: 14W per tool - Temperature Range: 90-450°C (190-840ºF) ±5% - Idle Temp.
  • Page 9 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
