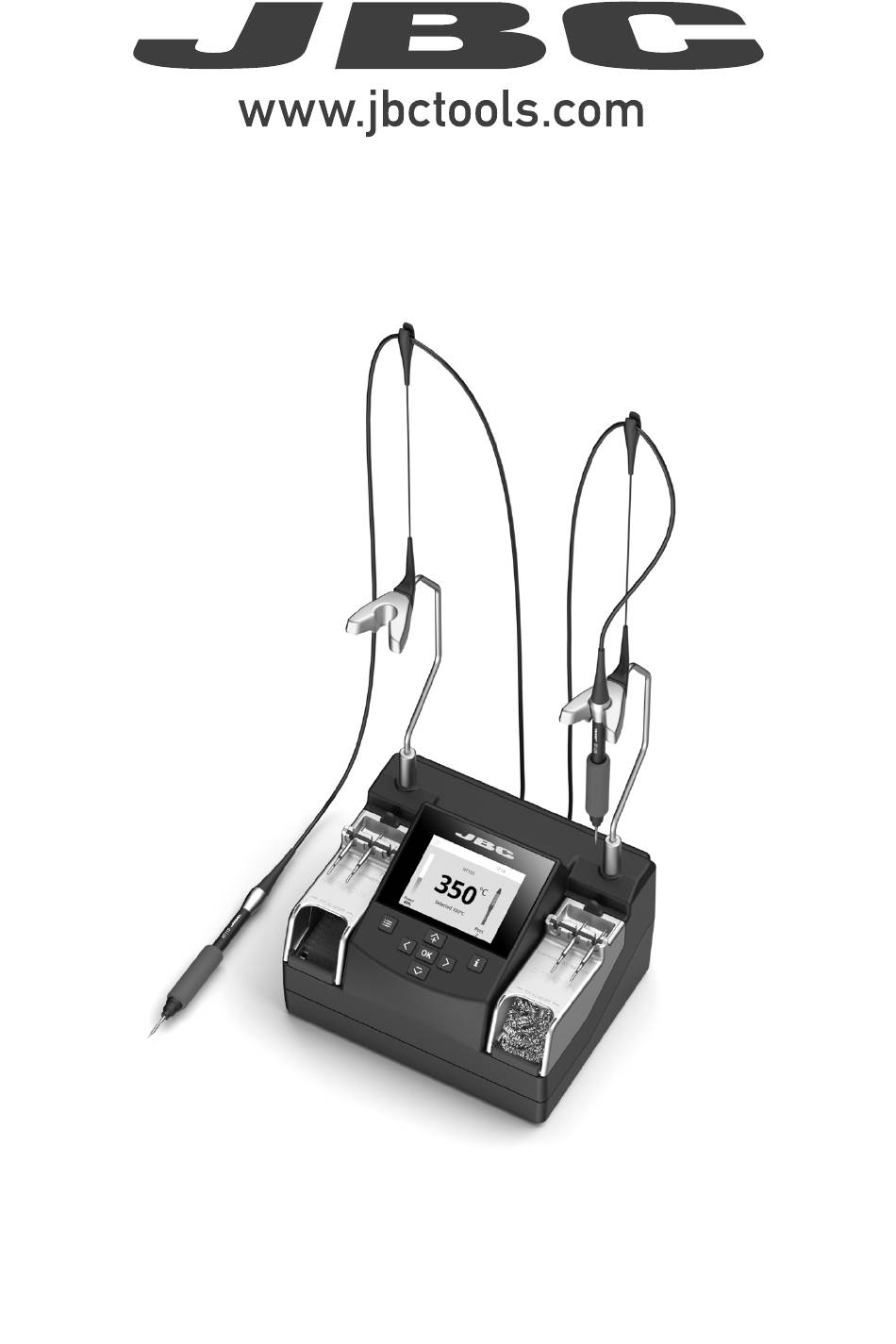

INSTRUCTION MANUAL
NANE
2-Tool Nano Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc NANE

Summary of Contents for jbc NANE

  • Page 1 INSTRUCTION MANUAL NANE 2-Tool Nano Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: - NANE-9C (100V) - NANE-1C (120V) - NANE-2C (230V) Packing List The following items are included: 2-Tool Nano Nano Handle ....2 units Cabel Collector Control Unit ....1 unit Ref. NT115-A and Stand ....2 units Ref.

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Cable Collector 100 mm Accessories not included: Tool extension cord (1m) Ref. A1205 80 mm Stand: Intelligent Heat Management 60 mm NT115 Nano Handle 50 mm Process Screen: 2.8 Color TFT...
  • Page 4 Tool Stand Assembly Tool Stand Replacement Loosen the screw (1) and withdraw the tool Insert the new tool stand (3) and tighten the stand (2) . screw (4). 4 4 4...

  • Page 5: Work Screen

    para manuales - color gris 200 mm Work Screen 130 mm 130 mm The work screen offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 100 mm Status Bar 17:14 80 mm Tool NT115 in use ºC 60 mm...

  • Page 6: Advanced Functionalities

    This helps you decide how to adjust your process or which tip to use to obtain the best quality soldering. Graphics Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station.

  • Page 7: Operation

    200 mm Operation 130 mm 130 mm JBC’s Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. 100 mm As a result, tip life increases by 5.

  • Page 8: Changing Cartridges

    Changing Cartridges Save time and change cartridges safely without having to switch the station off. Removing Inserting Aligning Place the cartridge into the Push the new cartridge into the Use the holes to rotate the extractor slot (1) and pull the handle until the reference ring*.

  • Page 9: Changing Grips

    para manuales - color gris 200 mm Changing Grips 130 mm 130 mm 1. Inserting 2. Removing Tab First, put the slide-on Hold the grip and pull tabs into the new grip, the tab. Use pliers if 100 mm then push the grip necessary.

  • Page 10: Maintenance

    2. Press the new fuse into the fuse holder fuse. If necessary use a tool to lever it off. and replace it in the station. Fuse holder Fuse holder Fuse - Repairs should only be performed by a JBC authorized technical service.
  • Page 11 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 12 NANE 2-Tool Nano Soldering Station Ref.: NANE-9C 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref.: NANE-1C 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref.: NANE-2C 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V - Output Peak Power: 14W per tool - Temperature Range: 90 - 450 °C / 190 - 840 ºF...

This manual is also suitable for:

Nane-9cNane-1cNane-2c
