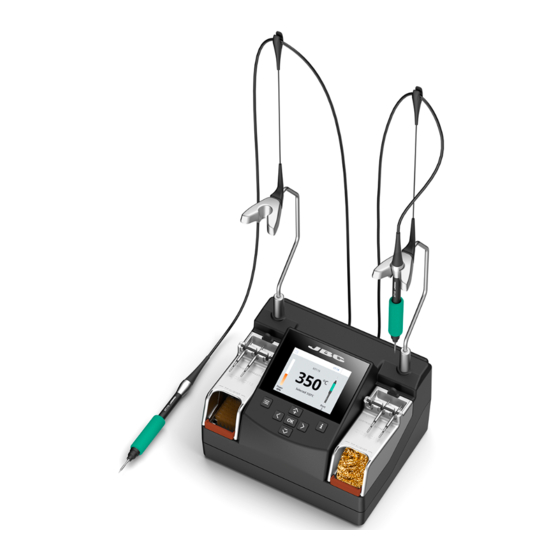

jbc NAN Instruction Manual

2-tool nano soldering station
Hide thumbs Also See for NAN:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
NAN
2-Tool Nano Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAN and is the answer not in the manual?

Questions and answers

Related Manuals for jbc NAN

Summary of Contents for jbc NAN

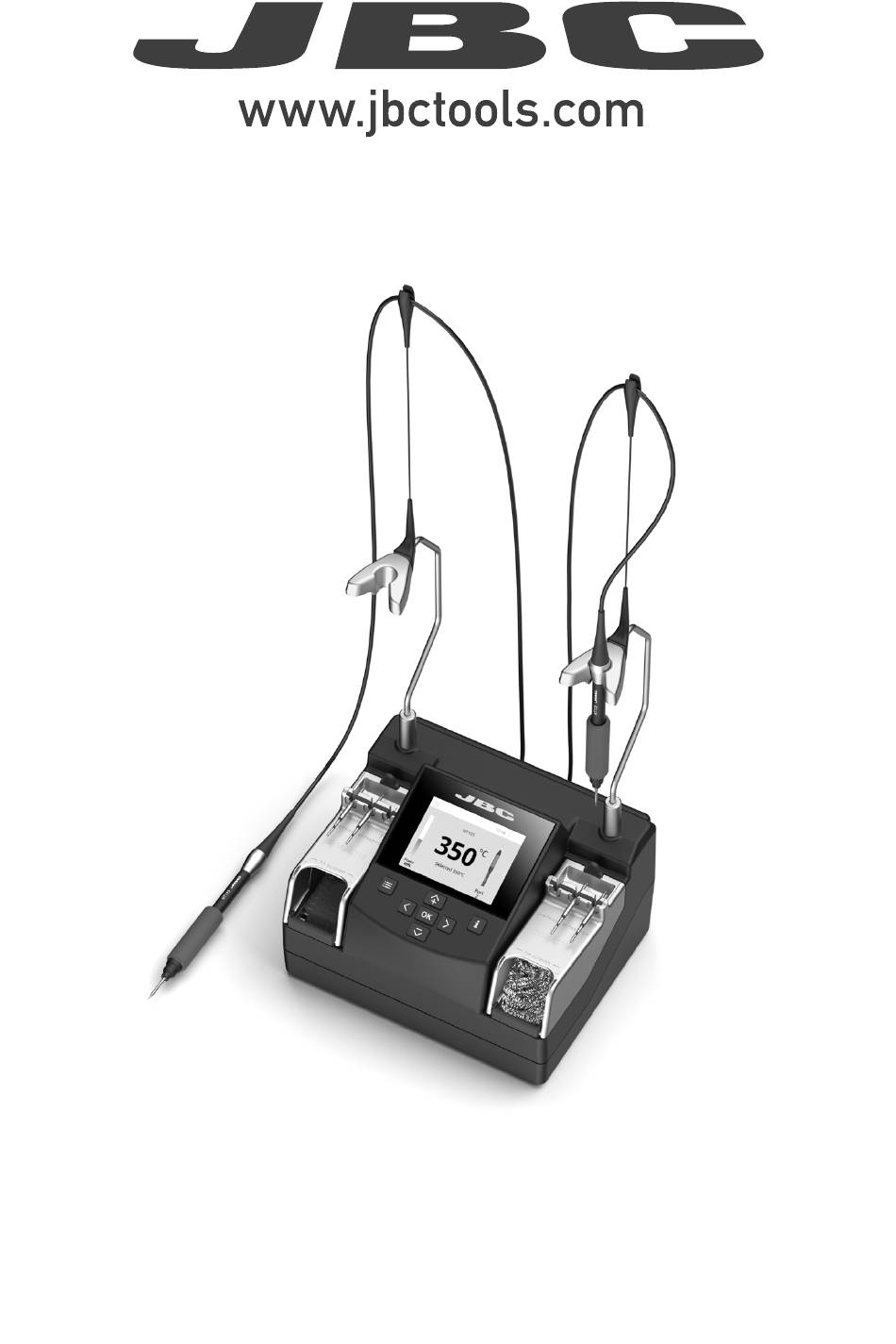

  • Page 1 INSTRUCTION MANUAL 2-Tool Nano Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: - NANE-9C (100V) - NANE-1C (120V) - NANE-2C (230V) Packing List The following items are included: Control Unit ....1 unit Nano Handle ....2 units Cabel Collector ..2 units Ref. NT115-A Ref.

  • Page 3: Features And Connections

    w w w.jbctools.com Features and Connections Cable Collector Accessories not included: Tool extension cord (1m) Ref. A1205 Stand: Intelligent Heat Management Process Screen: 2.8 Color TFT Cartridge Extractor and Tip Aligner Brass Wool Metal Brush Nano Handle Nano Handle USB-A Connector Ref.
  • Page 4 Assembly the Tool Holder Replacing the Tool Holder Loosen the screw and withdraw the Tool Insert the new Tool Holder and tighten the Holder. screw. 4 4 4...
  • Page 5 w w w.jbctools.com Work Screen DDE Work Screen The NANE-C offers an intuitive user interface which provides quick access to station parameters. The DDE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Default PIN: 0105 Status bar Status Bar 17:14...

  • Page 6: Advanced Functionalities

    Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station. Update System notifications The following icons will be displayed on the screen’s status bar.

  • Page 7: Operation

    Operation The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2.
  • Page 8 Chip Compoments Rework Process using Tweezers and Pedal The Adjustable Nano Tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using the P-405 pedal connected to the station. Connections Pedal Ref.
  • Page 9 For this operation JBCs Desoldering Station* is needed. Solder Paste Dispensing Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM Solder Paste Dispenser* is recommended. * Avialable at www.jbctools.com 9 9 9...
  • Page 10 Placing* Do not press the pedal. Use the tool to position the component on the previously tinned pad. Note: The inactive tool prevents the component from heating up prematurely. Soldering* Once in position press and hold the pedal to activate the tool and perform the soldering.

  • Page 11: Changing Cartridges

    w w w.jbctools.com Changing Cartridges Save time and change cartridges safely without having to switch the station off. 1. Removing 2. Inserting 3. Aligning Place the cartridge into the Push the cartridge into the Use the holes to rotate extractor slot (1) and pull the handle until the mark*.

  • Page 12: Changing Grips

    Changing Grips 1. Inserting 2. Removing Tabs First put the slide-on Hold the grip and pull tabs into the new grip, the tab. Use a pliers if then push the grip necessary with the tabs onto the handle. Tabs Grip for NT115 Ref.

  • Page 13: Maintenance

    If necessary use a tool to lever it off. 2. Press the new fuse into the fuse holder and replace it in the station. Fuse holder Fuse - Repairs should only be performed by a JBC authorized technical service.
  • Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 15 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
  • Page 16 Notes...
  • Page 17 w w w.jbctools.com Notes 17 17...
  • Page 18 Notes...

  • Page 19: Specifications

    w w w.jbctools.com Specifications 2-Tool Nano Soldering Station Ref.: NANE-9C 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref.: NANE-1C 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref.: NANE-2C 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V - Output Peak Power: 14W per tool - Temperature Range: 90 - 450 °C / 190 - 840 ºF - Idle Temp.
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
