Summary of Contents for jbc NANE-C

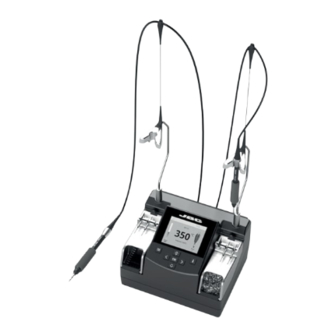

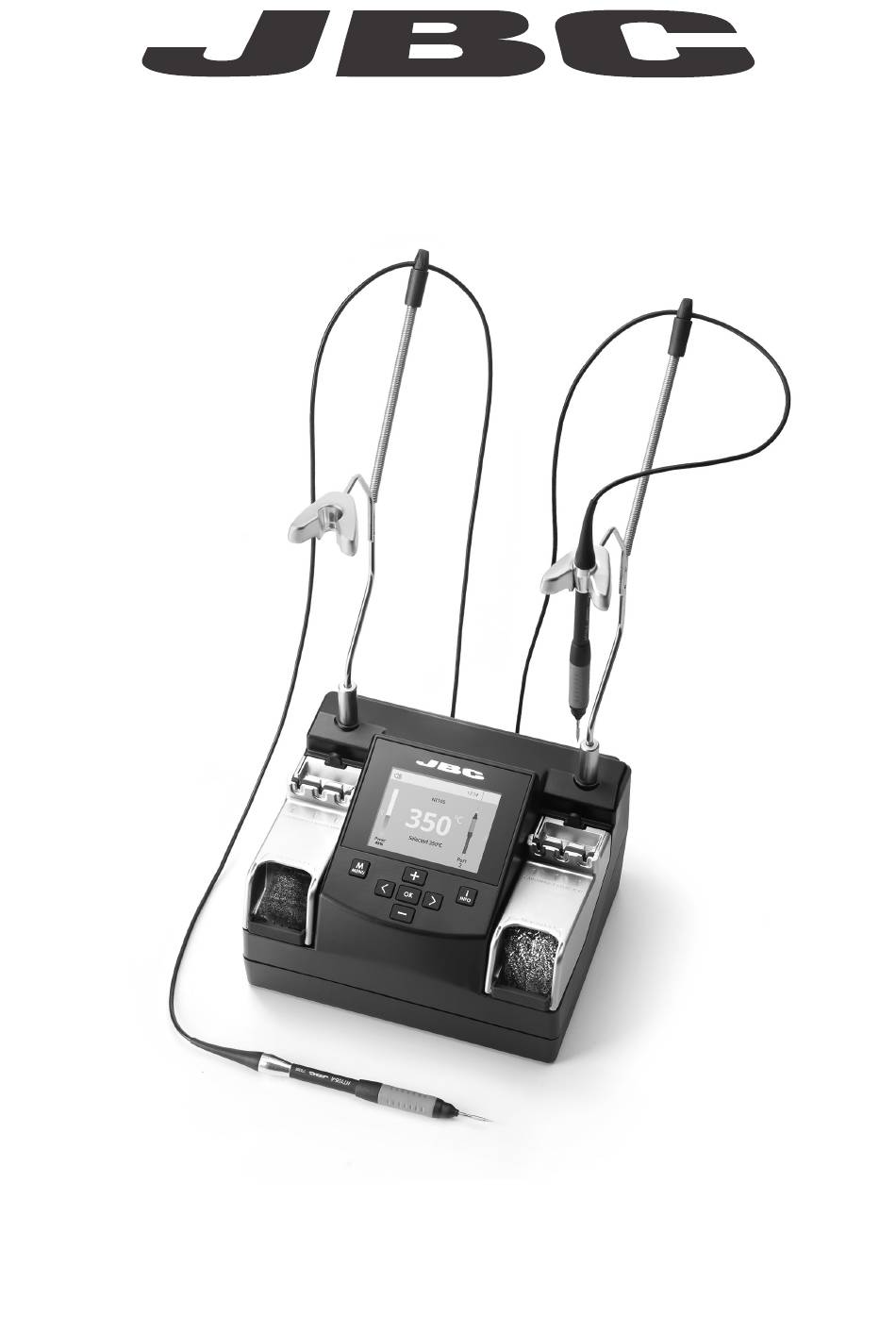

- Page 1 INSTRUCTION MANUAL Nano Soldering Station Ref. NANE-C...
-
Page 2: Packing List
Ref. C115-105 x2 C115-113 x2 Brass Wool ....1 unit Power Cord ....1 unit Manual ......1 unit Ref. CL6210 Ref. 0009417 (100/120V) Ref. 0021449 0009401 (230V) w w w.jbctools.com INSTRUCTION MANUAL Nano Soldering station Ref. NANE-C 2 2 2... - Page 3 w w w.jbctools.com Features Cable collector Accessories not included: Stand: Tool extension cord (1m) Intelligent Heat Management Ref. A1205 Cartridge extractor Process Pedal and tip aligner Screen: Ref. P-005 2.8 Color TFT Brass wool Metal brush Used for soldering chip components with Nano Tweezers (See page No.
-
Page 4: Cable Assembly
Tool Holder assembly Cable assembly For Nano Tweezers For Nano Soldering Iron Changing the tip cleaning system Replace the tip cleaning system: - Brass wool - Metal brush 4 4 4... -
Page 5: Changing Grips
w w w.jbctools.com Changing grips 1. Push the grip with 2. To remove the tabs, the tabs onto the hold the grip and handle. pull them out. Use a pliers if necessary. Grip for NT115-A Nano handle Changing cartridges Save time and change cartridges safely without having to switch the station off. Removing Inserting Aligning... -
Page 6: Operation
Operation The JBC Exclusive Heating System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase the tip life by 5. -
Page 7: Work Screen
Work Screen The NANE-C offers an intuitive user interface which provides quick access to station parameters. Original PIN: 0105 Status bar 17:14 NT115 Tool in use ºC Temp. Level s Power indicator Power Por t Displayed if... - Page 8 Soldering Chip components using Tweezers and pedal The Adjustable Nano Tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using the P-005 pedal connected to the station. Pedal Ref. P-005 8 8 8...
- Page 9 w w w.jbctools.com Use the tool to position the component on Use the tool to position the component on Use the tool to position the component on the previously tinned pads. the previously tinned pads. the previously tinned pads. Once in position, press and hold the pedal to Once in position, press and hold the pedal to Once in position, press and hold the pedal to perform the soldering...
-
Page 10: Process Analysis
Process analysis By pressing Graphics in the main MENU, temperature and power figures in real time are displayed for each port. This helps you decide which tip to use to obtain the best quality solder joints. Graphics Power (%) 17:14 Power (%) Temperature Power... - Page 11 Soldering Net Remotely manage and monitor as many stations as your PC can handle. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B connector and the PC will automatically detect them.
- Page 12 Robot Control Unit RS-232 connection Update the station software 1. Download the JBC Update File from 2. Insert the USB flash drive to the station. www.jbctools.com/software.html and save The icon is diplayed while updating. it on a USB flash drive. Preferably one with no other files.
-
Page 13: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 15 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
-
Page 16: Exploded View
Exploded View... - Page 17 w w w.jbctools.com 17 17 17...
-
Page 18: Specifications
- RJ12 connector for Robot Complies with CE standards ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
