Ametek ECLIPSE II PLUS Owner's Manual page 52

193111-121

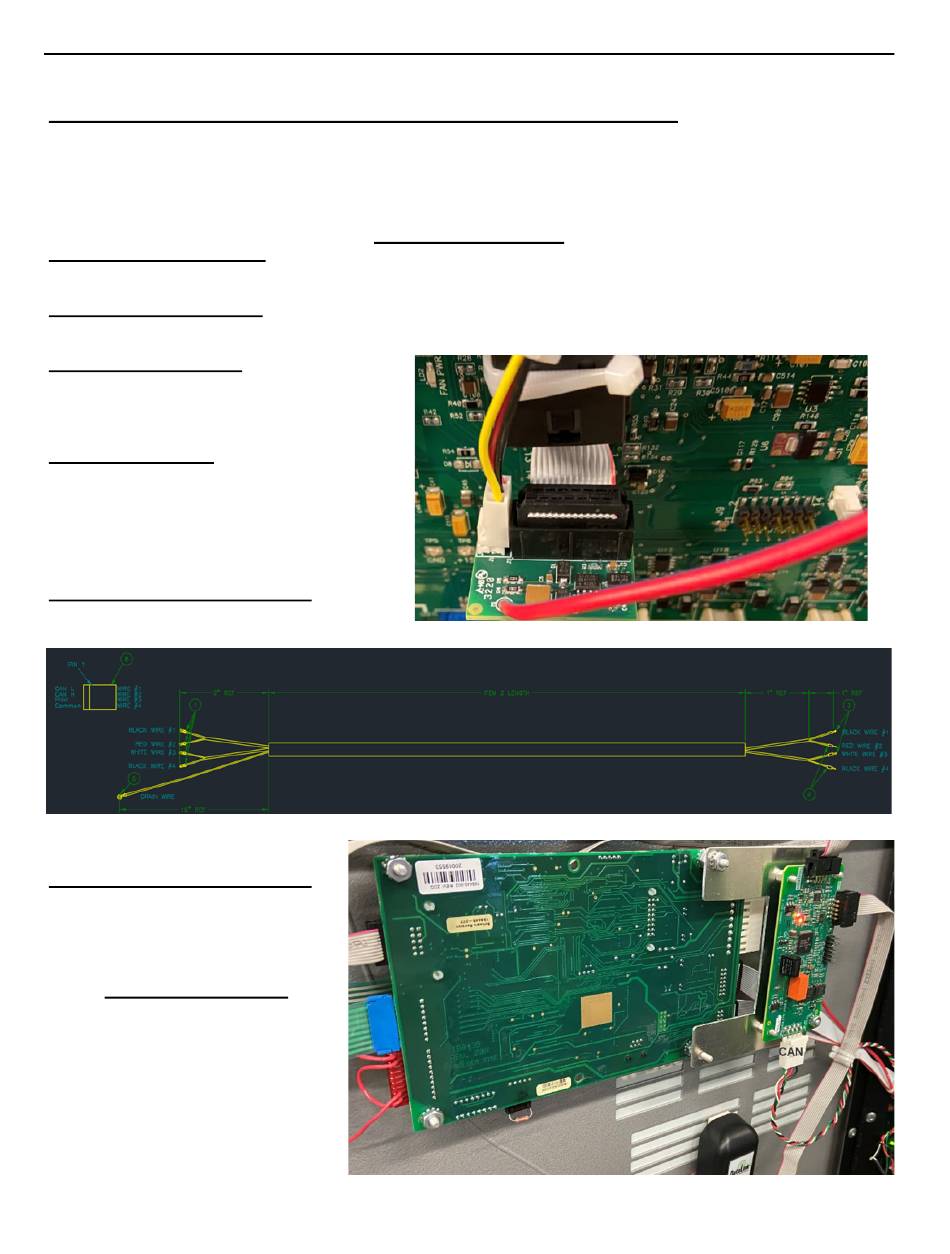

BMS CHARGING
BMS BATTERY CHARGING READY POWER LITHIUM BATTERIES
The Eclipse II Plus CAN charger will have changes in the control hardware and software. These changes enable
the charger to charge a Ready Power battery utilizing the BMS to control the output of the charger.
Primary Board: 198512-200
Physical changes to the board require a full 198512-200 assembly
Control Board: 198440-200
Physical changes require the full 198440-200 assembly
Breakout Board: 199666
Slightly larger than the standard breakout for the
HE chargers and with a red wire soldered to it.
Relay Board: 198862
Same board as the one shipped with
HE chargers.
CAN Wire Assembly: 199593-001
CAN Interface Assembly: 199566
Connects the CAN wires to the control.
Software Changes:
Primary Board Firmware: 199680-001
Control Board Firmware: 198877-014A
52
Hardware Changes:
05/18/2021
