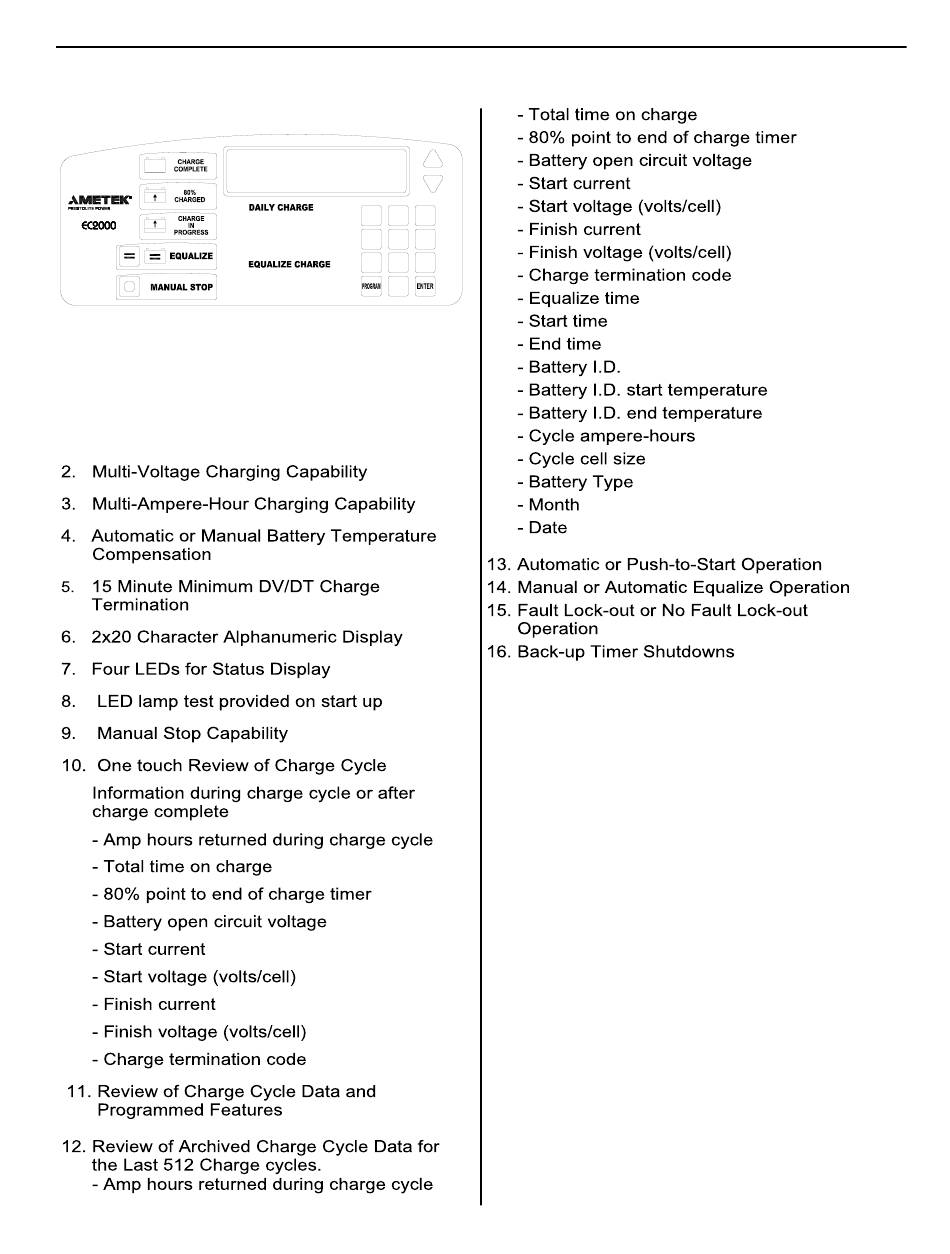

EC2000 CONTROL FEATURES

Figure 7-1

Main Features

1. 25 A/100AH high rate opportunity charging output.
05/18/2021
1 2 3
Connect battery to
AH TIME TIME
RET ON CHG >80%
charger. Charger will
4 5 6
start automatically
BAT START START
after a brief delay.
OCV AMPS V/C
7 8 9
FINISH FINISH TERM
AMPS V/C CODE
Connect battery to
0
charger and press
CYCLE
the EQUALIZE key.
REVIEW
EC2000 CONTROL FEATURES
17. Failure Mode Diagnostics
- High Battery Reject
- Low Battery Reject
- Battery Reject
- Battery Over-temperature
- Setup Error
- Low Voltage S.D.
- Charge Curve Error
- Low Current S.D.
- Backup Timer
- Manual Stop
- Fault Lockout
- Over Maximum Amp Hour Returned S.D.
- Charger Overtemperature S.D.
- DIDT S.D.
- Phase Error
18. One Part Number Control is User/Factory
programmable for 6-9-12-18-24-36-40 Cells.
19. Adjustable 8-99 Hour Refresh Charge Delay
20. Voltage Time Feature (DV/DT Disable)
21. "Cell Forming" Feature (Programmable from
193111-121
21
