STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA
1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:
a. Remove the camera's dome to access the joystick and OSD
control on the base of the camera.
b. Use the OSD Switch to switch the camera's signal.
• To switch the camera to HD-TVI mode, press OSD joystick to the
left for 5 seconds.
• To switch the camera to HD-Analog mode, press OSD joystick to
the right for 5 seconds.
• To switch the camera to CVBS mode, press OSD joystick up for
5 seconds.
• To switch the camera to HD- CVI mode, press OSD joystick
down for 5 seconds.
CVBS(960H)
U
Enter
R
L
HD-TVI HD-A
D
HD-CVI
U

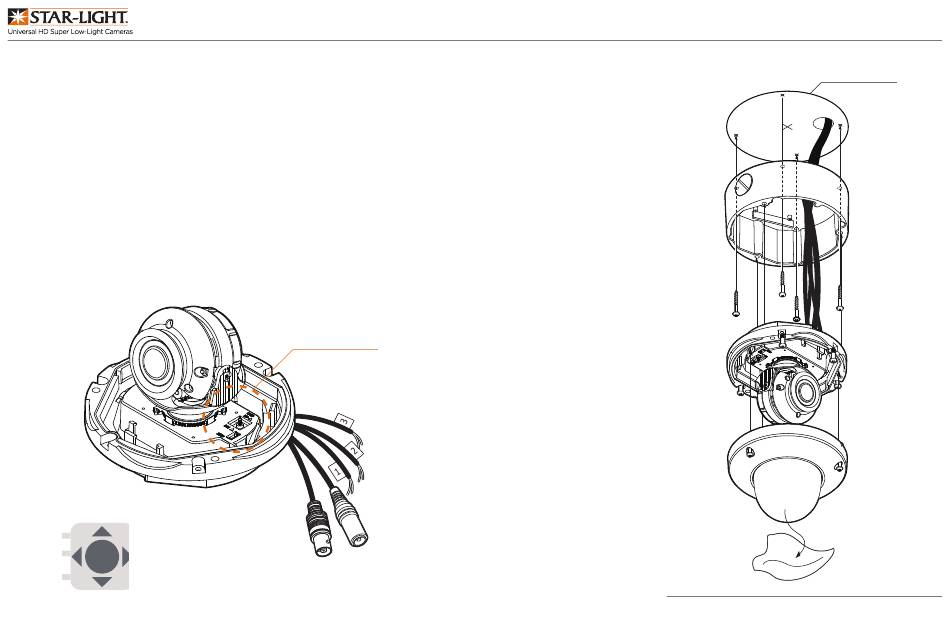

STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected,
Secure the camera module to the junction box using three (3) screws.
2. Adjust the camera's pan, tilt and position to achieve the desired view.
The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Rotation: 0° ~ 350°
3. Once the installation is complete, remove the protective film from the
camera's dome cover.
