What's in the shipping package?
The package includes the following items:

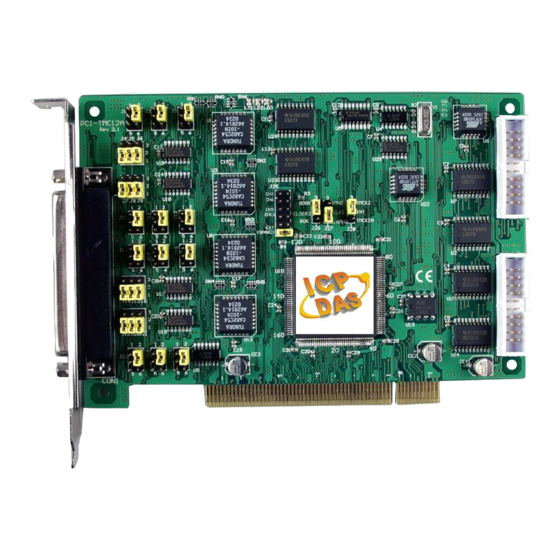

PCI-TMC12A
Installing Windows Driver
Step 1: Setup the Windows driver. The driver is located at:

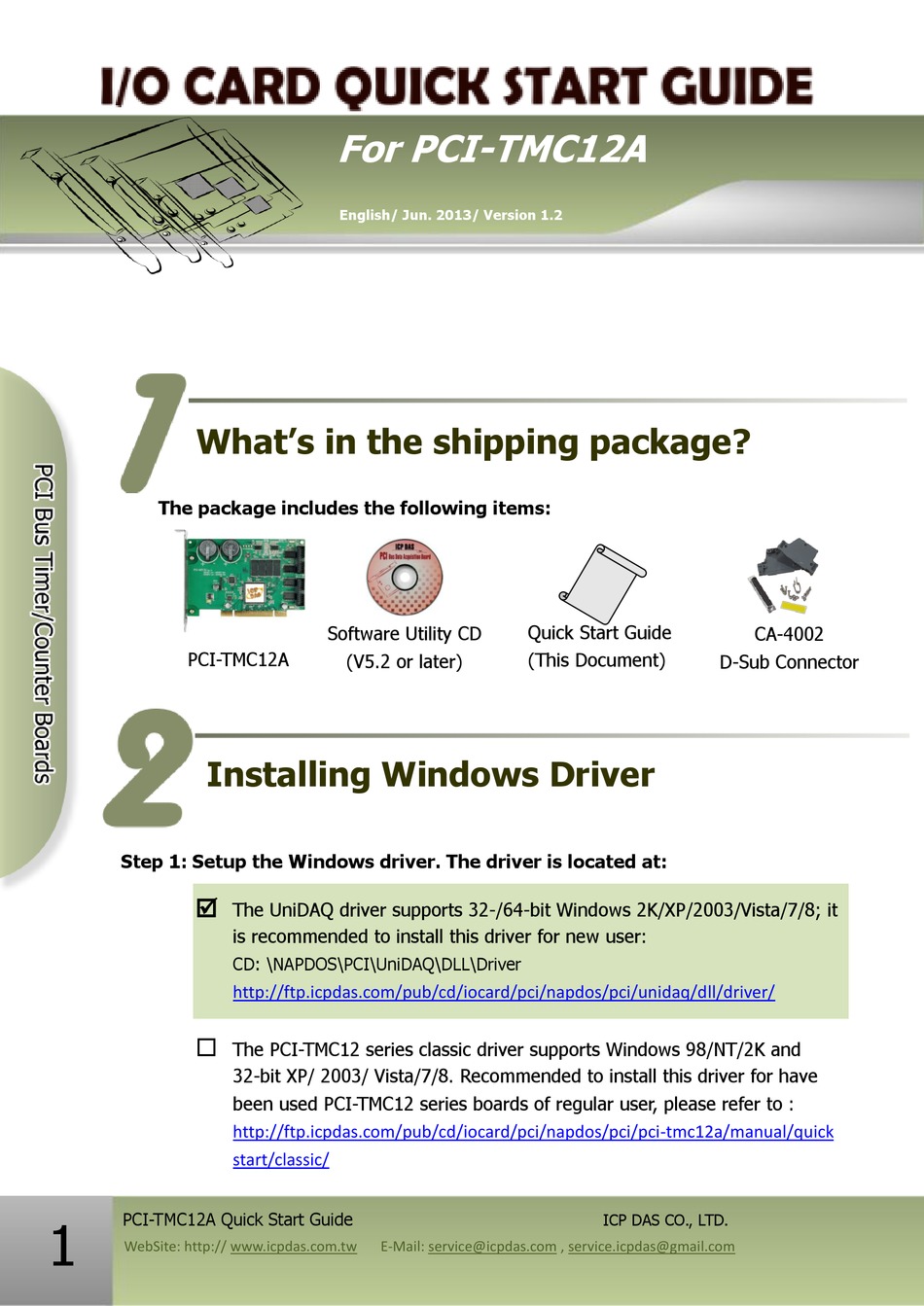

PCI-TMC12A Quick Start Guide
1
WebSite: http:// www.icpdas.com.tw
For PCI-TMC12A
English/ Jun. 2013/ Version 1.2
Software Utility CD
(V5.2 or later)
The UniDAQ driver supports 32-/64-bit Windows 2K/XP/2003/Vista/7/8; it
is recommended to install this driver for new user:
CD: \NAPDOS\PCI\UniDAQ\DLL\Driver
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/
The PCI-TMC12 series classic driver supports Windows 98/NT/2K and
32-bit XP/ 2003/ Vista/7/8. Recommended to install this driver for have
been used PCI-TMC12 series boards of regular user, please refer to :
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pci-tmc12a/manual/quick
start/classic/
E-Mail: service@icpdas.com , service.icpdas@gmail.com
Quick Start Guide
(This Document)
ICP DAS CO., LTD.
CA-4002
D-Sub Connector
Advertisement
Table of Contents
Related Manuals for ICP DAS USA PCI-TMC12A
Summary of Contents for ICP DAS USA PCI-TMC12A
- Page 1 32-bit XP/ 2003/ Vista/7/8. Recommended to install this driver for have been used PCI-TMC12 series boards of regular user, please refer to : http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/pci-tmc12a/manual/quick start/classic/ PCI-TMC12A Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
- Page 2 Step 5: Replace the PC cover. Step 6: Power on the computer. After powering-on the computer, please finish the Plug&Play steps according to the prompted messages. PCI-TMC12A Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
- Page 3 Pin Assignments CON1 Timer/Counter connector (Female DB37) CON2 and Digital Input/Output connector (20-pin box header) PCI-TMC12A Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
- Page 4 2. The UniDAQ Utility.exe is located in: This program (UniDAQ Utility) will be placed in the default path after completing installation. Default Path: C:\ICPDAS\UniDAQ\Driver\ Double-Click Double click the “UniDAQUtility.exe” PCI-TMC12A Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
- Page 5 3. Execute the UniDAQ Utility Program. Click this button to start test. Confirm the PCI-TMC12A series card had successfully installed to PC. It starts from 0. 4. Get DIO function test result. Click “Digital Output” item. Check channel 0, 2, 4, 6 Select the “Port 0”...
- Page 6 Click “Digital Input” item. The corresponding D/I becomes red for channel 0, 2, 4, 6 of D/O is ON. Select the “Port 0” PASS Related Information PCI-TMC12A series card product page: http://www.icpdas.com/root/product/solutions/pc_based_io_board/pci/pci-tmc12a.html CA-2002 page (optional): http://www.icpdas.com/products/Accessories/cable/cable_selection.htm Documentation and Software: ...
