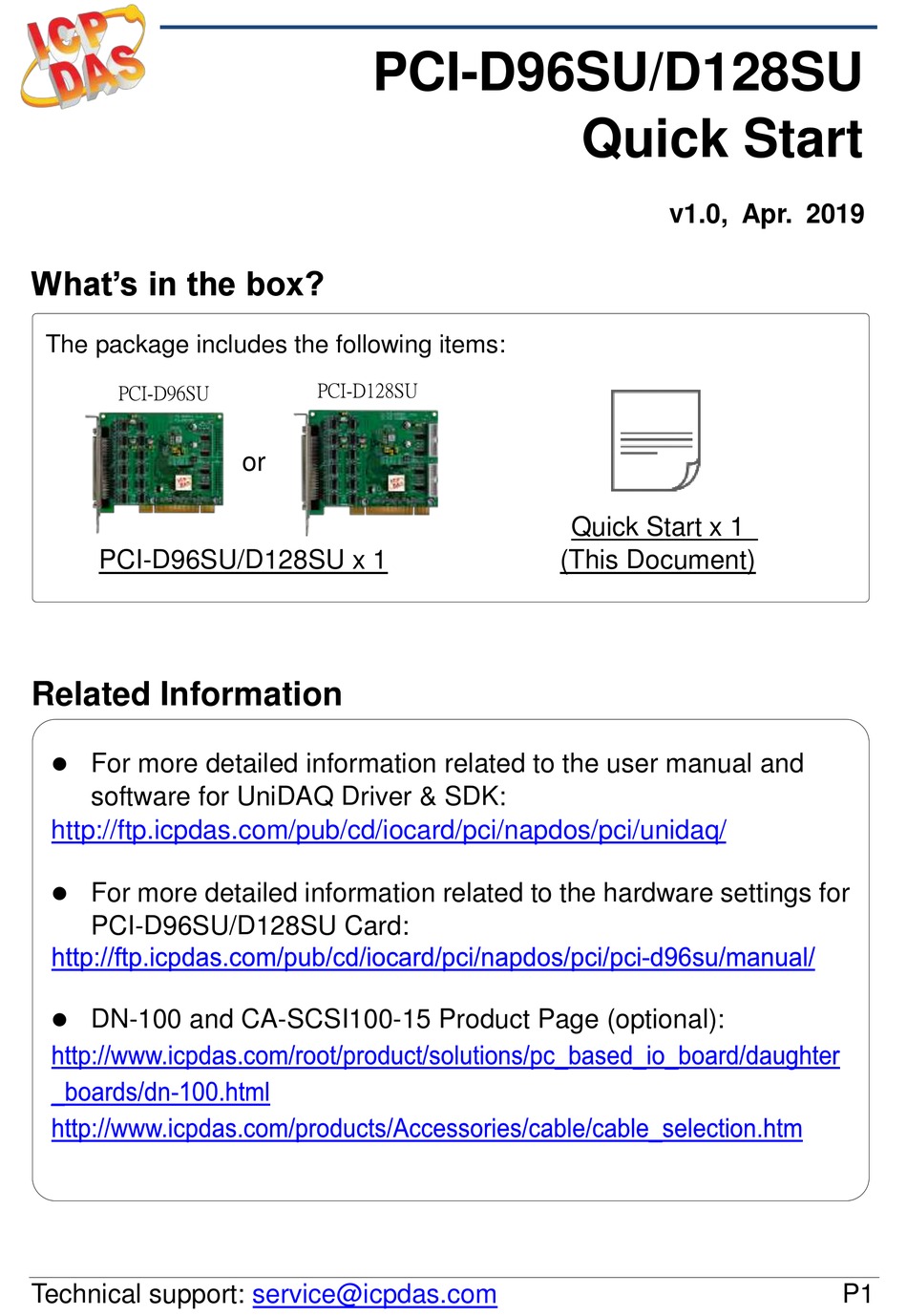

What's in the box?
The package includes the following items:

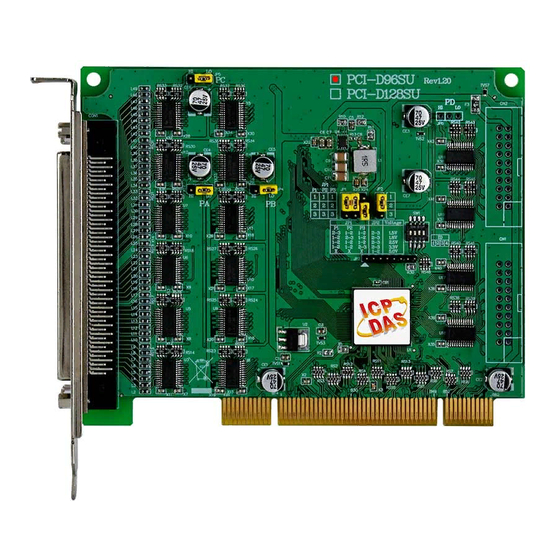

PCI-D96SU
PCI-D96SU/D128SU x 1
Related Information
For more detailed information related to the user manual and
software for UniDAQ Driver & SDK:
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/
For more detailed information related to the hardware settings for
PCI-D96SU/D128SU Card:
DN-100 and CA-SCSI100-15 Product Page (optional):
Technical support:
PCI-D96SU/D128SU
PCI-D128SU
or
service@icpdas.com
Quick Start
v1.0, Apr. 2019
Quick Start x 1
(This Document)
P1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA PCI-D96SU
Summary of Contents for ICP DAS USA PCI-D96SU
- Page 1 What’s in the box? The package includes the following items: PCI-D128SU PCI-D96SU Quick Start x 1 PCI-D96SU/D128SU x 1 (This Document) Related Information For more detailed information related to the user manual and software for UniDAQ Driver & SDK: http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/...
- Page 2 Appearance DI Pull-high/low Jumper CN2: PD Port CON1: 1 2 3 4 PA/PB/PC CN1: PD Port Port DIO Operating Voltage Card ID Switch Jumper Jumper Settings DI Pull-high/low Jumper Jumpers JP3 to JP6 are used to specify whether the Digital Input is either Pull-high or Pull-low.
- Page 3 1) Shut down and power off your Computer. 2) Remove all covers from the Computer. 3) Select an unused PCI slot. 4) Carefully insert the PCI-D96SU/D128SU Card into PCI slot. 4) Replace the Computer Covers. 5) Power on the Computer.
- Page 4 3) The operating system will automatically detect the new hardware and install the necessary drivers after reboot the PC. 4) Open the “Device Manager” to verify that the PCI-D96SU/D128SU Card has been correctly installed and is in the Device Manager, as illustrated on below.
- Page 5 Pin Assignments Technical support: service@icpdas.com...
- Page 6 Self-test Wiring 1) Verify that Jumpers DI Pull-high/low (JP3 ~ JP6) on the PCI-D96SU/D128SU are set to the “Pull-Low (default)” position. NOTE: Refer to Chapter 2 “Jumper Settings” above (P2). 2) Connect the DN-100 terminal board (optional) to the CON1 on the PCI-D96SU/D128SU Card using the CA-SCSI100-15 cable (optional).
- Page 7 If the UniDAQ Utility was installed in the default folder, it will be located at “C:\ICPDAS\UniDAQ\Driver”. Double-click 2) Confirm that the PCI-D96SU/D128SU Card has been successfully installed in the Host system. NOTE: The device numbers start from 0. 3) Click the “TEST” button to start the test.
- Page 8 3) Click the “Digital Output” tab. 4) Select “Port0” from the “Port Number” drop-down options. 5) Click the DO channels 0, 2, 4 and 6 buttons. 6) Click the “Digital Input” tab. 7) Select “Port1” from the “Port Number” drop-down options. 8) The DI indicators will turn red when the corresponding DO channels 0, 2, 4 and 6 are ON.
