Proaim Quad Plus Film Camera Doorway Dolly

(P-QUAD-PL)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

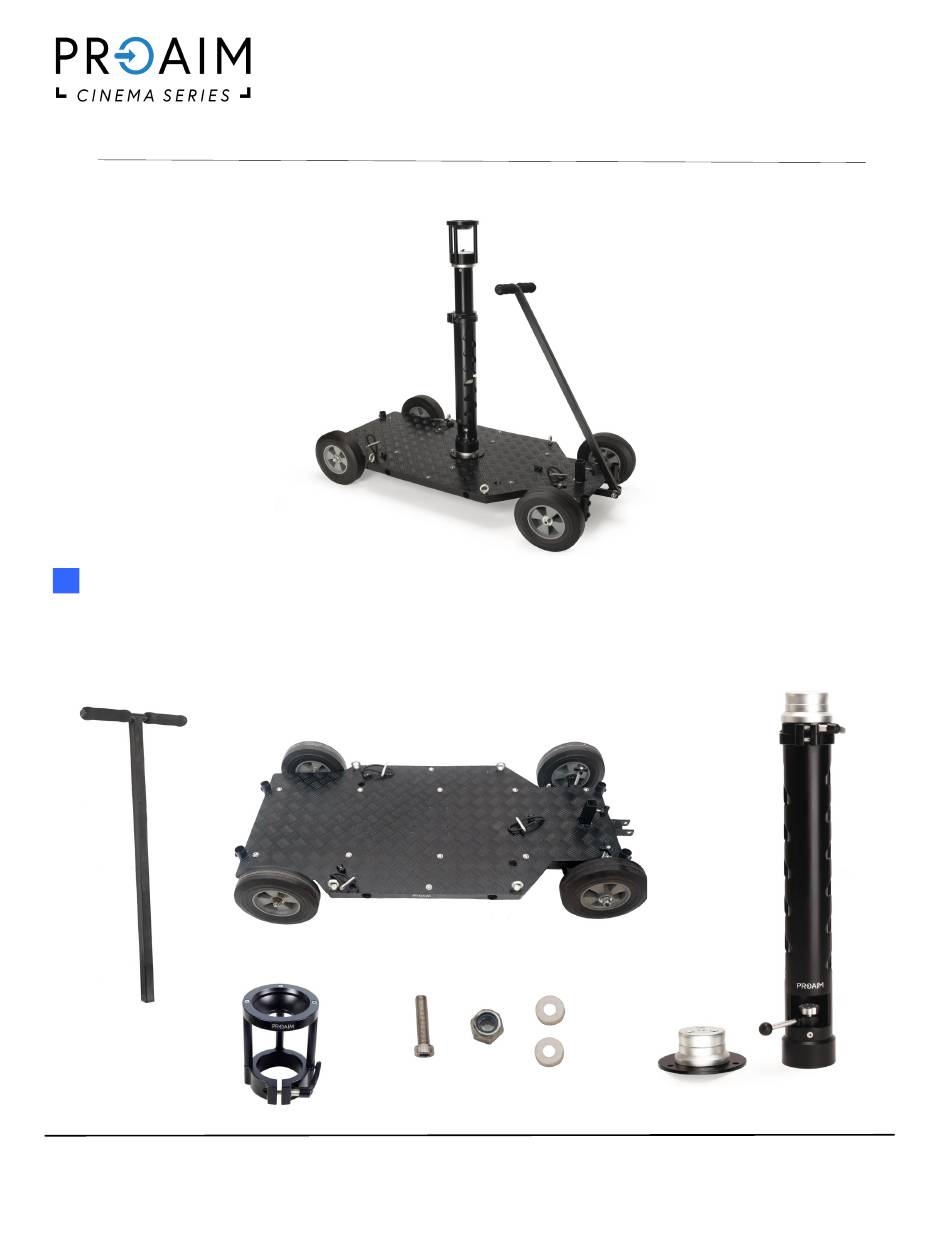

Proaim Quad Plus Professional Dolly

Steering Push/ Pull

Bar

Allen Bolt

Lock Nut

Washer

Proaim Telescopic Bazooka &

Bowl-Camera Riser

Proaim Euro Adapter

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

Table of Contents

Need help?

Do you have a question about the Quad Plus and is the answer not in the manual?

Page 1 Proaim Quad Plus Film Camera Doorway Dolly (P-QUAD-PL) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Quad Plus Setup Assemble Push/Pull Bar  Insert the bolt matching the hole of the dolly and secure it with the help of a washer then position the steering push/pull bar to the center of the dolly.  Connect the push/pull bar using an allen bolt with washer and locknut.
Page 3  Now Secure your Euro Adapter, tighten the bolts with the help of Allen key. Bazooka Setup  Mount the Bazooka onto the euro adapter, as shown in the image.  After Mounted the bazooka, Lock the inner knob to secure the bazooka. The knob rotate anti-clockwise.
Page 4 Note. The width of the tire can be Increased/ decreased via telescopic rear axle. YOUR PROAIM QUAD PLUS FILM CAMERA DOORWAY DOLLY ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
