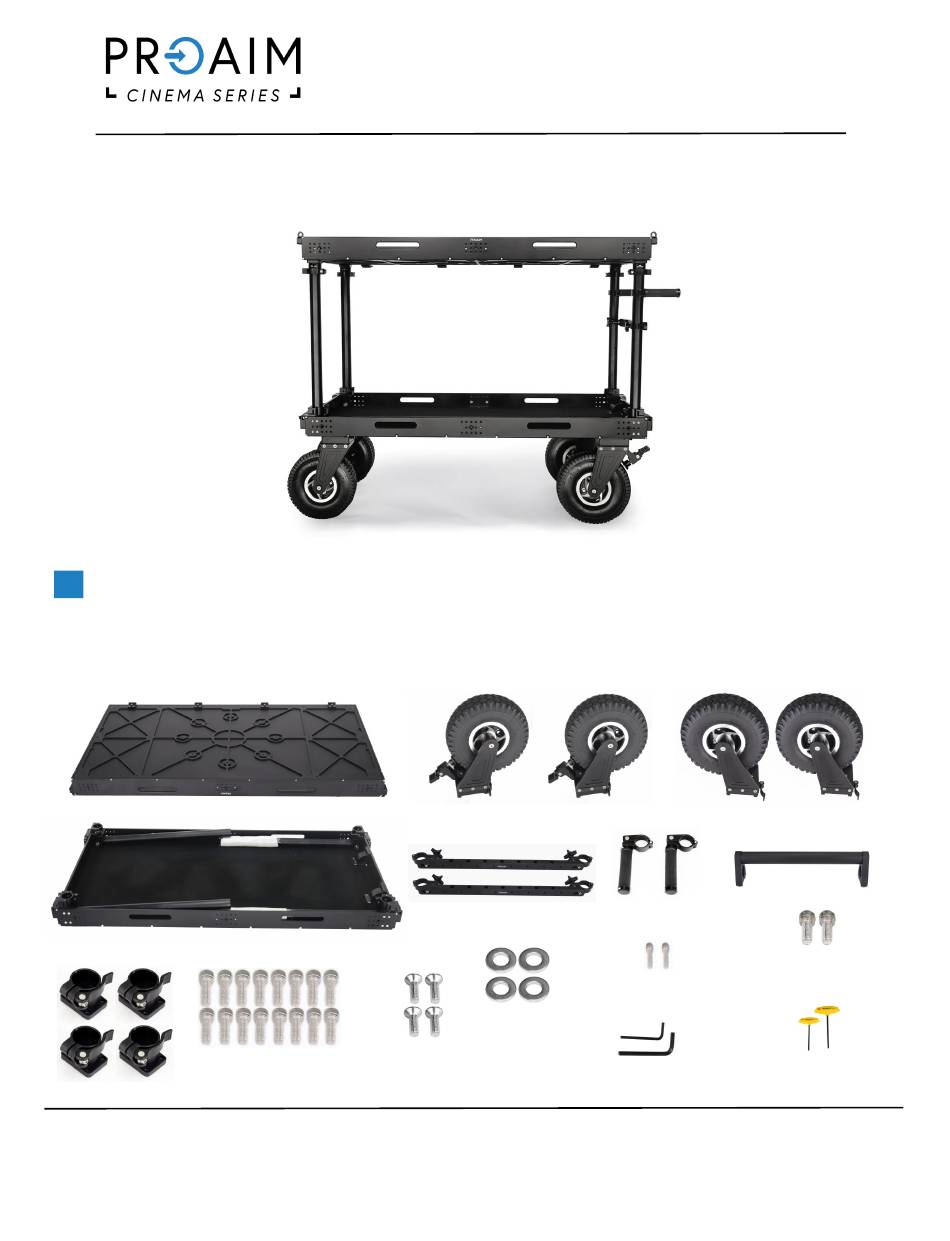

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Upper shelf
Lower shelf
16 x Allen Bolts
(Sizes:5 x 12mm)
4 x Rod Adapters
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

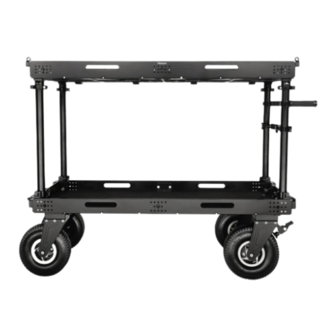

Atlas V2 Video Production Camera Cart
(ATLS-V2-48)
A s s e m b l y M a n u a l
2 x Pneumatic Tires
without Break
2 x Cross Bar
4 x washers
2 x Allen CSK Bolts
(Size: 6 x 20mm)
All rights reserved.
statutes or in writing by the Publisher.
2 x Pneumatic Tires
Carrying Handle
2 x Side Handle
2 x Allen Bolts
(Size: 8 x 25mm)
2 x L-Type Allen Key
(Sizes:4mm & 6mm)
1
with Break
2 x Allen Bolts
(Size: 8 x 20mm)
2 x T-Type Allen Key
(Sizes:4mm & 5mm)
