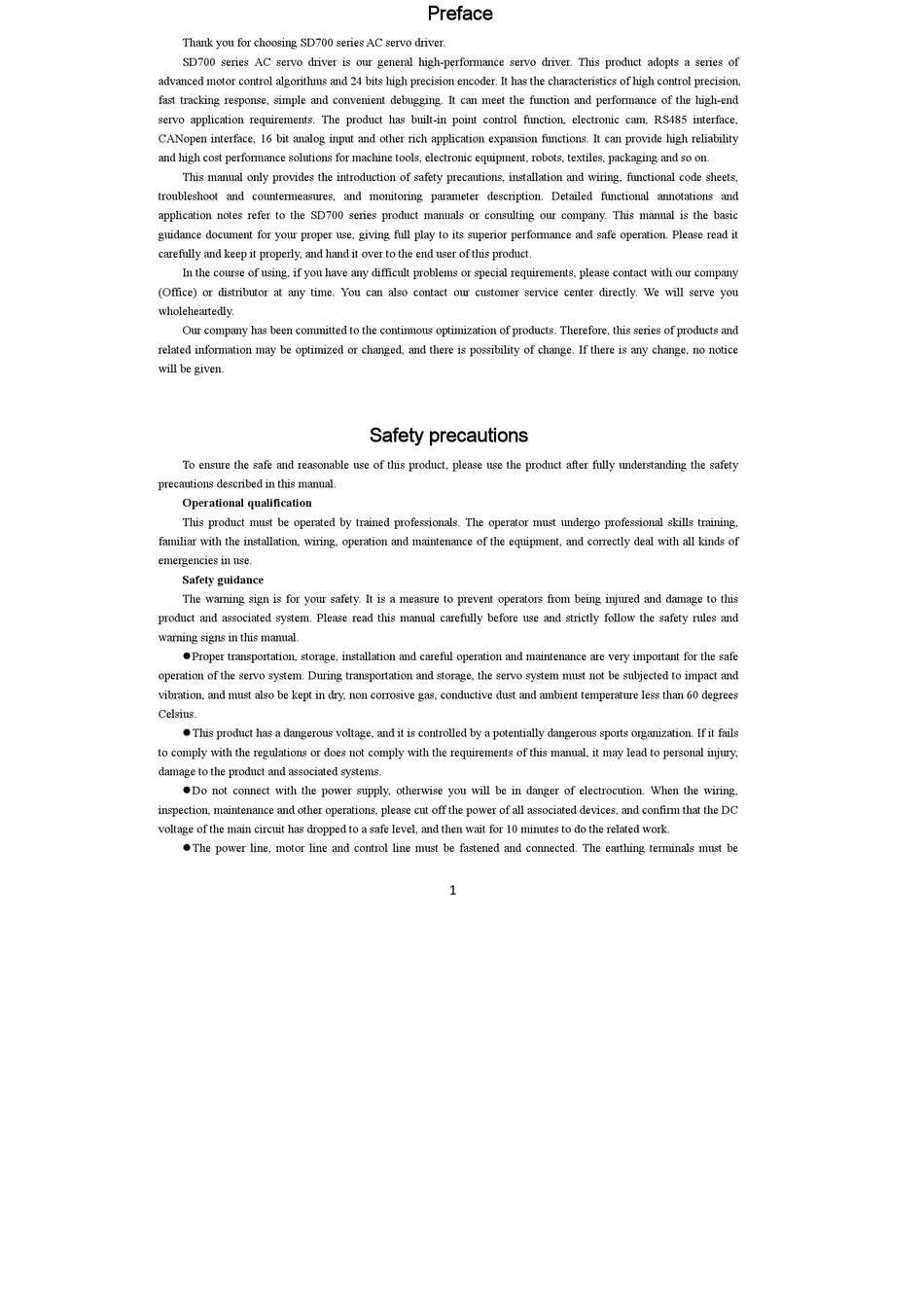

Thank you for choosing SD700 series AC servo driver.
SD700 series AC servo driver is our general high-performance servo driver. This product adopts a series of
advanced motor control algorithms and 24 bits high precision encoder. It has the characteristics of high control precision,
fast tracking response, simple and convenient debugging. It can meet the function and performance of the high-end
servo application requirements. The product has built-in point control function, electronic cam, RS485 interface,
CANopen interface, 16 bit analog input and other rich application expansion functions. It can provide high reliability
and high cost performance solutions for machine tools, electronic equipment, robots, textiles, packaging and so on.
This manual only provides the introduction of safety precautions, installation and wiring, functional code sheets,
troubleshoot and countermeasures, and monitoring parameter description. Detailed functional annotations and
application notes refer to the SD700 series product manuals or consulting our company. This manual is the basic
guidance document for your proper use, giving full play to its superior performance and safe operation. Please read it
carefully and keep it properly, and hand it over to the end user of this product.
In the course of using, if you have any difficult problems or special requirements, please contact with our company
(Office) or distributor at any time. You can also contact our customer service center directly. We will serve you
wholeheartedly.
Our company has been committed to the continuous optimization of products. Therefore, this series of products and
related information may be optimized or changed, and there is possibility of change. If there is any change, no notice
will be given.
To ensure the safe and reasonable use of this product, please use the product after fully understanding the safety
precautions described in this manual.
Operational qualification
This product must be operated by trained professionals. The operator must undergo professional skills training,
familiar with the installation, wiring, operation and maintenance of the equipment, and correctly deal with all kinds of
emergencies in use.
Safety guidance
The warning sign is for your safety. It is a measure to prevent operators from being injured and damage to this
product and associated system. Please read this manual carefully before use and strictly follow the safety rules and
warning signs in this manual.
 Proper transportation, storage, installation and careful operation and maintenance are very important for the safe
operation of the servo system. During transportation and storage, the servo system must not be subjected to impact and
vibration, and must also be kept in dry, non corrosive gas, conductive dust and ambient temperature less than 60 degrees
Celsius.
 This product has a dangerous voltage, and it is controlled by a potentially dangerous sports organization. If it fails
to comply with the regulations or does not comply with the requirements of this manual, it may lead to personal injury,
damage to the product and associated systems.
 Do not connect with the power supply, otherwise you will be in danger of electrocution. When the wiring,
inspection, maintenance and other operations, please cut off the power of all associated devices, and confirm that the DC
voltage of the main circuit has dropped to a safe level, and then wait for 10 minutes to do the related work.
 The power line, motor line and control line must be fastened and connected. The earthing terminals must be
