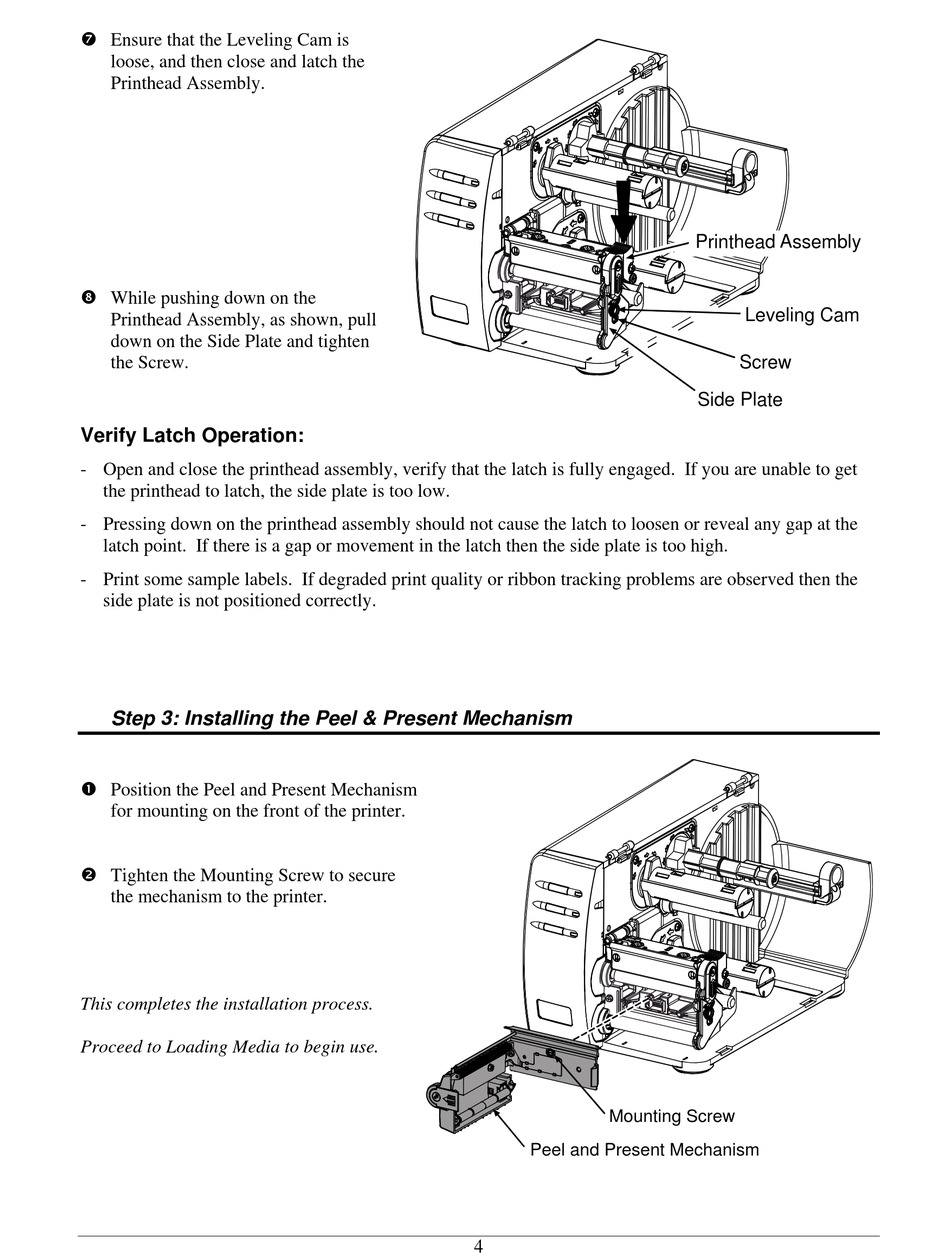

Datamax M-Class Mark II Manual page 6

 Ensure that the Leveling Cam is
loose, and then close and latch the
Printhead Assembly.
 While pushing down on the
Printhead Assembly, as shown, pull
down on the Side Plate and tighten
the Screw.
Verify Latch Operation:
- Open and close the printhead assembly, verify that the latch is fully engaged. If you are unable to get
the printhead to latch, the side plate is too low.
- Pressing down on the printhead assembly should not cause the latch to loosen or reveal any gap at the
latch point. If there is a gap or movement in the latch then the side plate is too high.
- Print some sample labels. If degraded print quality or ribbon tracking problems are observed then the
side plate is not positioned correctly.
Step 3: Installing the Peel & Present Mechanism
 Position the Peel and Present Mechanism
for mounting on the front of the printer.
 Tighten the Mounting Screw to secure
the mechanism to the printer.
This completes the installation process.
Proceed to Loading Media to begin use.
