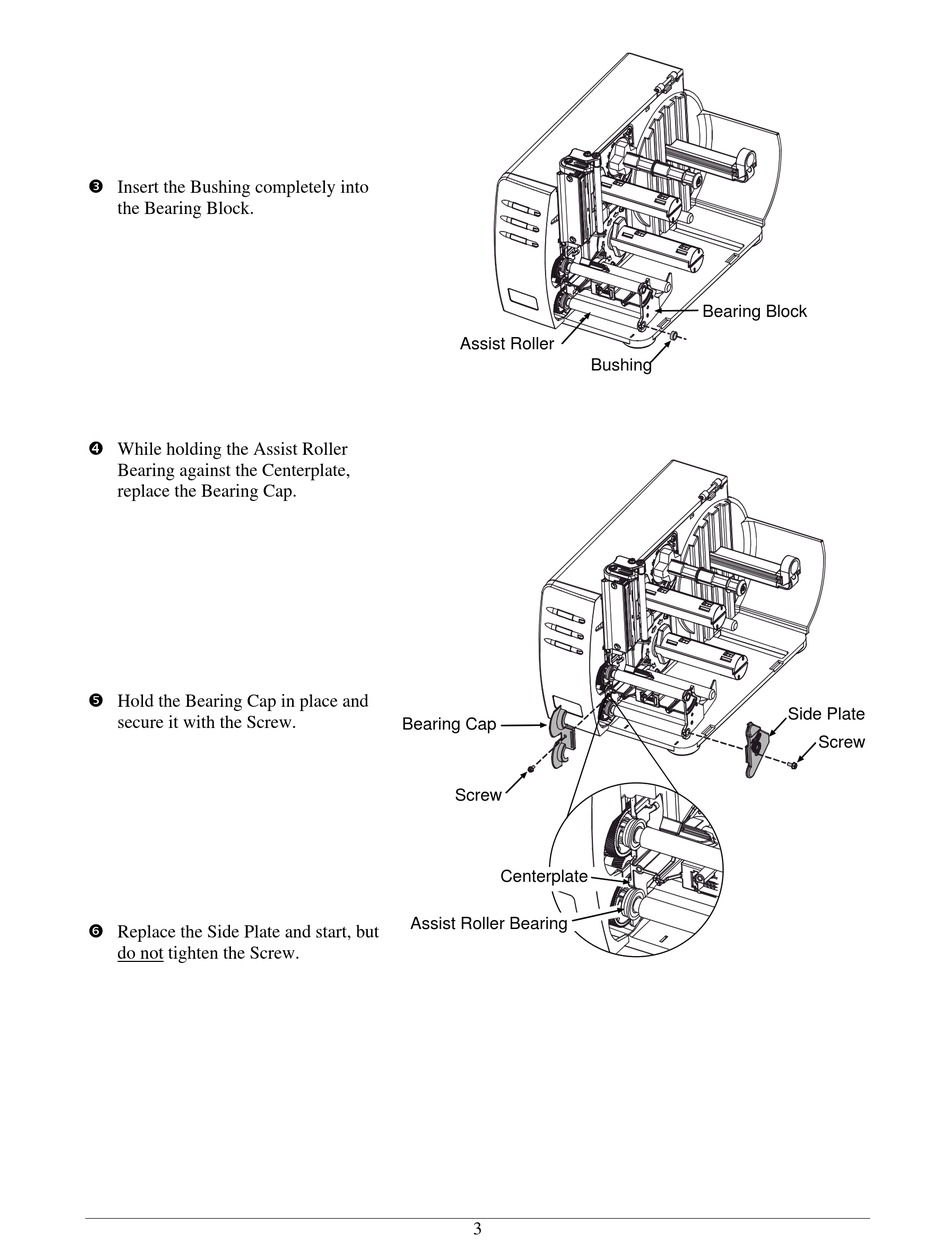

Insert the Bushing completely into
the Bearing Block.
While holding the Assist Roller
Bearing against the Centerplate,
replace the Bearing Cap.
Hold the Bearing Cap in place and
secure it with the Screw.
Replace the Side Plate and start, but
do not tighten the Screw.
Assist Roller
Bearing Cap
Screw
Centerplate
Assist Roller Bearing
3
Bearing Block
Bushing
Side Plate
Screw
