Step 2: Installing the Option

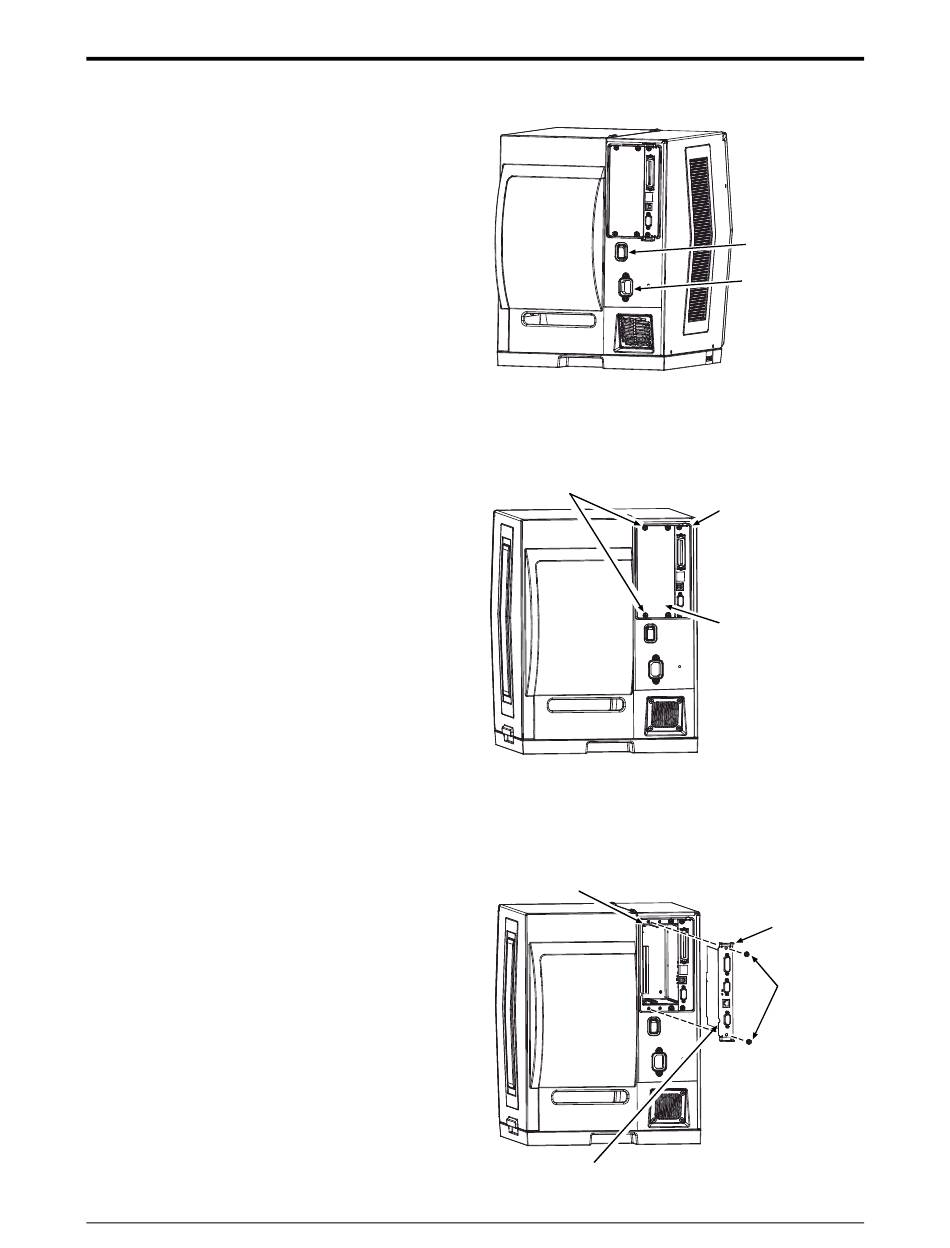

Install the GPIO Card as described below:
A) Turn OFF the Power Switch and
unplug the power cord from the AC
Receptacle.
B) Remove the two Screws that secure
the Back Panel to the Card Cage,
and then remove the Back Panel.
C) Slide the GPIO Card (Item 1),
Notch down, into the leftmost Card
Cage Slot. Firmly push the GPIO
Card to seat it and then secure the
card using the two Screws (Item 3).
Screws
Card Cage
Slot
Notch
9
Power Switch
AC Receptacle
Card Cage
Back Panel
GPIO Card
Screws
