Basler BE1-32R Quick Start Manual

O/u directional power relay
Hide thumbs Also See for BE1-32R:
Table of Contents

Advertisement

Quick Links

Download this manual

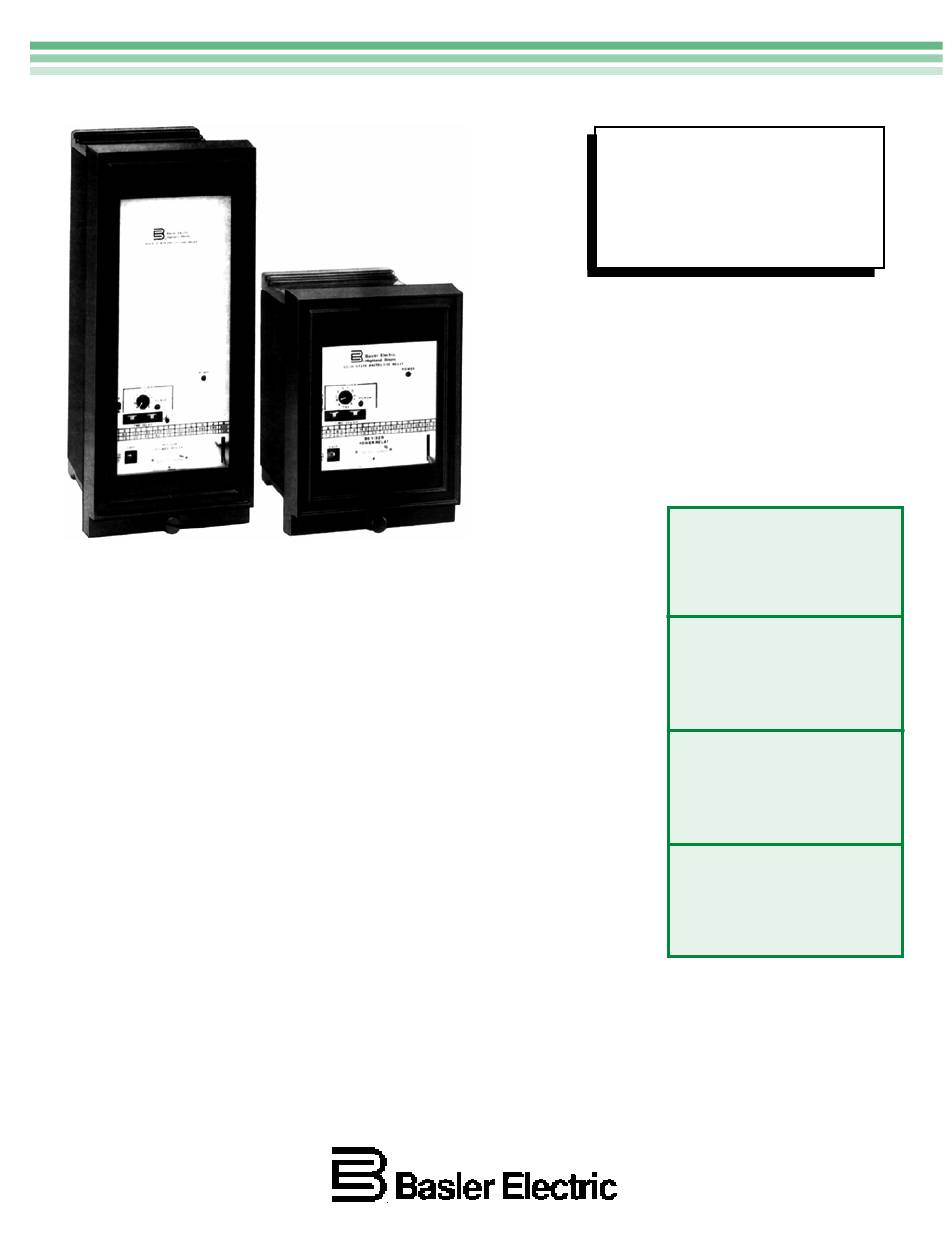

The BE1-32R Directional Overpower Relay and the BE1-32 O/U Directional
Over/Underpower Relay are solid-state devices which provide versatility
and control in protecting machines against reverse power flow,
underpower and overpower conditions.
Measures Real Power - El cos Θ.
•
•
Wide variety of input configurations are available including single-phase
and three phase, 3 and 4 wire systems.
•
Sensing ranges available from 0.5 to 6000 watts secondary.
•
Instantaneous, definite and inverse timing characteristics available.
•
Low input sensing and supply burdens.
•
Qualified to the requirements of
-ANSI/IEEE C37.90.1-1989 and IEC 255 for fast transient and
surge withstand capability;
-IEC 255-5 for impulse.
•
UL Recognized under Standard 508, UL File #E97033.
ADDITIONAL INFORMATION
INSTRUCTION MANUAL
Request Publication 9-1711-00-990
ADVANTAGES
P. O. BOX 269 HIGHLAND, ILLINOIS 62249, U.S.A. PHONE 618-654-2341 FAX 618-654-2351
BE1-32R, BE1-32R O/U
BE1-32R, BE1-32 O/U
DIRECTIONAL
POWER RELAY
APPLICATION
Pages 2 - 4
SPECIFICATIONS
Pages 4 - 8
EXTERNAL
CONNECTIONS
Pages 9 - 10
ORDERING
INFORMATION
Pages 11 - 12
UBU-5
3-96
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-32R and is the answer not in the manual?

Questions and answers

Related Manuals for Basler BE1-32R

Summary of Contents for Basler BE1-32R

  • Page 1 BE1-32R, BE1-32 O/U DIRECTIONAL POWER RELAY APPLICATION The BE1-32R Directional Overpower Relay and the BE1-32 O/U Directional Pages 2 - 4 Over/Underpower Relay are solid-state devices which provide versatility and control in protecting machines against reverse power flow, underpower and overpower conditions.

  • Page 2: Application Examples

    Sustained motoring can cause PURPOSE severe damage to the prime mover. The Directional The BE1-32R Directional Overpower Relay and the BE1- Power Relay, with its wide sensitivity range, can detect 32 O/U, Directional Over/Underpower Relays sense real levels of reverse real power flow as low as 0.5 Watts...

  • Page 3: Example 3 - Generator Overload

    A definite time delay will generally be provided for the “stop” signal of one minute or more. The Basler Model BE1-32 O/U Power Relay incorporates both over and under power sensing in one relay, which makes it ideal for this application.

  • Page 4: Specifications

    With the many options and combinations of options Since the sine of Q equals the cosine of (Q - 90°) the available, the Basler Electric Directional Power Relays relay can be connected to measure only reactive can be adapted to multitude of systems and situations power by adding 90°...

  • Page 5: Sensing Input Types

    BE1-32R, BE1-32R O/U SPECIFICATIONS (continued) If sensing input range 2, 3, 5, 6, 8 or 9 is selected, the Type B (60 Hz) or Type V (50 Hz) Sensing: Single-Phase input transformers are capable of 10 A continuous (Figure 8) with 30° phase shift. This sensing configuration current, 15 A for 1 minute and 200 A for 1 second.

  • Page 6: Power Range Pickup

    BE1-32R, BE1-32R O/U SPECIFICATIONS (continued) Type D Sensing: Three-Phase (Figure 10). The type D sensing configuration monitors three line-to-neutral voltages and three phase currents of a three-phase, four- wire circuit and calculates the power flowing in the tripping direction. Relays with this sensing type are calibrated in three-phase watts.

  • Page 7: Power Supply Status Output (Optional)

    SPECIFICATIONS (continued) Table 2 - Power Range Pickup Settings Each model, BE1-32R or BE1-32 O/U is capable of Inverse time delayed trip is available for the overpower instantaneous trip, definite time delay trip, or an inverse function only. The inverse time delay curve is adjust-...
  • Page 8 BE1-32R, BE1-32R O/U SPECIFICATIONS (continued) TARGETS Magnetically latched, manually reset target indicators are optionally available to indicate that a trip output has energized. Either internally operated or current operated target may be specified. Current operated targets require 0.2 A in the output trip circuit to actuate, and trip current must not exceed 30 A for 0.2 seconds, 7 A for 2 minutes,...
  • Page 9 BE1-32R, BE1-32R O/U CONNECTIONS BE1-32 GENERATOR TYPE A SENSING Figure 13 - Sensing Connections (Continued overpage.)
  • Page 10 BE1-32R, BE1-32R O/U CONNECTIONS (continued) Figure 13 (continued) - Sensing Connections Figure 14 - Control Circuits...

  • Page 11: Style Number

    SAMPLE STYLE NUMBER A1E-A1P-A0N2F Option 4 Semi-flush mounting The style number above describes a BE1-32R Direc- tional Power Relay having the following features. NOTE: The description of a complete relay must include both the model number and the style number.

  • Page 12: Style Number Identification Chart

    BE1-32R, BE1-32R O/U STYLE NUMBER IDENTIFICATION CHART ROUTE 143, BOX 269, HIGHLAND, ILLINOIS U.S.A. 62249 P.A.E. Les Pins, 67319 Wasselonne Cedex FRANCE PHONE 618-654-2341 FAX 618-654-2351 PHONE (33-3-88) 87-1010 FAX (33-3-88) 87-0808 http://www.basler.com, info@basler.com...
