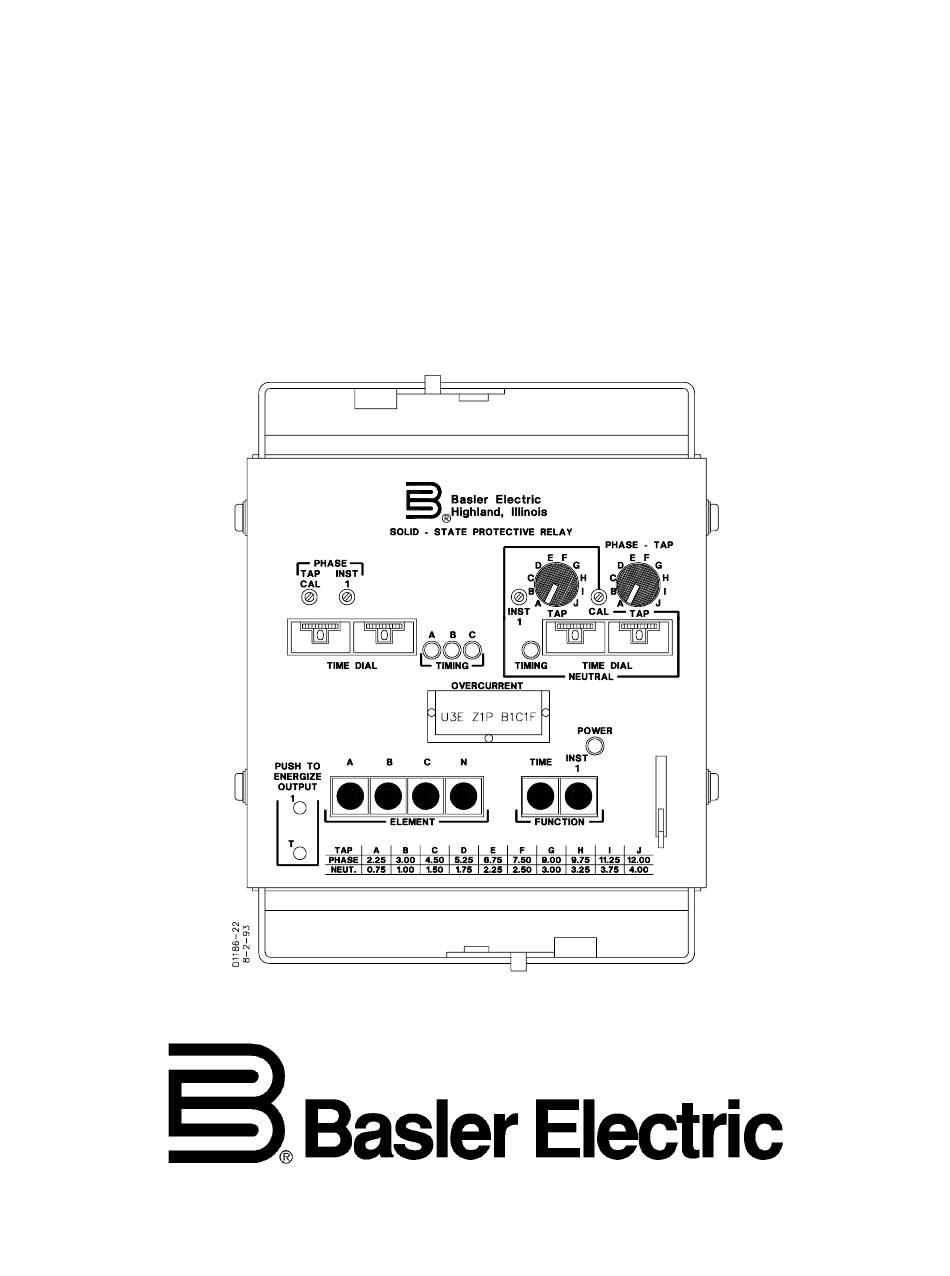

INSTRUCTION MANUAL
FOR
TIME OVERCURRENT RELAY
WITH VOLTAGE RESTRAINT
MODEL BE1-51/27R
Publication: 9 1372 00 999
Revision: B
09/99
