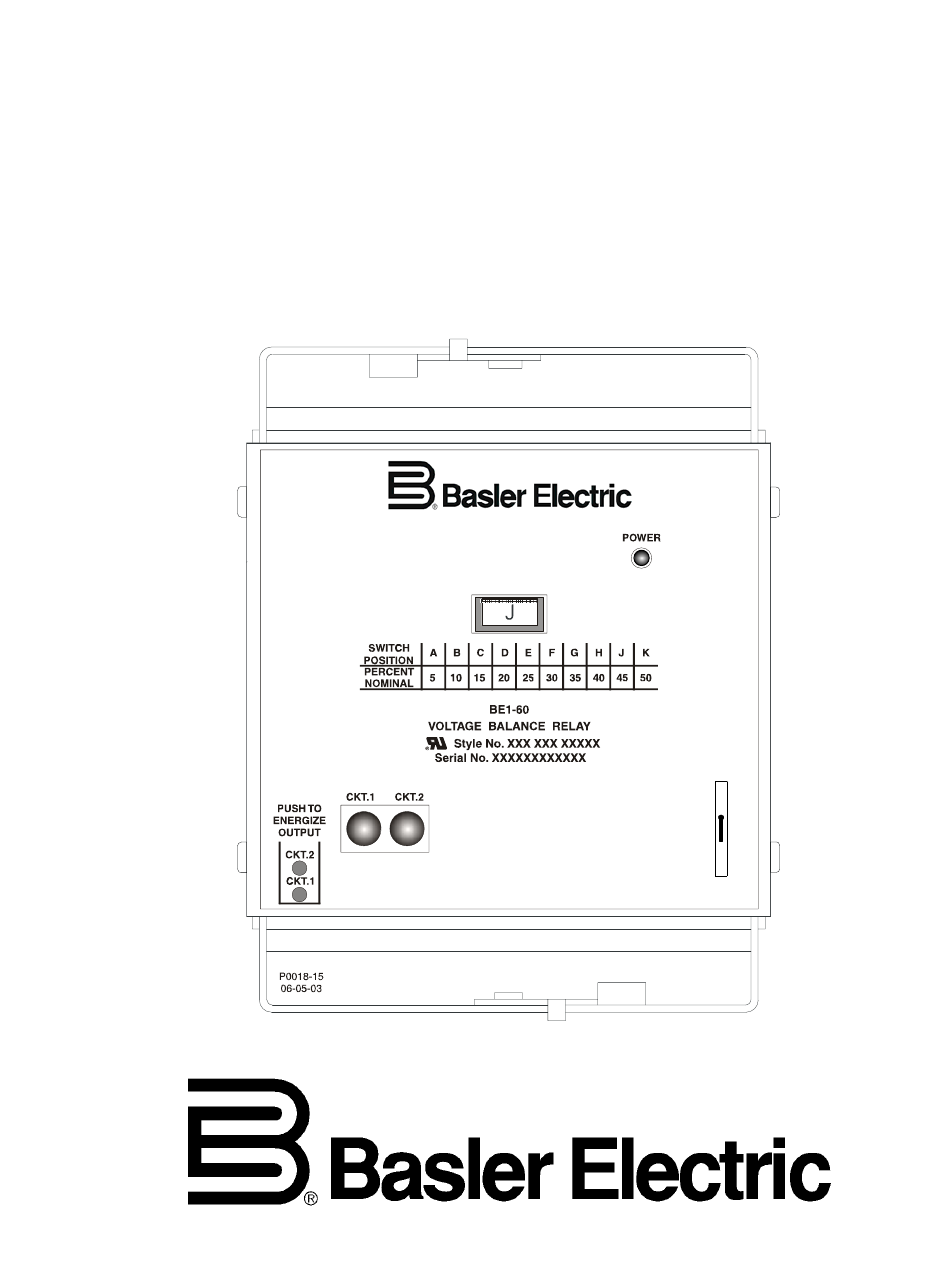

Basler BE1-60 Instruction Manual

Voltage balance relay

Advertisement

Quick Links

INSTRUCTION MANUAL
FOR
VOLTAGE BALANCE RELAY
BE1-60
Publication: 9170700990
Revision: D
09/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Basler BE1-60

  • Page 1 INSTRUCTION MANUAL VOLTAGE BALANCE RELAY BE1-60 Publication: 9170700990 Revision: D 09/07...
  • Page 3 INTRODUCTION This instruction manual provides information about the operation and installation of the BE1-60 Voltage Balance Relay. To accomplish this, the following information is provided: • General Information and Specifications • Controls and Indicators • Functional Description • Installation • Testing...
  • Page 4 September 2007 CONFIDENTIAL INFORMATION of Basler Electric, Highland Illinois, USA. It is loaned for confidential use, subject to return on request, and with the mutual understanding that it will not be used in any manner detrimental to the interest of Basler Electric.
  • Page 5 REVISION HISTORY The following information provides a historical summary of the changes made to the BE1-60 instruction manual (9170700990). Revisions are listed in reverse chronological order. Manual Revision and Date Change • D, 09/07 Added manual part number and revision to all footers.
  • Page 6 This page intentionally left blank. BE1-60 Introduction 9170700990 Rev D...
  • Page 7: Table Of Contents

    Current Operated Targets ......................3-2 SECTION 4 • INSTALLATION........................4-1 INTRODUCTION..........................4-1 RELAY OPERATING GUIDELINES AND PRECAUTIONS ............... 4-1 MOUNTING............................4-1 CONNECTIONS..........................4-6 MAINTENANCE ..........................4-7 STORAGE............................4-7 SECTION 5 • TESTING ..........................5-1 OPERATIONAL TEST PROCEDURE ....................5-1 9170700990 Rev D BE1-60 Introduction...
  • Page 8 This page intentionally left blank. BE1-60 Introduction 9170700990 Rev D...
  • Page 9: Section 1 • General Information

    The BE1-60 Voltage Balance Relay provides a high-speed response to block other devices from incorrect operation resulting from a blown fuse or other fault in a potential transformer circuit. The BE1-60 detects these conditions, initiates corrective action, and indicates the problem and location.
  • Page 10: Setting The Relay

    This condition would warrant an alarm indication and an orderly shutdown of the unit. The BE1-60 Circuit 1 output would accomplish this task and the Circuit 1 target would indicate that an open power potential transformer fuse had initiated the correct shutdown sequence.
  • Page 11: Model And Style Number

    E or F. OPERATIVE EXAMPLE The following example details the effect that the BE1-60 would have on the system shown in Figure 1-1. Given: Potential transformer secondary voltages are 120 Vac BE1-51/27R pickup setting is 4.5 Aac...
  • Page 12 Figure 1-3. BE1-60 Style Chart BE1-60 General Information 9170700990 Rev D...
  • Page 13: Specifications

    Timing 150 milliseconds or less for voltage differences greater than three times the setting Power Supply The five power supply types available for the BE1-60 are summarized in Table 1-1. Table 1-1. Power Supply Types and Specifications Input Voltage Burden at...
  • Page 14: Outputs

    Gost-R certified No. POCC US.ME05.B03391; complies with the relevant standards of Gosstandart of Russia. Issued by accredited certification body POCC RU.0001.11ME05. Weight 14.25 lb (6.46 kg) maximum Case Size S1 (Refer to Section 4, Installation for case dimensions.) BE1-60 General Information 9170700990 Rev D...
  • Page 15: Section 2 • Controls And Indicators

    SECTION 2 • CONTROLS AND INDICATORS INTRODUCTION All BE1-60 controls and indicators are located on the relay front panel. The controls and indicators are shown in Figure 2-1 and described in Table 2-1. Figure 2-1. BE1-60 Controls and Indicators 9170700990 Rev D...
  • Page 16 Target indicators are manually reset by operating the target reset switch (locator D). Output Test Pushbutton The BE1-60 may be equipped with two pushbuttons (Circuit 1 (optional) and Circuit 2) that can be used to verify operation of the relay output contacts.
  • Page 17: Section 3 • Functional Description

    STEP-DOWN TRANSFORMERS Voltage received from the power system potential transformers is applied to sensing transformers within the BE1-60 relay. The voltage is stepped down to appropriate levels and supplied to full-wave rectifier circuits within the relay. FULL-WAVE RECTIFIERS AND INTEGRATORS Outputs from the step-down transformers are full-wave rectified and then integrated.
  • Page 18: Limit Setting

    Circuit 1 output relay(s) and the upper pushbutton energizes the Circuit 2 output relay(s). AUXILIARY OUTPUTS Two sets of optional, auxiliary outputs are available on the BE1-60 relay. One auxiliary output changes state when the Circuit 1 output relay energizes; the other auxiliary output changes state when the Circuit 2 output relay energizes.
  • Page 19: Internally Operated Targets

    200 milliamperes of current flowing in the trip circuit. NOTE Prior to September 2007, BE1-60 target indicators consisted of magnetically latched, disc indicators. These mechanically latched target indicators have been replaced by the electronically latched LED targets in use today.
  • Page 20 This page intentionally left blank. BE1-60 Functional Description 9170700990 Rev D...
  • Page 21: Section 4 • Installation

    SECTION 4 • INSTALLATION INTRODUCTION BE1-60 relays are shipped in sturdy cartons to prevent damage during transit. Upon receipt of a relay, check the model and style number against the requisition and packing list to see that they agree. Inspect the relay for shipping damage.
  • Page 22 Figure 4-1. S1 Cover, Outline Dimensions, Front View Figure 4-2. S1 Case, Double-Ended, Semi-Flush Mounting, Outline Dimensions, Side View BE1-60 Installation 9170700990 Rev D...
  • Page 23 Figure 4-3. S1 Case, Double-Ended, Projection Mounting, Outline Dimensions, Side View 9170700990 Rev D BE1-60 Installation...
  • Page 24 Figure 4-4. S1 Case, Double-Ended, Projection Mounting, Panel Drilling Diagram, Rear View BE1-60 Installation 9170700990 Rev D...
  • Page 25 Figure 4-5. S1 Case, Semi-Flush Mounting, Panel Cutting Diagram Figure 4-6. S1 Case, Double-Ended, Projection Mounting, Outline Dimensions, Rear View 9170700990 Rev D BE1-60 Installation...
  • Page 26: Connections

    Incorrect wiring may result in damage to the relay. Except where noted, connections should be made with wire no smaller than 14 AWG. Connections for each of the six sensing types are shown in Figure 4-7. Typical output connections are shown in Figure 4-8. Figure 4-7. Sensing Input Connections BE1-60 Installation 9170700990 Rev D...
  • Page 27: Maintenance

    Figure 4-8. Typical Output Connections MAINTENANCE BE1-60 relays require no preventative maintenance other than a periodic operational check. If the relay fails to function properly, contact Technical Sales Support at Basler Electric to coordinate repairs. STORAGE This protective relay contains aluminum electrolytic capacitors which generally have a life expectancy in excess of 10 years at storage temperatures less than 40°C (104°F).
  • Page 28 This page intentionally left blank. BE1-60 Installation 9170700990 Rev D...
  • Page 29: Section 5 • Testing

    SECTION 5 • TESTING OPERATIONAL TEST PROCEDURE The following procedure verifies operation of the BE1-60 Voltage Balance Relay. Stated voltages refer to line-to-neutral for single-phase and wye inputs, and line-to-line for delta inputs. Terminal numbers may be found in Section 4, Installation. Target indicators, if present, should operate in conjunction with their corresponding output.
  • Page 30 This page intentionally left blank. BE1-60 Testing 9170700990 Rev D...
  • Page 31 ROUTE 143, BOX 269 HIGHLAND, IL 62249 USA http://www.basler.com, info@basler.com PHONE +1 618-654-2341 FAX +1 618-654-2351...
