► CONNECTIONS

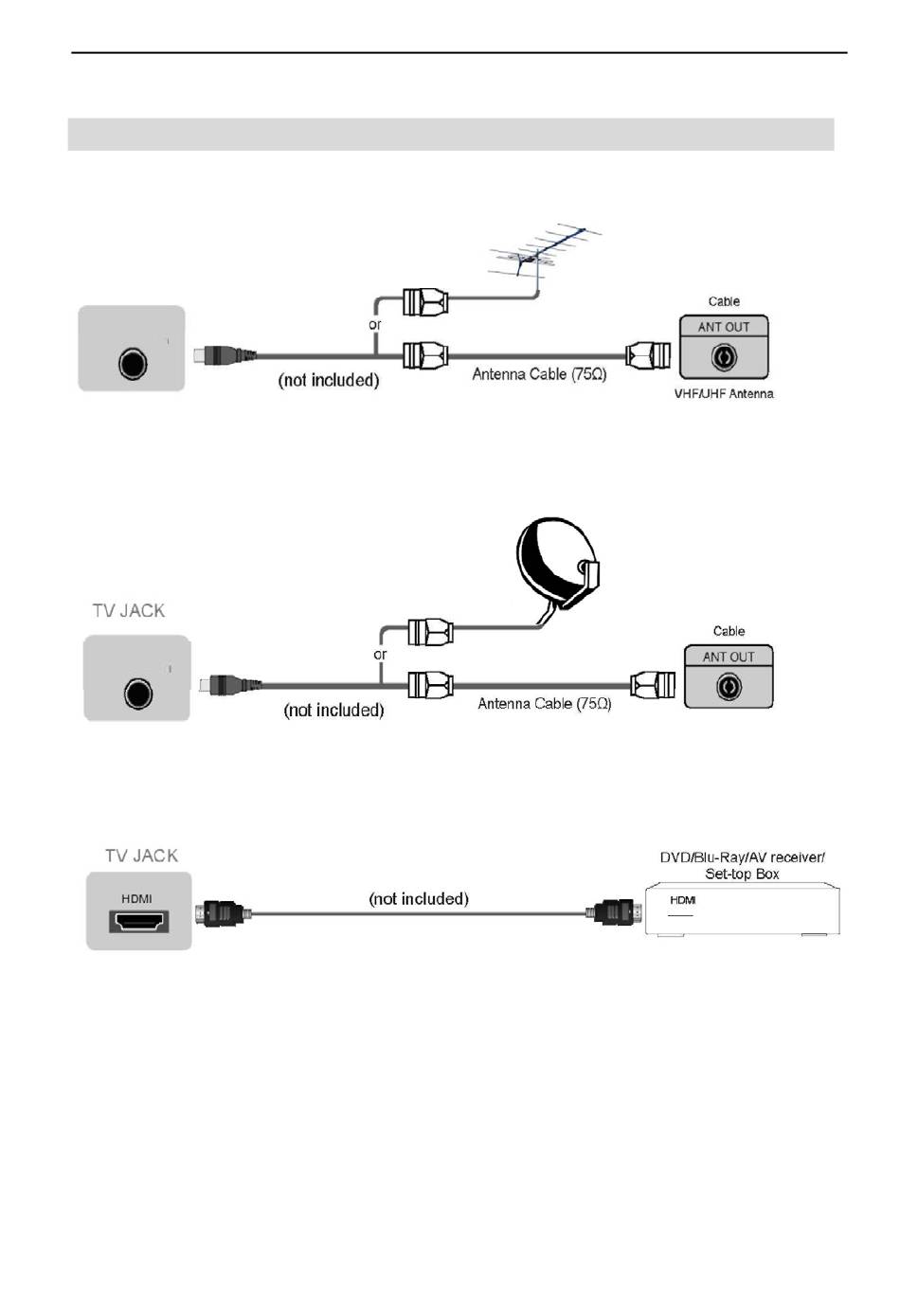

► RF IN (T2): Connect (DVB-T2) an outdoor VHF/UHF antenna or cable
RF IN (T2)
► RF IN (S2): Connect (DVB-S2) an outdoor Satellite dish or Sat. Cable
conection. (option, only models with Satellite Tuner)
RF IN (S2)
RF IN (S2)
► HDMI1, HDMI2, HDMI3 Digital connection
Connect an HDMI cable from an external A/V equipment.
Some devices such as DVD player require HDMI signal to be set to output in the
device's settings.
Please consult your device user manual for instructions. Please note that the
HDMI connector provides both video and audio signals, it's not necessary to
connect an audio cable.
• Press [INPUT] button, when the list of Input Source appears, press [▲/▼] to
select the source [HDMI], then press [OK] to connect.
Note: HDMI3 supports ARC (Audio Return Channel) function. With this function, you don't
need to connect RCA Audio cables to your Audio system.
